Name: Mach 1
SKU: DP1M
Availability: OutOfStock

Price range: 93,60 € through 228,80 €

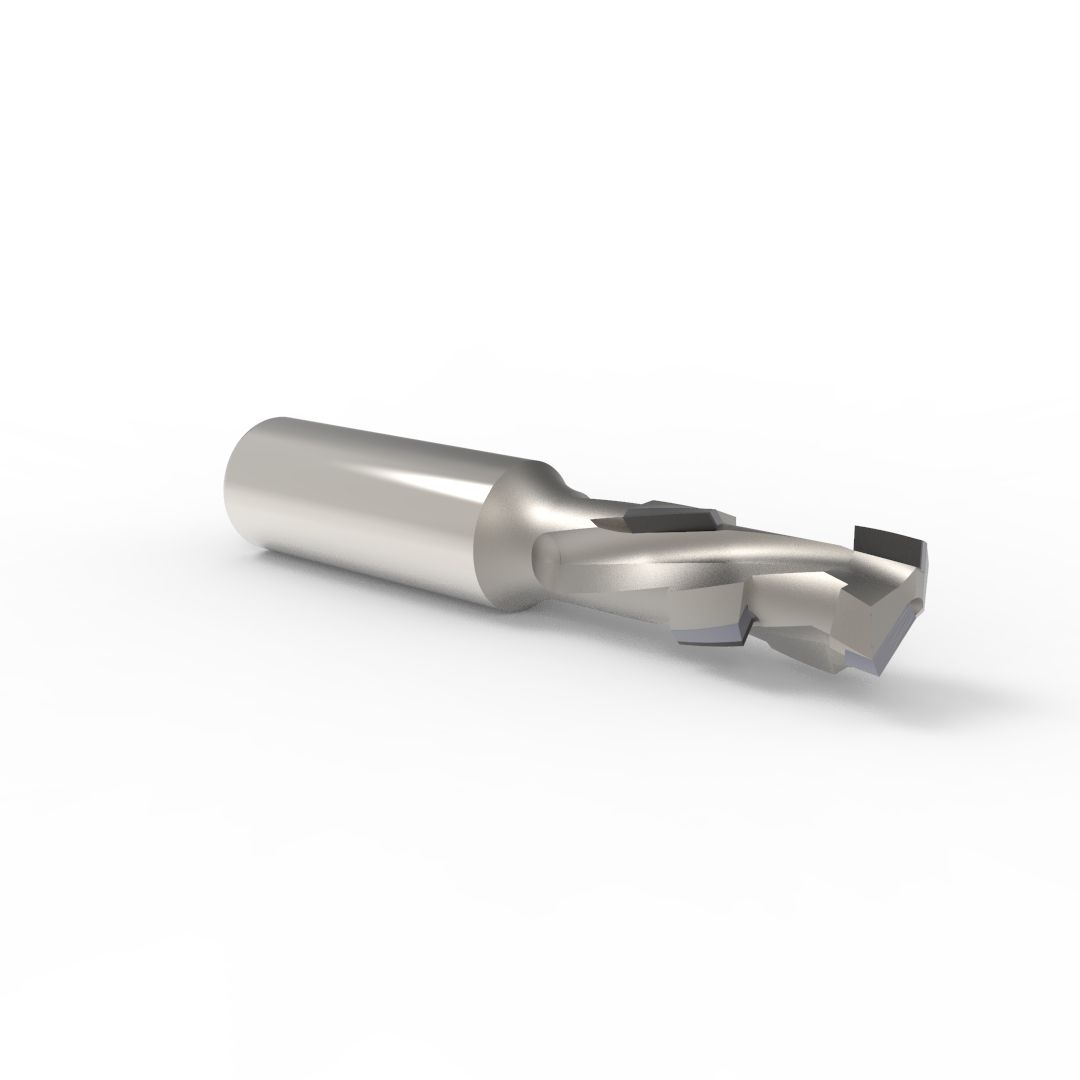

Z1+1 PCD Router

ø:10-20mm

Technical features

Feed speed: up to 6 mt/min
Shear angle:
– 12° for D up to 12,7 mm
– 16° for D 16 mm
– 18° for D 18 mm
– 20° for D 20 mm
1+1 PCD cuting edges
HW plunge tip for diagonal plunge-cutting
Steel body
Economy and performance
First tip positive (6-8 mm), all the others negative
Resharpenable router (max 2 times for D up to 12,7 and max 4 times from D 14 mm)

Applications

PCD shank-type cutter Z1+1 for jointing, rabbeting, grooving and copying in raw, melamine, paper, HPL-laminated, foiled and veneered panels

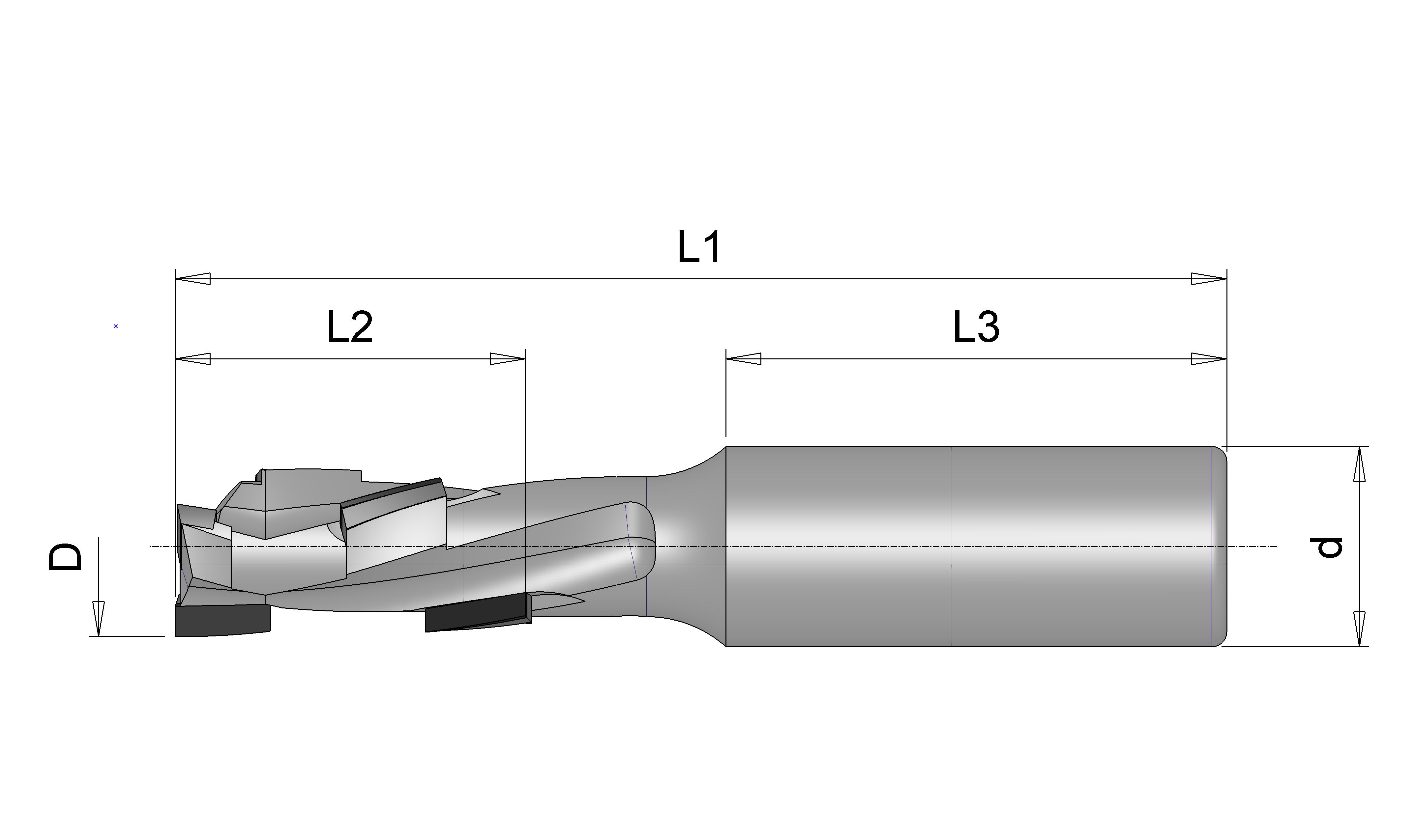

D	d	L2	L1	L3	Z	HDP	Rotation	Stock	Price	Code
12,7	12,7	25,40	70	40	1+1	2	RH	Available (2 pcs.)	93,60 €	DP1H2 01D
12,7	12,7	43	101,60	44,45	1+1	2	RH	Available (1 pcs.)	156,00 €	DP1H2 04D
14	16	25,40	75	40	1+1	3	RH	Available (27 pcs.)	114,40 €	DP1M3 26D
16	16	25,40	75	40	1+1	3	LH	Available in 4 weeks	114,40 €	DP1M3 01S
16	16	25,40	75	40	1+1	3	RH	Available (3 pcs.)	114,40 €	DP1M3 01D
16	16	35	85	40	1+1	3	LH	Available (2 pcs.)	152,54 €	DP1M3 03S
16	16	35	85	40	1+1	3	RH	Available (12 pcs.)	152,54 €	DP1M3 03D
18	20	25,40	85	50	1+1	3	LH	Available (21 pcs.)	114,40 €	DP1M3 07S
18	20	25,40	85	50	1+1	3	RH	Available (7 pcs.)	114,40 €	DP1M3 07D
18	20	28	90	50	1+1	3	LH	Available in 4 weeks	133,46 €	DP1M3 24S
18	20	28	90	50	1+1	3	RH	Available in 4 weeks	133,46 €	DP1M3 24D
18	20	35	95	50	1+1	3	LH	Available in 4 weeks	152,54 €	DP1M3 11S
18	20	35	95	50	1+1	3	RH	Available (24 pcs.)	152,54 €	DP1M3 11D
18	20	43	105	50	1+1	3	LH	Available (9 pcs.)	190,66 €	DP1M3 14S
18	20	43	105	50	1+1	3	RH	Available (5 pcs.)	190,66 €	DP1M3 14D
20	20	51	120	50	1+1	3	LH	Available (10 pcs.)	228,80 €	DP1M3 16S
20	20	51	120	50	1+1	3	RH	Available (15 pcs.)	228,80 €	DP1M3 16D
12,7	12,7	25,40	70	40	1+1	2	LH	Available in 4 weeks	93,60 €	DP1H2 01S
10	12	25,40	75	40	1+1	2	RH	Available in 4 weeks	93,60 €	DP1M2 23D
12	12	25,40	75	40	1+1	2	RH	Available (15 pcs.)	93,60 €	DP1M2 01D
12	25	25,40	90	55	1+1	2	LH	Available in 4 weeks	93,60 €	DP1M2 02S
12	25	25,40	90	55	1+1	2	RH	Available (21 pcs.)	93,60 €	DP1M2 02D
12	12	28	75	40	1+1	2	LH	Available (10 pcs.)	109,20 €	DP1M2 20S
12	12	28	75	40	1+1	2	RH	Available (12 pcs.)	109,20 €	DP1M2 20D
