Z3 MACH 3 EVO
1,00 €

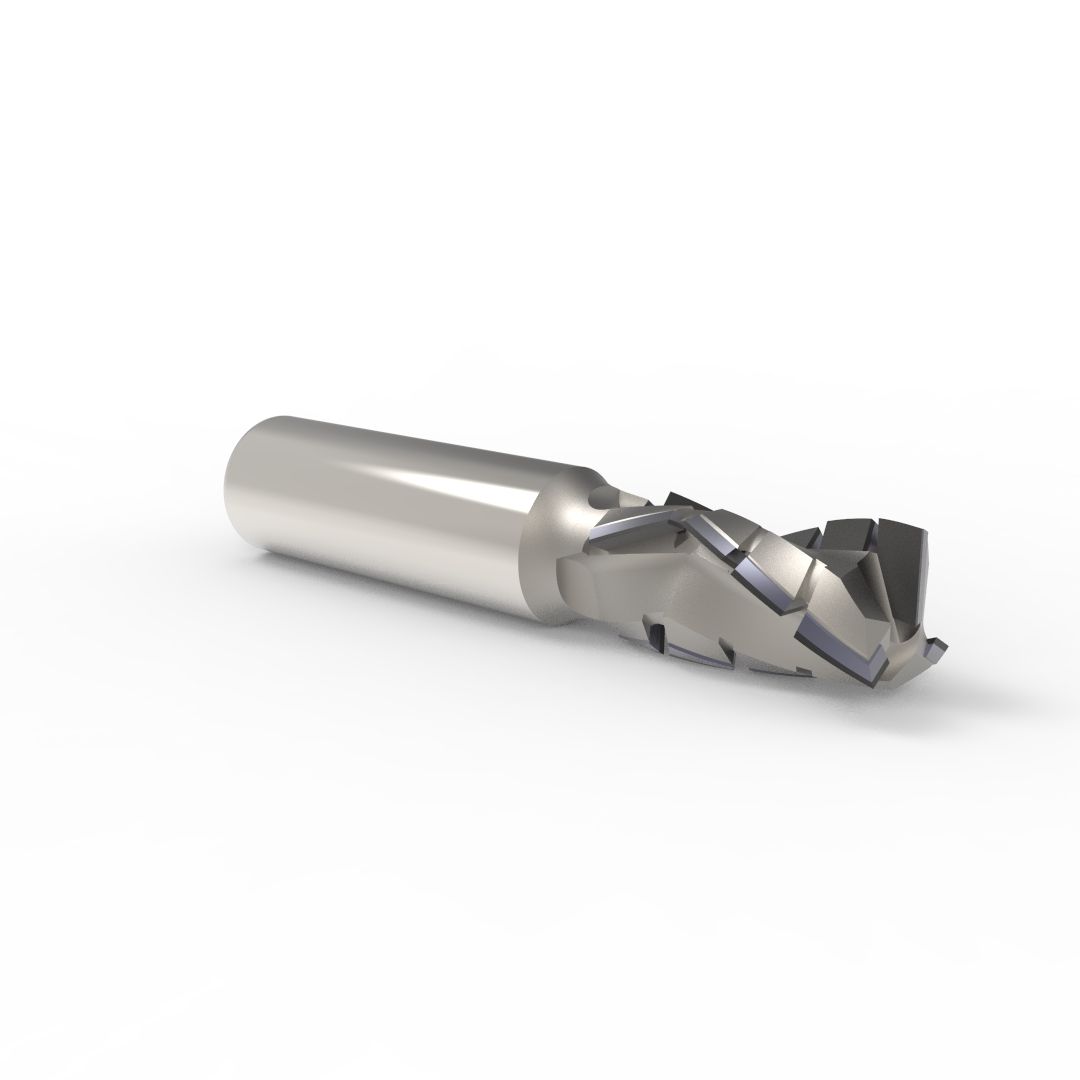

Z3+3 MACH 3 EVO Cutter with Cylindrical Shank
ø: 12-16mm
Technical features
- Feed speed: up to 25 mt/min
- Shear angle: -18° for D 12 mm.-25° for D 16 mm
- 3 PCD cutting edges
- Design: 3 flute
- tip mainly positive (L+: 5 mm less L2) for better evacuation of wooden chips
- Heavy metal body for D 12 mm; Steel body D 16mm
- Resharpenable cutter (max 4 times)
- HDP: 3
Applications
- Z3+3 MACH 3 EVO Cutter with Cylindrical Shank for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

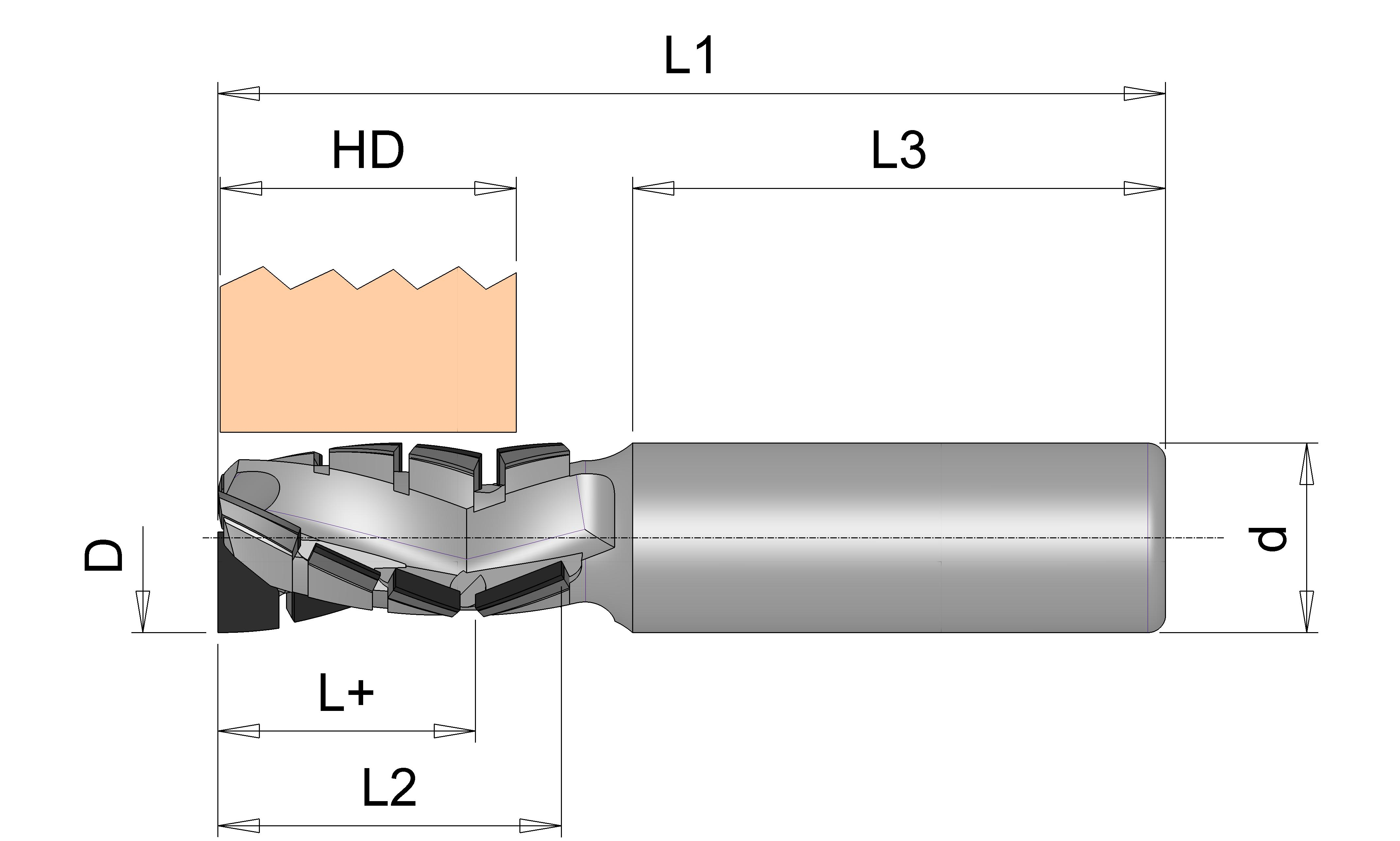

| D | d | L2 | L1 | L3 | HD | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 12 | 16 | 18,5 | 70 | 45 | 15-16 | Available (1 pcs.) | 1,00 € | AEH401D |
| 12 | 16 | 22,5 | 73 | 45 | 18-19-20 | Available (2 pcs.) | 1,00 € | AEH402D |
| 12 | 16 | 24,5 | 75 | 45 | 22 | Available in 4 weeks | 1,00 € | AEH403D |
| 12 | 16 | 27,5 | 80 | 45 | 25 | Available in 4 weeks | 1,00 € | AEH404D |
| 16 | 16 | 18,5 | 70 | 45 | 15-16 | Available (7 pcs.) | 1,00 € | AEH301D |
| 16 | 16 | 22,5 | 73 | 45 | 18-19-20 | Available (5 pcs.) | 1,00 € | AEH302D |
| 16 | 16 | 24,5 | 75 | 45 | 22 | Available in 4 weeks | 1,00 € | AEH303D |
| 16 | 16 | 27,5 | 80 | 45 | 25 | Available (5 pcs.) | 1,00 € | AEH304D |
