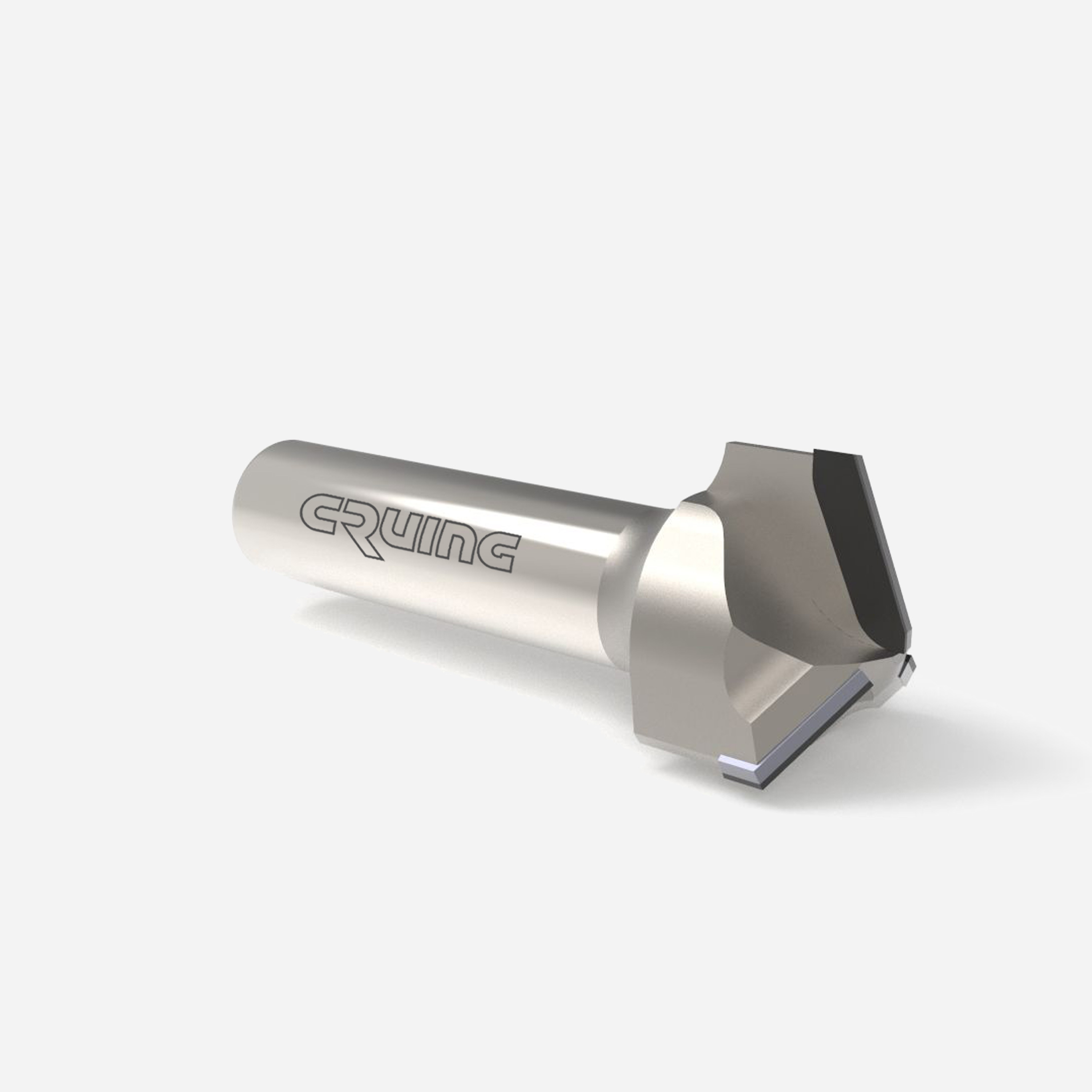

V-Groove Cutter 90°-135° DPV3
Price range: 360,54 € through 464,54 €
Groove Cutter 90°-135° with Cylindrical Shank
ø:18-32mm
Technical features
- Neutral shear angle
- 3 PCD cutting edges
- Polished face
- Steel body
- Resharpenable cutter (max 4 times)

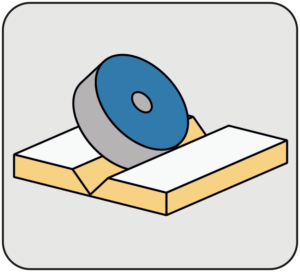

- 90° V-Groove to 90° fold
- 135° V-Groove to 45° fold
- 90° D1: 3mm; 135° D1: 2mm
Applications
- Groove Cutter 90°-135° with Cylindrical Shank for CNC routers for V-grooves in aluminium composite materials (Alucobond®, Dibond®, etc.)

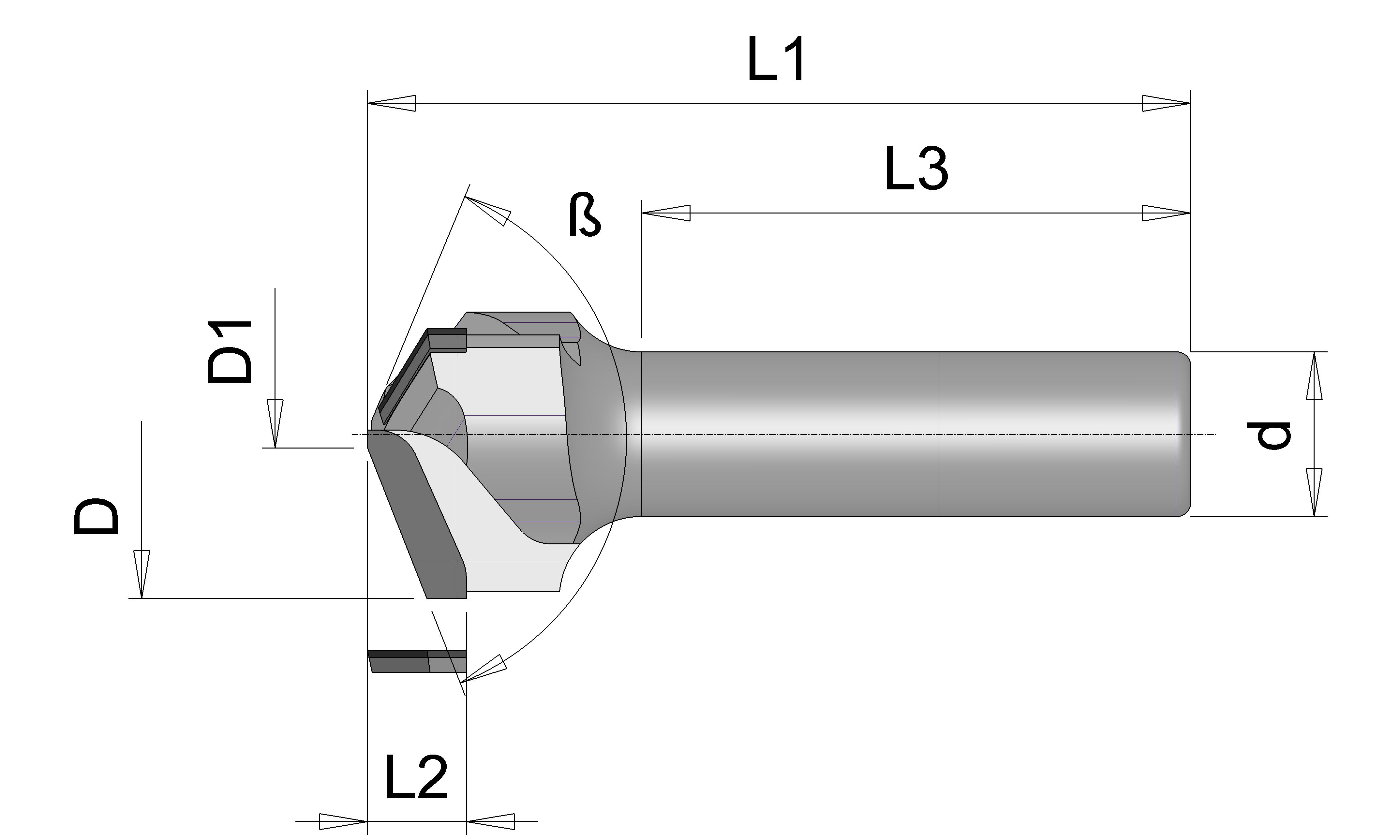

| ß | D | L2 | d | L3 | L1 | Z | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 90° | 18 | 7,5 | 12 | 40 | 60 | 3 | RH | Available in 4 weeks | 360,54 € | DPV305D |
| 135° | 32 | 6,2 | 12 | 40 | 60 | 3 | RH | Available in 4 weeks | 464,54 € | DPV310D |
