Z2 Groove Cutter
THECNICAL FEAUTURE DPO2

Z2 Groove Cutter

Price range: 249,60 € through 294,66 €

Z2 Groove Cutter with Cylindrical Shank
ø:8-16mm

Technical features
  • Straight, negative and alternate axial angles
  • Polished face

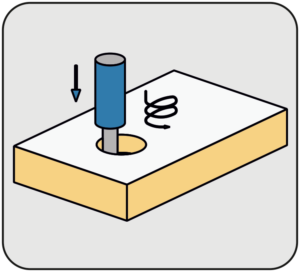

  • PCD plunge tip for diagonal plunge-cutting
  • 2 PCD cutting edge
  • Steel body; Solid carbide body for D 8, 10 mm and 12mm
  • Economy and performance
  • Resharpenable router (max 2 times for D up 12 mm and max 4 times for D 16 mm)
  • Z:2
Applications

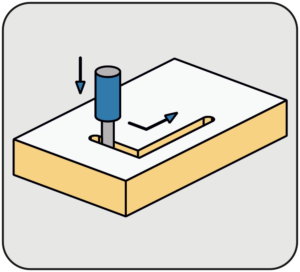

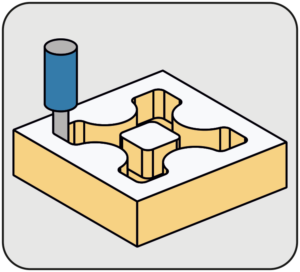

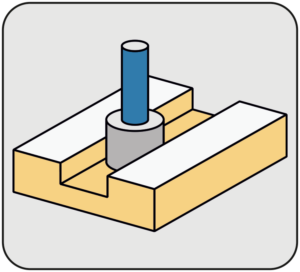

  • Z2 Groove Cutter with cylindrical Shank for CNC routers for jointing and sizing without overlap marks in wood-base panels, solid woods and plastics

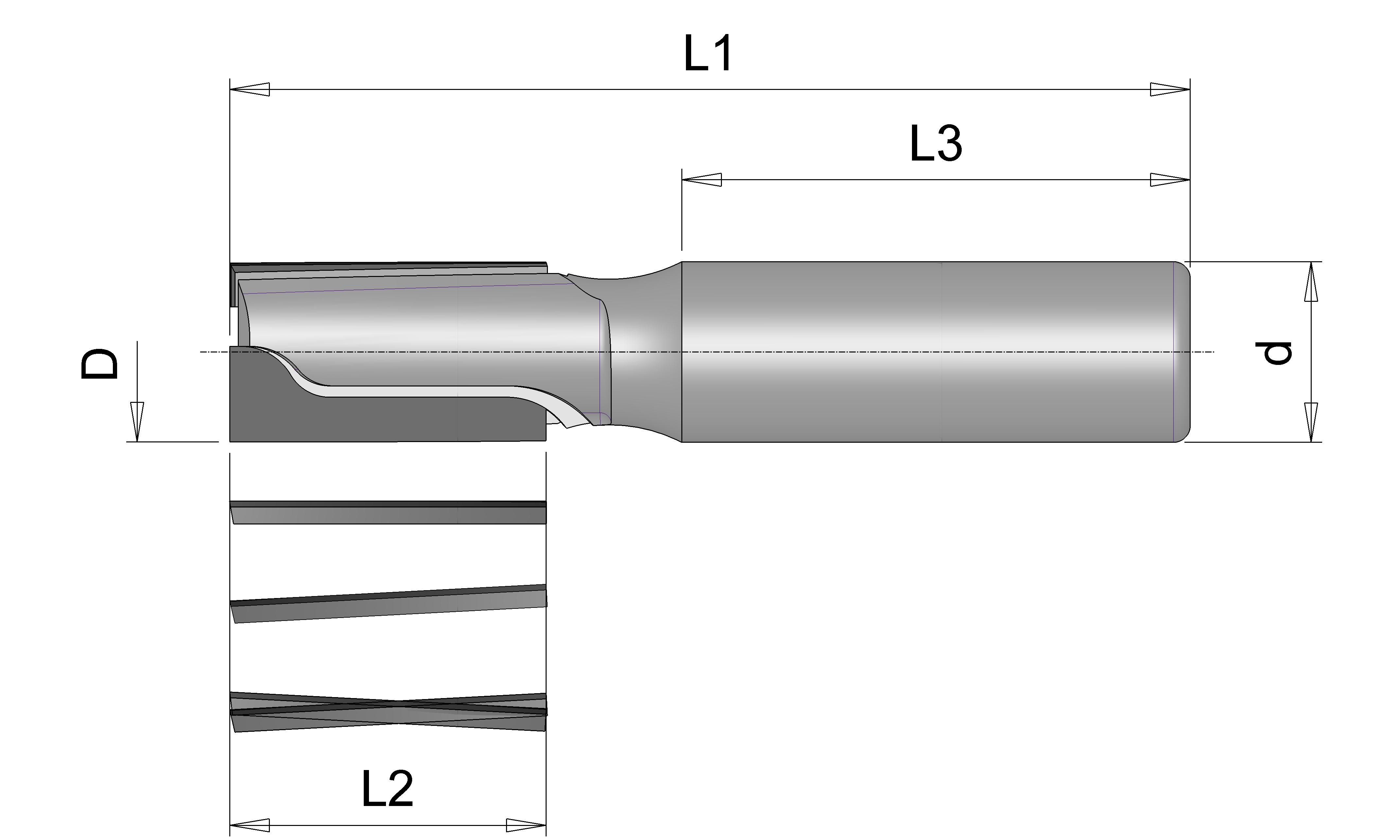

DdL2L1L3ZHDPAxial AngleRotationStockPriceCode
8.012.012.060,040,022negativeRH Available (8 pcs.)249,60 €DPO2030D
16.016.035,095,045,023straightRH Available in 4 weeks294,66 €DPO2025D
10.012.022.070,035,022negativeRH Available (6 pcs.)294,66 €DPO2035D
12.012.025,470,035,022negativeRH Available (8 pcs.)294,66 €DPO2040D
16.016.025,485,045,023negativeRH Available (6 pcs.)260,00 €DPO2045D
16.016.035,095,045,023negativeRH Available in 4 weeks294,66 €DPO2050D
8.012.012.060,040,022alternateRH Available (6 pcs.)249,60 €DPO2055D
10.012.022.070,035,022alternateRH Available (9 pcs.)294,66 €DPO2060D
12.012.025,470,035,022alternateRH Available in 4 weeks294,66 €DPO2065D
16.016.025,485,045,023alternateRH Available in 4 weeks270,00 €DPO2070D
16.016.035,095,045,023alternateRH Available in 4 weeks294,66 €DPO2075D
16.016.025,485,045,023straightRH Available in 4 weeks260,00 €DPO2020D
8.012.012.060,040,022straightRH Available (4 pcs.)249,60 €DPO2005D
10.012.022.070,035,022straightRH Available (15 pcs.)294,66 €DPO2010D
12.012.025,470,035,022straightRH Available (5 pcs.)294,66 €DPO2015D
