MACH 3 EVO AES21
Price range: 364,00 € through 651,74 €

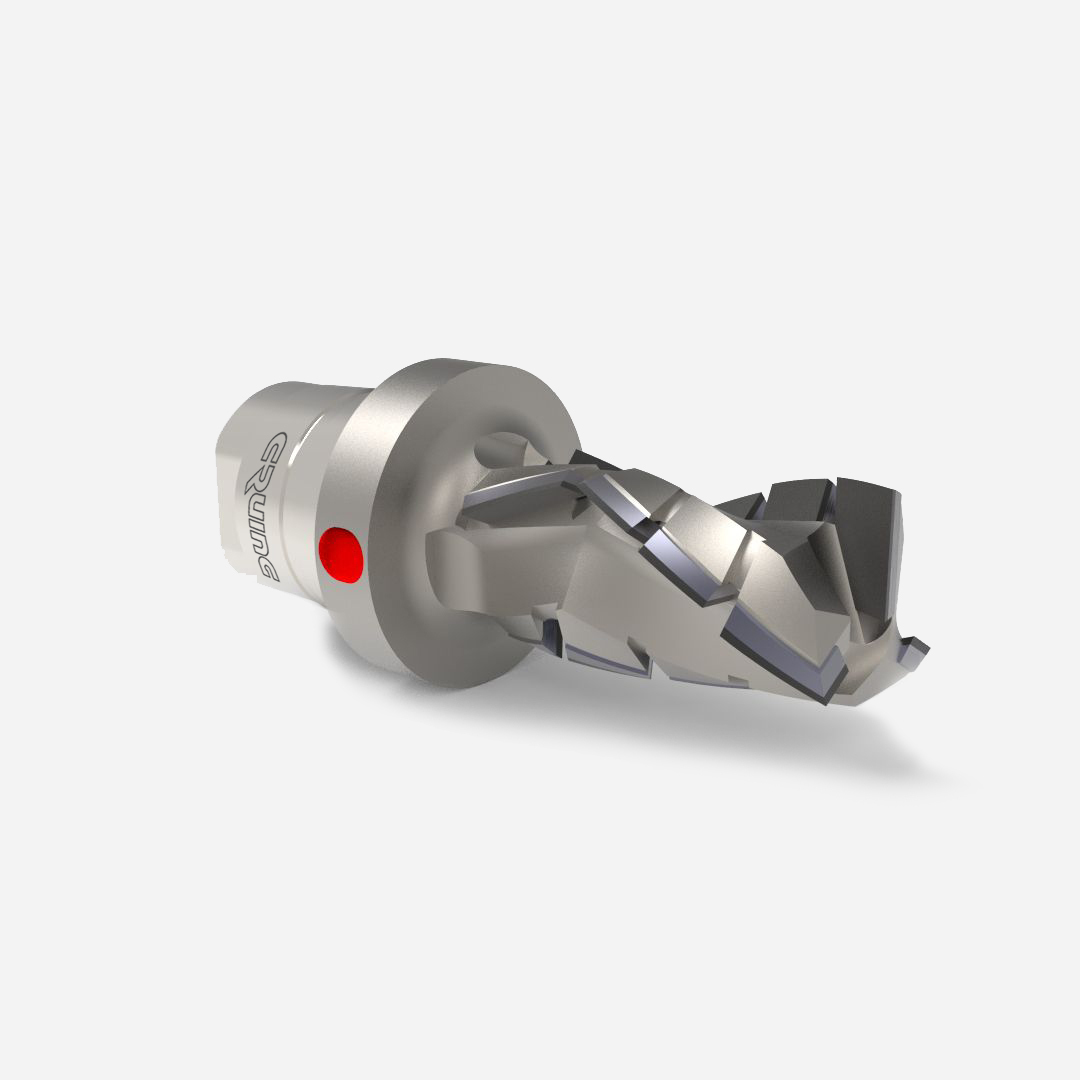

Z3+3 MACH 3 EVO Cutter with Conical Shank for Aerotech System
ø:12-16mm
Technical features
- Feed speed: up to 25 mt/min
- Shear angle:
-18° for D 12 mm;
-25° for D 16 mm - 3 PCD cutting edges
- Design: 3 flute
- Heavy metal body for D 12 mm; Steel body for D 16mm
- Tip mainly positive (L+: 5mm less L2) for better evacuation of wooden chips
- 2 conical shank types: HSK20E for Aerotech System E; HSK20C for Aerotech System
- High precision and no vibration
- Resharpenable cutter (max 4 times)
- Z:3
- HDP: 3mm
Applications
- Cutter with Conical Shank for Aerotech System for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

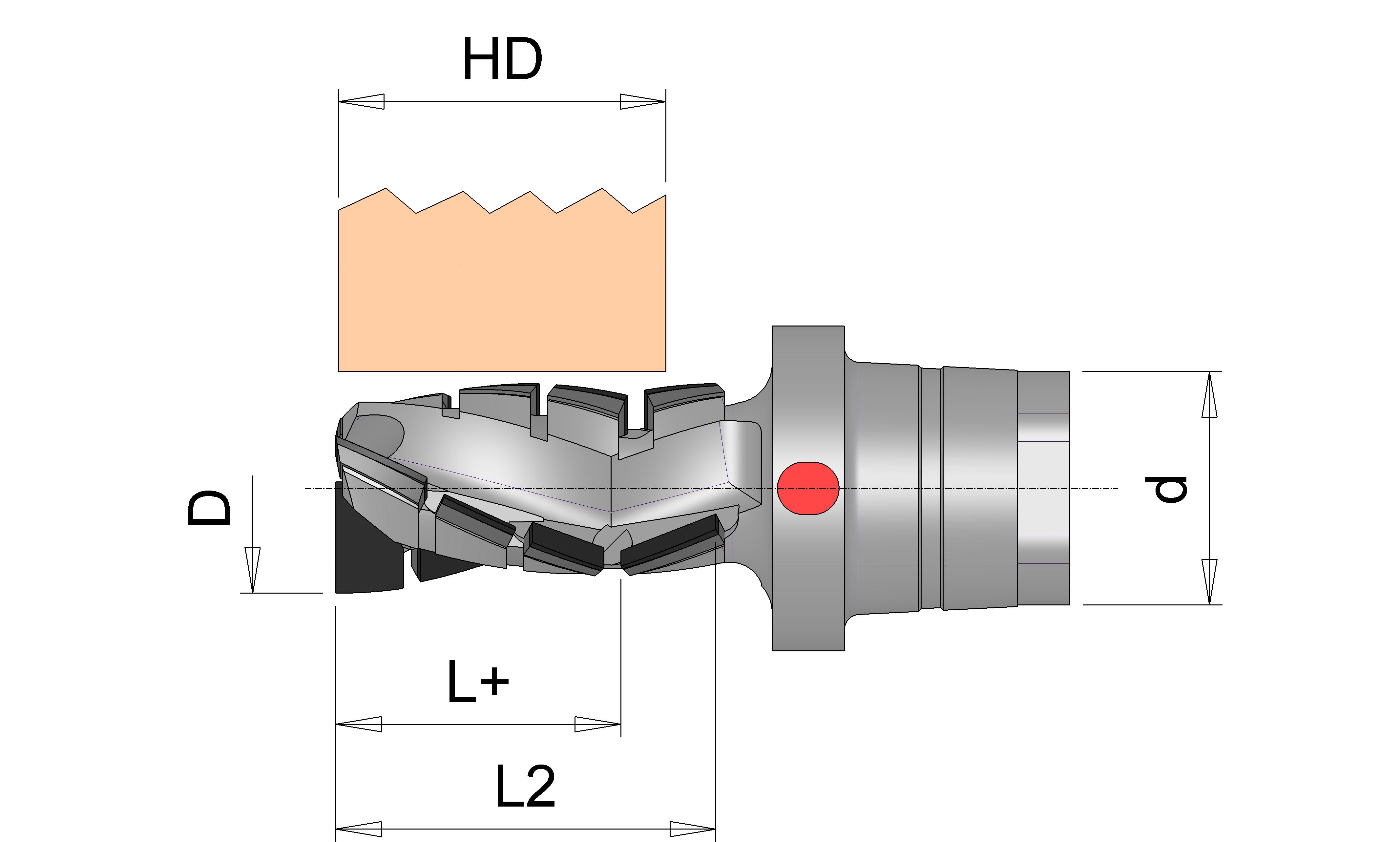

| D | HD | L2 | Z | Helical direction | Conical shank | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 12 | 19-20 | 22,5 | 3 | positive | HSK20E | Available in 4 weeks | 589,34 € | AES2123D |
| 16 | 19-20 | 22,5 | 3 | positive | HSK20E | Available (6 pcs.) | 443,74 € | AES2113D |
| 16 | 19-20 | 22,5 | 3 | positive | HSK20C | Available (3 pcs.) | 443,74 € | AES2103D |
| 16 | 22 | 24,5 | 3 | positive | HSK20E | Available in 4 weeks | 443,74 € | AES2114D |
| 16 | 22 | 24,5 | 3 | positive | HSK20C | Available in 4 weeks | 443,74 € | AES2104D |
| 16 | 25 | 27,5 | 3 | positive | HSK20E | Available in 4 weeks | 492,26 € | AES2115D |
| 16 | 25 | 27,5 | 3 | positive | HSK20C | Available (2 pcs.) | 492,26 € | AES2105D |
| 12 | 15-16 | 18,5 | 3 | positive | HSK20E | Available in 4 weeks | 485,34 € | AES2121D |
| 12 | 18 | 20,5 | 3 | positive | HSK20E | Available in 4 weeks | 547,74 € | AES2122D |
| 12 | 22 | 24,5 | 3 | positive | HSK20E | Available in 4 weeks | 589,34 € | AES2124D |
| 12 | 25 | 27,5 | 3 | positive | HSK20E | Available in 4 weeks | 651,74 € | AES2125D |
| 16 | 15-16 | 18,5 | 3 | positive | HSK20E | Available in 4 weeks | 364,00 € | AES2111D |
| 16 | 15-16 | 18,5 | 3 | positive | HSK20C | Available in 4 weeks | 364,00 € | AES2101D |
| 16 | 18 | 20,5 | 3 | positive | HSK20E | Available in 4 weeks | 419,46 € | AES2112D |
| 16 | 18 | 20,5 | 3 | positive | HSK20C | Available in 4 weeks | 419,46 € | AES2102D |
