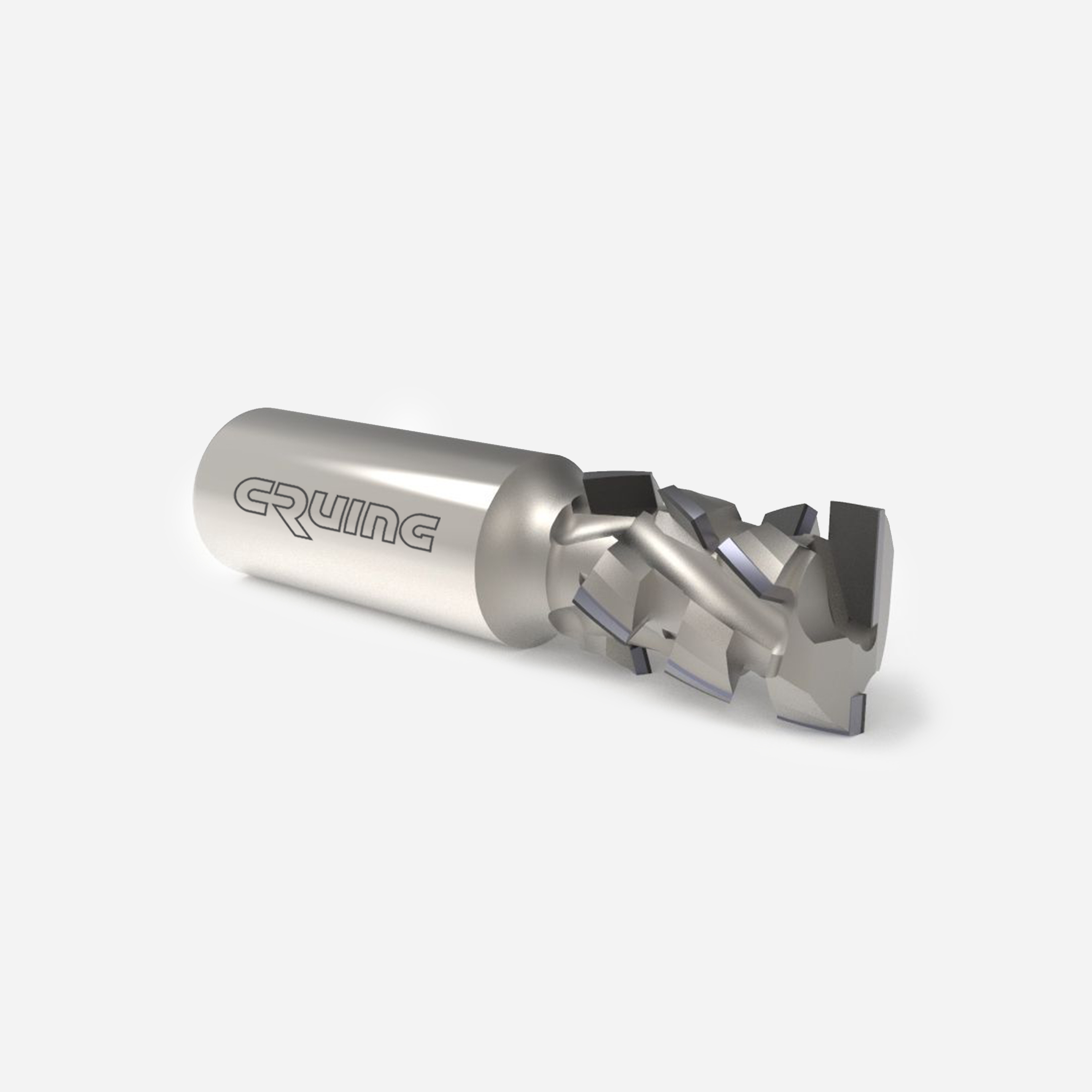

Mach 2 30° Pos
Price range: 405,60 € through 1.127,01 €
Z2+2 PCD Router
ø:20-25mm
Technical features
- feed speed: up to 15 mt/min
- shear angle: 30°
- 2+2 PCD cutting edges
- Design: 4 flute
- DP plunge tip for diagonal plunge-cutting
- High performance
- Tip mainly positive (5mm less L2) for better evacuation of wooden chips
- Steel body
- Resharpenable router (max 8 times)
- HDP : 4.5 mm
Applications
- Cutter with Cylindrical Shank, tip mainly positive for better evacuation of wooden chips, cutting angle 30° steel body for CNC routers for jointing, rabbeting and copying in Particleboards, MDF boards, Laminates, HPL and veneered panels, Solid hard woods

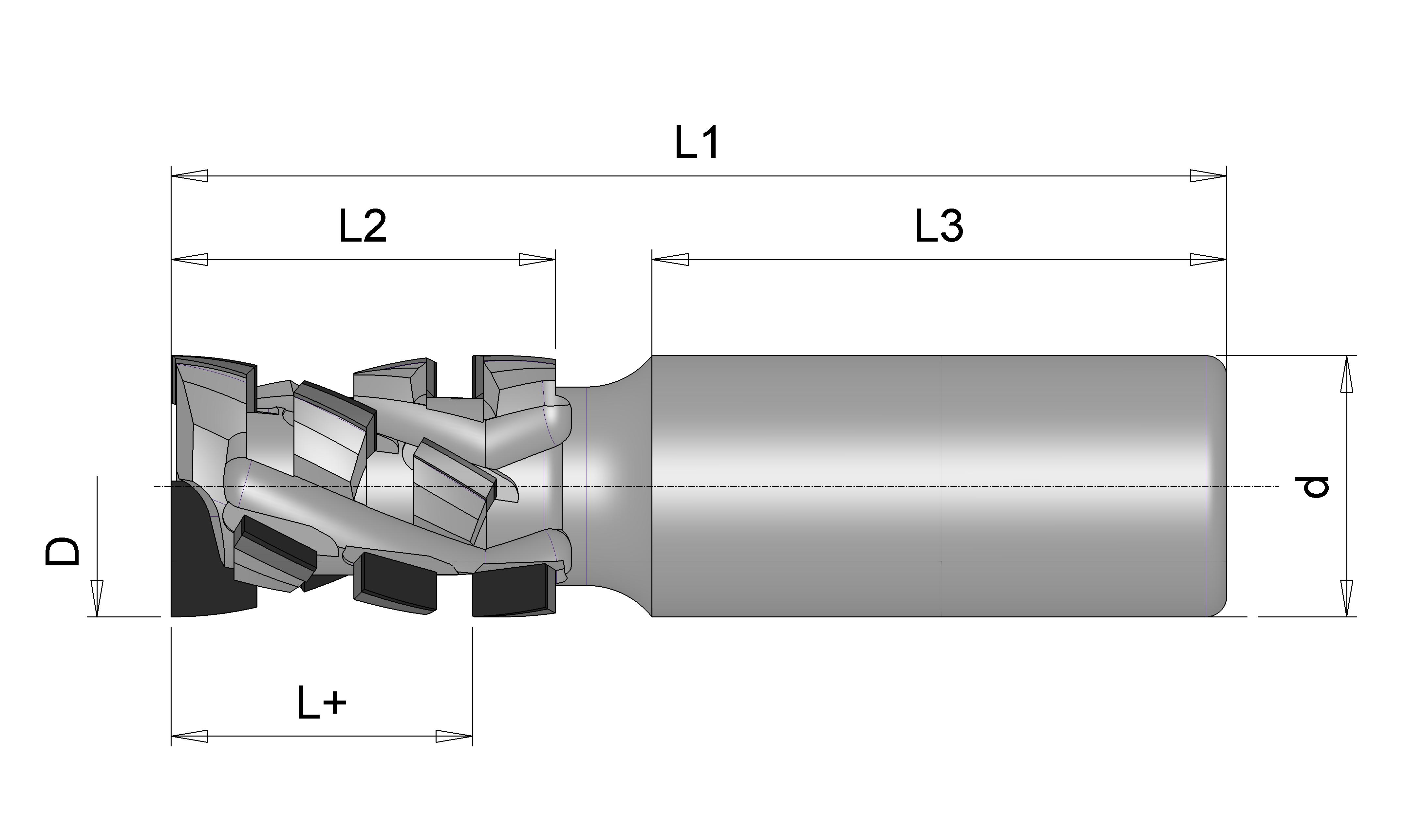

| D | d | L2 | L1 | L3 | Z | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25 | 57 | 122 | 55 | 2+2 | LH | Available in 4 weeks | 946,40 € | DP230P070S |
| 25 | 25 | 57 | 122 | 55 | 2+2 | RH | Available in 4 weeks | 946,40 € | DP230P070D |
| 25 | 25 | 63 | 128 | 55 | 2+2 | LH | Available in 4 weeks | 1.036,53 € | DP230P075S |
| 25 | 25 | 63 | 128 | 55 | 2+2 | RH | Available in 4 weeks | 1.036,53 € | DP230P075D |
| 25 | 25 | 68 | 133 | 55 | 2+2 | LH | Available in 4 weeks | 1.127,01 € | DP230P080S |
| 25 | 25 | 68 | 133 | 55 | 2+2 | RH | Available in 4 weeks | 1.127,01 € | DP230P080D |
| 25 | 25 | 52 | 117 | 55 | 2+2 | LH | Available in 4 weeks | 856,26 € | DP230P065S |
| 25 | 25 | 52 | 117 | 55 | 2+2 | RH | Available in 4 weeks | 856,26 € | DP230P065D |
| 20 | 20 | 25 | 85 | 50 | 2+2 | LH | Available in 4 weeks | 405,60 € | DP230P005S |
| 20 | 20 | 25 | 85 | 50 | 2+2 | RH | Available (4 pcs.) | 405,60 € | DP230P005D |
| 20 | 20 | 36 | 96 | 50 | 2+2 | LH | Available in 4 weeks | 585,86 € | DP230P015S |
| 20 | 20 | 36 | 96 | 50 | 2+2 | RH | Available in 4 weeks | 585,86 € | DP230P015D |
| 20 | 20 | 41 | 101 | 50 | 2+2 | LH | Available in 4 weeks | 676,00 € | DP230P020S |
| 20 | 20 | 41 | 101 | 50 | 2+2 | RH | Available in 4 weeks | 676,00 € | DP230P020D |
| 22 | 20 | 36 | 96 | 50 | 2+2 | LH | Available in 4 weeks | 585,86 € | DP230P035S |
| 22 | 20 | 36 | 96 | 50 | 2+2 | RH | Available (2 pcs.) | 585,86 € | DP230P035D |
| 22 | 20 | 47 | 107 | 50 | 2+2 | LH | Available in 4 weeks | 766,14 € | DP230P040S |
| 22 | 20 | 47 | 107 | 50 | 2+2 | RH | Available in 4 weeks | 766,14 € | DP230P040D |
| 22 | 20 | 52 | 112 | 50 | 2+2 | LH | Available in 4 weeks | 856,26 € | DP230P045S |
| 22 | 20 | 52 | 112 | 50 | 2+2 | RH | Available in 4 weeks | 856,26 € | DP230P045D |
| 25 | 25 | 41 | 106 | 55 | 2+2 | LH | Available in 4 weeks | 676,00 € | DP230P055S |
| 25 | 25 | 41 | 106 | 55 | 2+2 | RH | Available in 4 weeks | 676,00 € | DP230P055D |
| 25 | 25 | 47 | 112 | 55 | 2+2 | LH | Available in 4 weeks | 766,14 € | DP230P060S |
| 25 | 25 | 47 | 112 | 55 | 2+2 | RH | Available in 4 weeks | 766,14 € | DP230P060D |
