AES4H
Price range: 253,06 € through 260,00 €

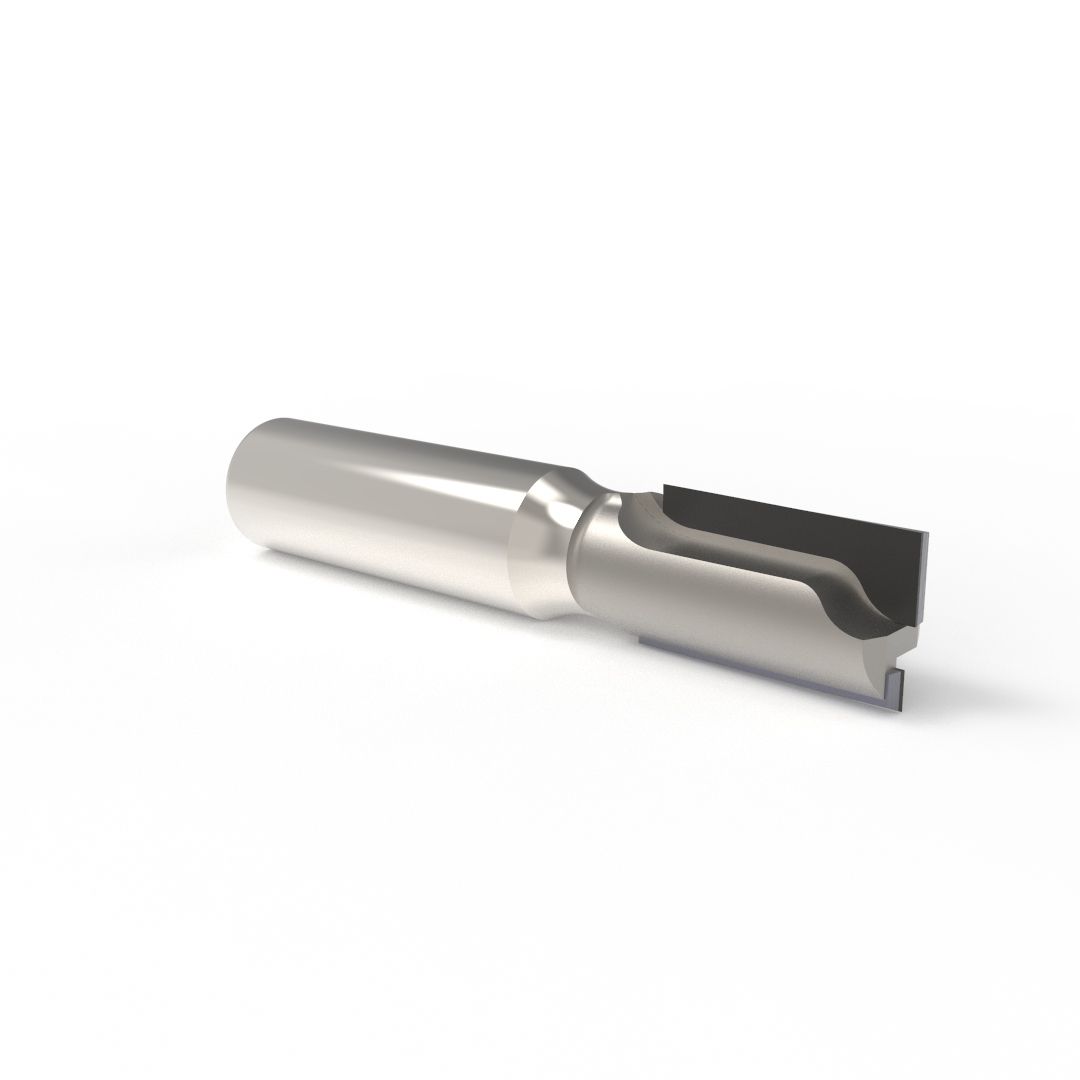

Z2 Straight-edge Cutter with Cylindrical Shank
ø:16mm
Technical features
- Feed speed: up to 12 mt/min
- Alternate axial angle
- 2 PCD cutting edges
- Design: 2 flute
- Economy and performance
- Steel body
- Resharpenable cutter (max 3-4 times)
Applications
- Straight-edge Cutter with Cylindrical Shank for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

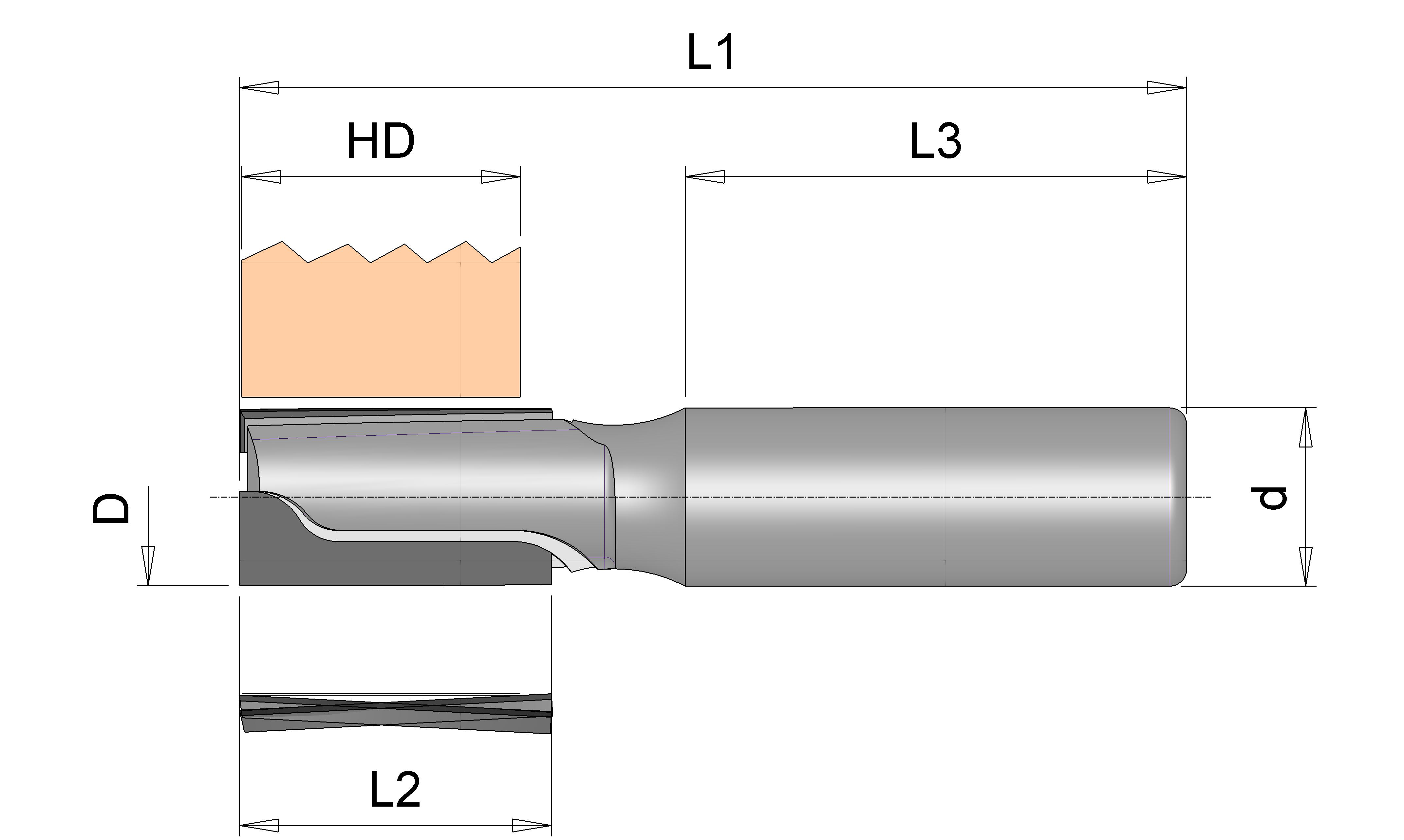

| D | d | L2 | L1 | L3 | Z | HDP | HD | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 16 | 22 | 66 | 40 | 2 | 4,0 | 15-16-18 | Available in 4 weeks | 253,06 € | AES52 |
| 16 | 16 | 24 | 70 | 40 | 2 | 4,0 | 19-20-22 | Available in 4 weeks | 260,00 € | AES54 |
