PCD Jointing Cutters 54°
Price range: 1.560,00 € through 7.439,46 €
PCD Jointing cutters progressively adjustable – two-part
ø:80-200mm
Technical features
- 54° shear angle geometry for high quality edge finish, reduced cutting pressure and low noise
- “Easy Flow” gullets for optimized chip removal and reduced machine malfunctions
- Symmetrical designs
- Two-part adjustable via spacers
- Left and Right hand rotations
- Resharpenable cutter (max 6-8 times)
- n.max:
-23000 up to D 80
-18000 up to D 100
-15000 up to D 125
-10000 up to D 180
-9000 up to 200 - n.max:
-23000 up to D 80
-18000 up to D 100
-15000 up to D 125
-10000 up to D 180
-9000 up to 200 - Diameters: From 80 to 200mm
Applications
- PCD Jointing Cutter for chip-free high-perfomance jointing and dividing of panels. Perfect suitable for laser-edge-technology

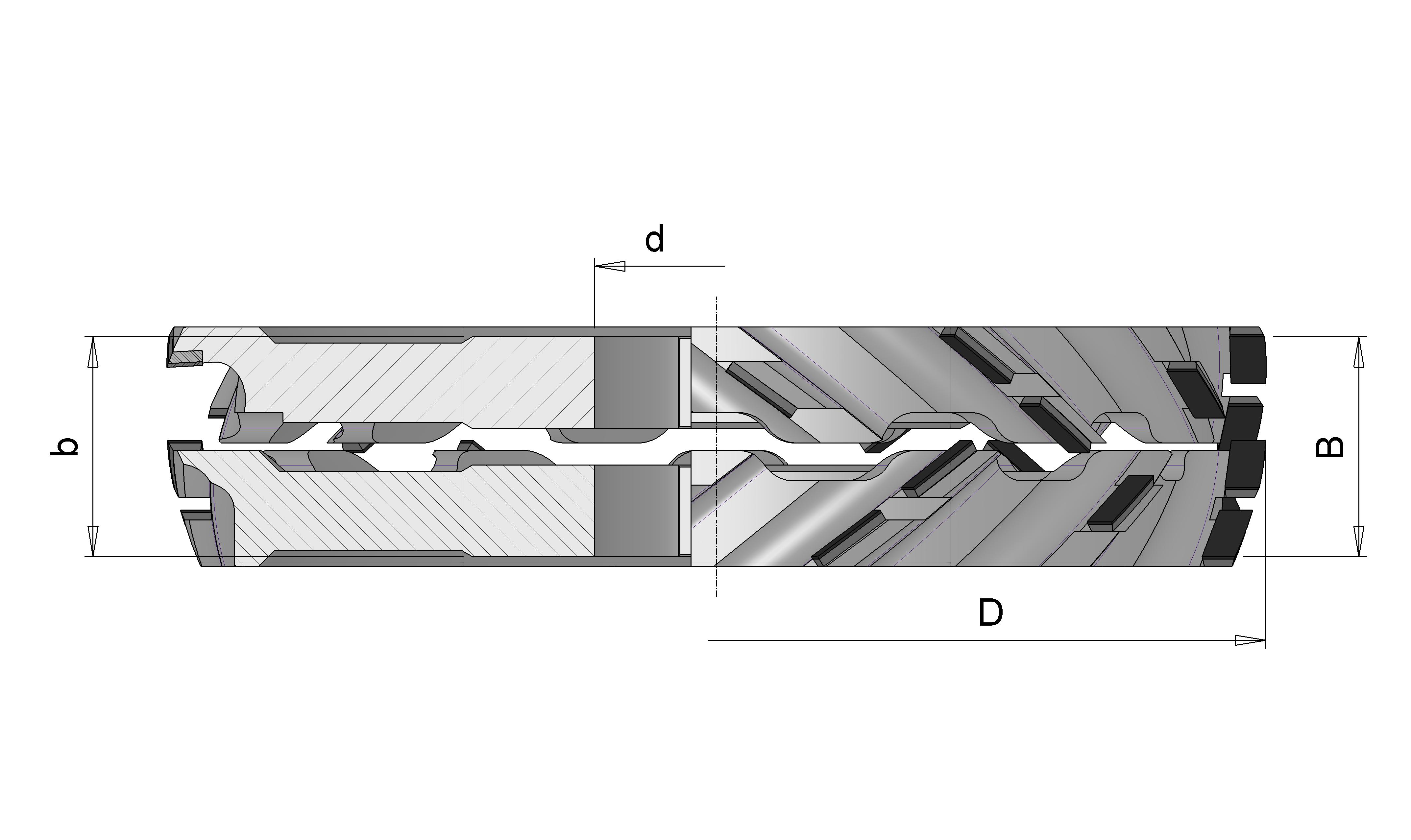

| D | B | b | Z | d | DKN | n.max | HDP | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 1.560,00 € | DSA54005S |
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 1.560,00 € | DSA54005D |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.069,60 € | DSA54010S |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.069,60 € | DSA54010D |
| 80 | 34/40 | 40 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.579,20 € | DSA54015S |
| 80 | 34/40 | 40 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.579,20 € | DSA54015D |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 3.085,34 € | DSA54020S |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 3.085,34 € | DSA54020D |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 1.580,80 € | DSA54025S |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 1.580,80 € | DSA54025D |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.086,94 € | DSA54030S |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.086,94 € | DSA54030D |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.596,94 € | DSA54035S |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.596,54 € | DSA54035D |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 3.106,14 € | DSA54040S |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 3.106,14 € | DSA54040D |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 1.605,06 € | DSA54045S |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 1.605,06 € | DSA54045D |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.114,66 € | DSA54050S |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.114,66 € | DSA54050D |
| 125 | 34/40 | 40 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.620,80 € | DSA54055S |
| 125 | 34/40 | 40 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.620,80 € | DSA54055D |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 3.130,40 € | DSA54060S |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 3.130,40 € | DSA54060D |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.676,26 € | DSA54065S |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.676,26 € | DSA54065D |
| 180 | 29/35 | 35 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 3.695,46 € | DSA54070S |
| 180 | 29/35 | 35 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 3.695,46 € | DSA54070D |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.714,66 € | DSA54075S |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.714,66 € | DSA54075D |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 5.817,06 € | DSA54080S |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 5.817,06 € | DSA54080D |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 2.676,26 € | DSA54085S |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.676,26 € | DSA54085D |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 3.695,46 € | DSA54090S |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 3.695,46 € | DSA54090D |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.714,66 € | DSA54095S |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.714,66 € | DSA54095D |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 5.817,06 € | DSA54100S |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 5.817,06 € | DSA54100D |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 3.355,74 € | DSA54105S |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 3.355,74 € | DSA54105D |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.714,66 € | DSA54110S |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.714,66 € | DSA54110D |
| 180 | 34/40 | 40 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 6.070,14 € | DSA54115S |
| 180 | 34/40 | 40 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 6.070,14 € | DSA54115D |
| 180 | 39/45 | 45 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 7.429,06 € | DSA54120S |
| 180 | 39/45 | 45 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 7.429,06 € | DSA54120D |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 3.355,74 € | DSA54125S |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 3.355,74 € | DSA54125D |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.714,66 € | DSA54130S |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.714,66 € | DSA54130D |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 6.070,14 € | DSA54135S |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 6.070,14 € | DSA54135D |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 7.429,06 € | DSA54140S |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 7.429,06 € | DSA54140D |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 2.697,06 € | DSA54145S |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 2.697,06 € | DSA54145D |
| 200 | 29/35 | 35 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 3.716,26 € | DSA54150S |
| 200 | 29/35 | 35 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 3.716,26 € | DSA54150D |
| 200 | 34/40 | 40 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.732,00 € | DSA54155S |
| 200 | 34/40 | 40 | 6+6 | 35 | 10X4 | 23000 | 5,7 | RH | Available in 4 weeks | 4.732,00 € | DSA54155D |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 5.751,20 € | DSA54160S |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 5.751,20 € | DSA54160D |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.697,06 € | DSA54165S |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.697,06 € | DSA54165D |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 3.716,26 € | DSA54170S |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 3.716,26 € | DSA54170D |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.732,00 € | DSA54175S |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 4.732,00 € | DSA54175D |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 5.751,20 € | DSA54180S |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 5.751,20 € | DSA54180D |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 3.376,54 € | DSA54185S |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 3.376,54 € | DSA54185D |
| 200 | 29/35 | 35 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.732,00 € | DSA54190S |
| 200 | 29/35 | 35 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.732,00 € | DSA54190D |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 6.080,54 € | DSA54195S |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 6.080,54 € | DSA54195D |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 7.439,46 € | DSA54200S |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 7.439,46 € | DSA54200D |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 3.376,54 € | DSA54205S |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 3.376,54 € | DSA54205D |
| 200 | 29/35 | 35 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.732,00 € | DSA54210S |
| 200 | 29/35 | 35 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 4.732,00 € | DSA54210D |
| 200 | 34/40 | 40 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 6.080,54 € | DSA54215S |
| 200 | 34/40 | 40 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 6.080,54 € | DSA54215D |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 7.439,46 € | DSA54220S |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 7.439,46 € | DSA54220D |
