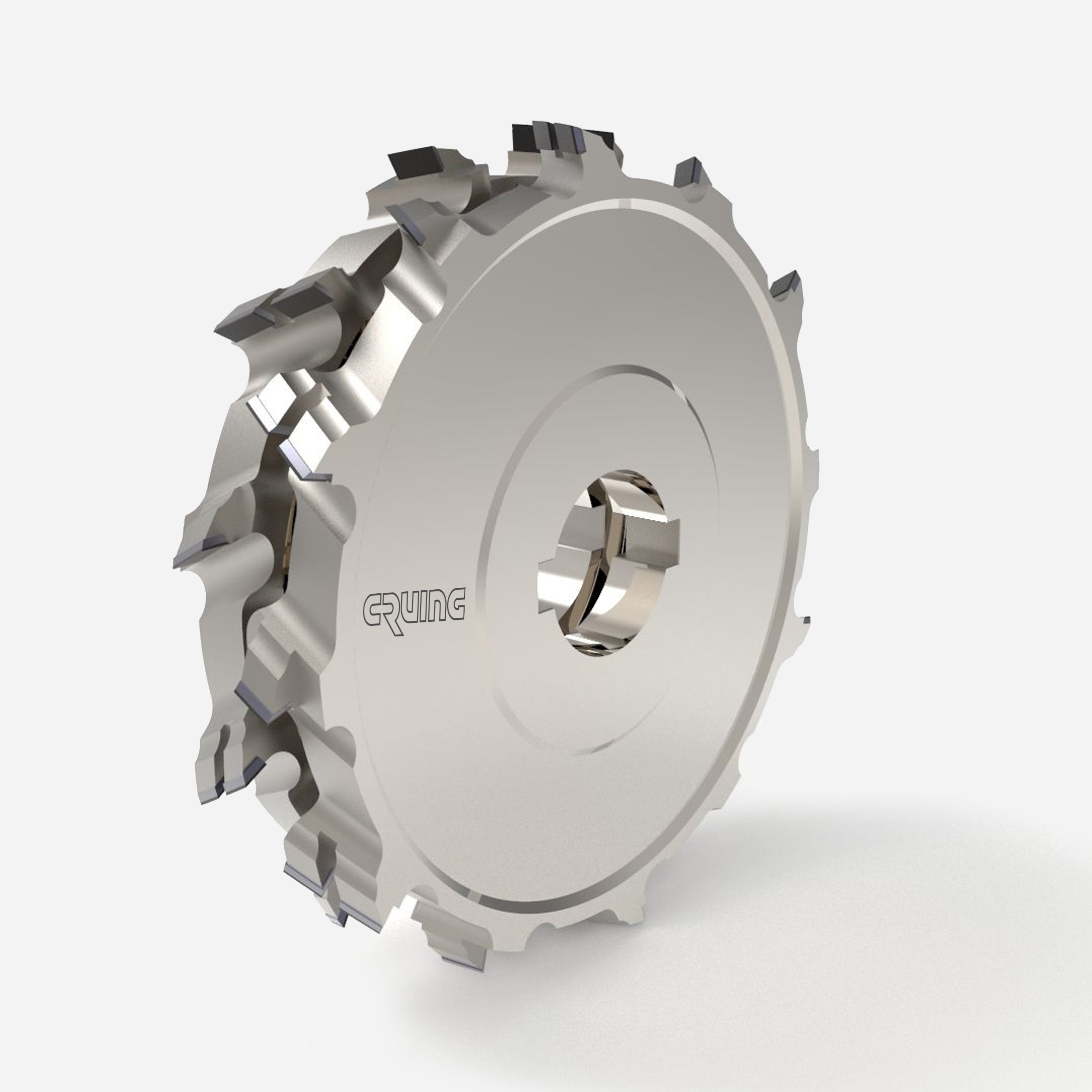

PCD Jointing Cutters 30°
Price range: 1.279,20 € through 5.584,80 €
PCD Jointing cutters progressively adjustable – two-part
ø:80-200mm
Technical features
- 30° shear angle geometry for high quality edge finish, reduced cutting pressure and low noise
- “Easy Flow” gullets for optimized chip removal and reduced machine malfunctions
- Symmetrical designs
- Two-part adjustable via spacers
- Left and right hand rotations
- Resharpenable cutter (max 6-8 times)
- d=30 DKN 8×4; d=35 DKN 10×4; d=40 DKN 12×5
- n.max:
-23000 up to D 80
-18000 up to D 100
-15000 up to D 125
-10000 up to D 180
-9000 up to 200 - Diameters: From 80 to 200mm
Applications
- PCD Jointing Cutter for chip-free jointing of panels. Perfect edgebanding operations for parts with seamless edge

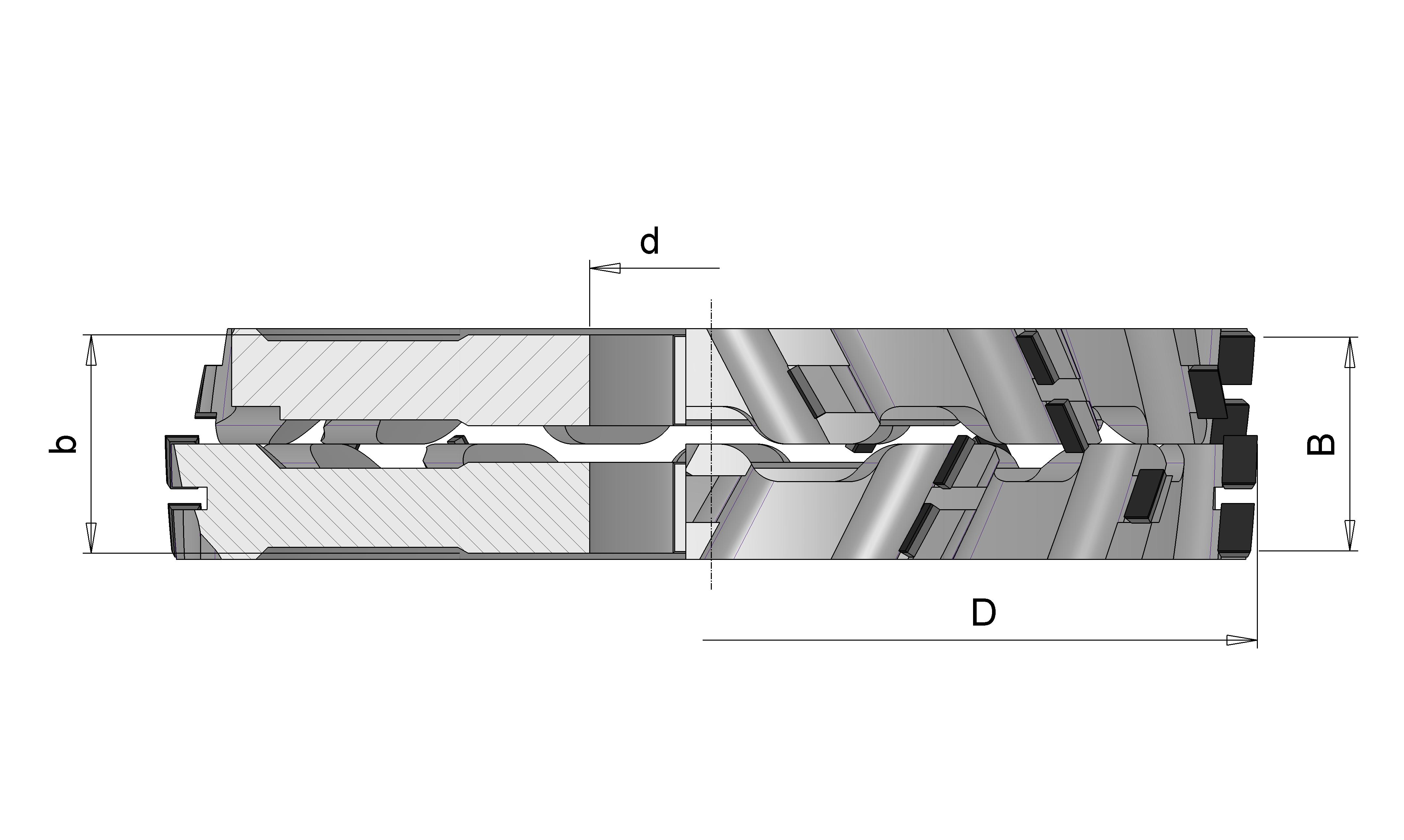

| D | B | b | Z | d | DKN | n.max | HDP | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 1.279,20 € | DSA30005S |
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 1.279,20 € | DSA30005D |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 1.650,14 € | DSA30010S |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 1.650,14 € | DSA30010D |
| 80 | 34/40 | 40 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.017,60 € | DSA30015S |
| 80 | 34/40 | 40 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.017,60 € | DSA30015D |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.388,54 € | DSA30020S |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.388,54 € | DSA30020D |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 1.300,00 € | DSA30025S |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 1.300,00 € | DSA30025D |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 1.667,46 € | DSA30030S |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 1.667,46 € | DSA30030D |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.038,40 € | DSA30035S |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.038,40 € | DSA30035D |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.409,34 € | DSA30040S |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.409,34 € | DSA30040D |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 1.324,26 € | DSA30045S |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 1.324,26 € | DSA30045D |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 1.695,20 € | DSA30050S |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 1.695,20 € | DSA30050D |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.062,66 € | DSA30055S |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.062,66 € | DSA30055D |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.433,60 € | DSA30060S |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.433,60 € | DSA30060D |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.118,14 € | DSA30065S |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.118,14 € | DSA30065D |
| 180 | 29/35 | 35 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.856,54 € | DSA30070S |
| 180 | 29/35 | 35 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.856,54 € | DSA30070D |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 3.594,94 € | DSA30075S |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 3.594,94 € | DSA30075D |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.333,34 € | DSA30080S |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.333,34 € | DSA30080D |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 2.118,14 € | DSA30085S |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.118,14 € | DSA30085D |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 2.856,54 € | DSA30090S |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.856,54 € | DSA30090D |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 3.594,94 € | DSA30095S |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 3.594,94 € | DSA30095D |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.333,34 € | DSA30100S |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.333,34 € | DSA30100D |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.610,40 € | DSA30105S |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.610,40 € | DSA30105D |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 3.594,94 € | DSA30110S |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 3.594,94 € | DSA30110D |
| 180 | 34/40 | 40 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.579,46 € | DSA30115S |
| 180 | 34/40 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.579,46 € | DSA30115D |
| 180 | 39/45 | 45 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 5.564,00 € | DSA30120S |
| 180 | 39/45 | 45 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 5.564,00 € | DSA30120D |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 2.610,40 € | DSA30125S |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.610,40 € | DSA30125D |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 3.594,94 € | DSA30130S |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 3.594,94 € | DSA30130D |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.579,76 € | DSA30135S |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.579,46 € | DSA30135D |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 5.564,00 € | DSA30140S |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.138,94 € | DSA30145D |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 2.138,94 € | DSA30150S |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 2.877,34 € | DSA30150D |
| 200 | 34/40 | 40 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 3.615,74 € | DSA30155S |
| 200 | 34/40 | 40 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 3.615,74 € | DSA30155D |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.354,14 € | DSA30160S |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.354,14 € | DSA30160D |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.138,94 € | DSA30165S |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.138,94 € | DSA30165D |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.877,34 € | DSA30170S |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.877,34 € | DSA30170D |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 3.615,74 € | DSA30175S |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 3.615,74 € | DSA30175D |
| 200 | 39/45 | 45 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.354,14 € | DSA30180S |
| 200 | 39/45 | 45 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 4.354,14 € | DSA30180D |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 2.631,20 € | DSA30185S |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 2.631,20 € | DSA30185D |
| 200 | 29/35 | 35 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 3.615,74 € | DSA30190S |
| 200 | 29/35 | 35 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 3.615,74 € | DSA30190D |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.600,26 € | DSA30195S |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.600,26 € | DSA30195D |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 5.584,80 € | DSA30200S |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 5.584,80 € | DSA30200D |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.631,20 € | DSA30205S |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.631,20 € | DSA30205D |
| 200 | 29/35 | 35 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 3.615,74 € | DSA30210S |
| 200 | 29/35 | 35 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 3.615,74 € | DSA30210D |
| 200 | 34/40 | 40 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.600,26 € | DSA30215S |
| 200 | 34/40 | 40 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 4.600,26 € | DSA30215D |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 5.584,80 € | DSA30220S |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 5.584,80 € | DSA30220D |
