PCD Jointing Cutters 54°
Price range: 1.549,60 € through 3.189,34 €

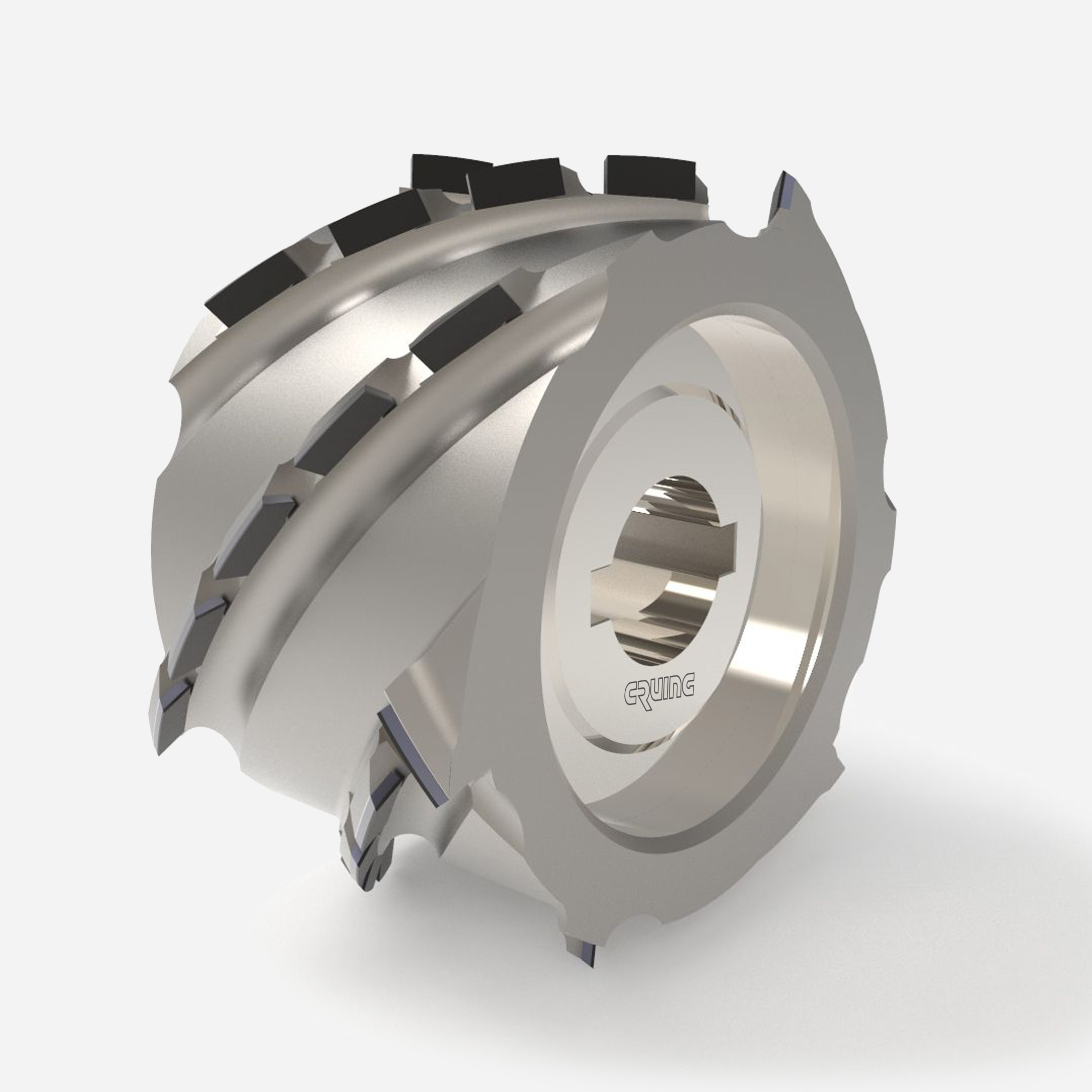

PCD Jointing Cutter 54°
ø:100-150mm
Technical features
- Specific high shear angle geometry for high quality edge finish, reduced cutting pressure and low noise
- “Easy Flow” gullets for optimized chip removal and reduced machine malfunctions
- Symmetrical and asymmetrical designs
- Left and right rotations
- Resharpenable cutter (max 6-8 times)
- d=30 DKN 8×4
- n.max:
-18000 up to D 100
-15000 up to D 125
-12000 up to D 150 - HDP: 5,7
- n.max:
-23000 up to D 80
-18000 up to D 100
-15000 up to D 125
-10000 up to D 180
-9000 up to 200
Applications
- Jointing Cutter for chip-free jointing of panels. Perfect edgebanding operations for parts with seamless edge. Specific designs for Biesse, Brandt, Homag, IMA, Holz-Her, Ott, SCM machines

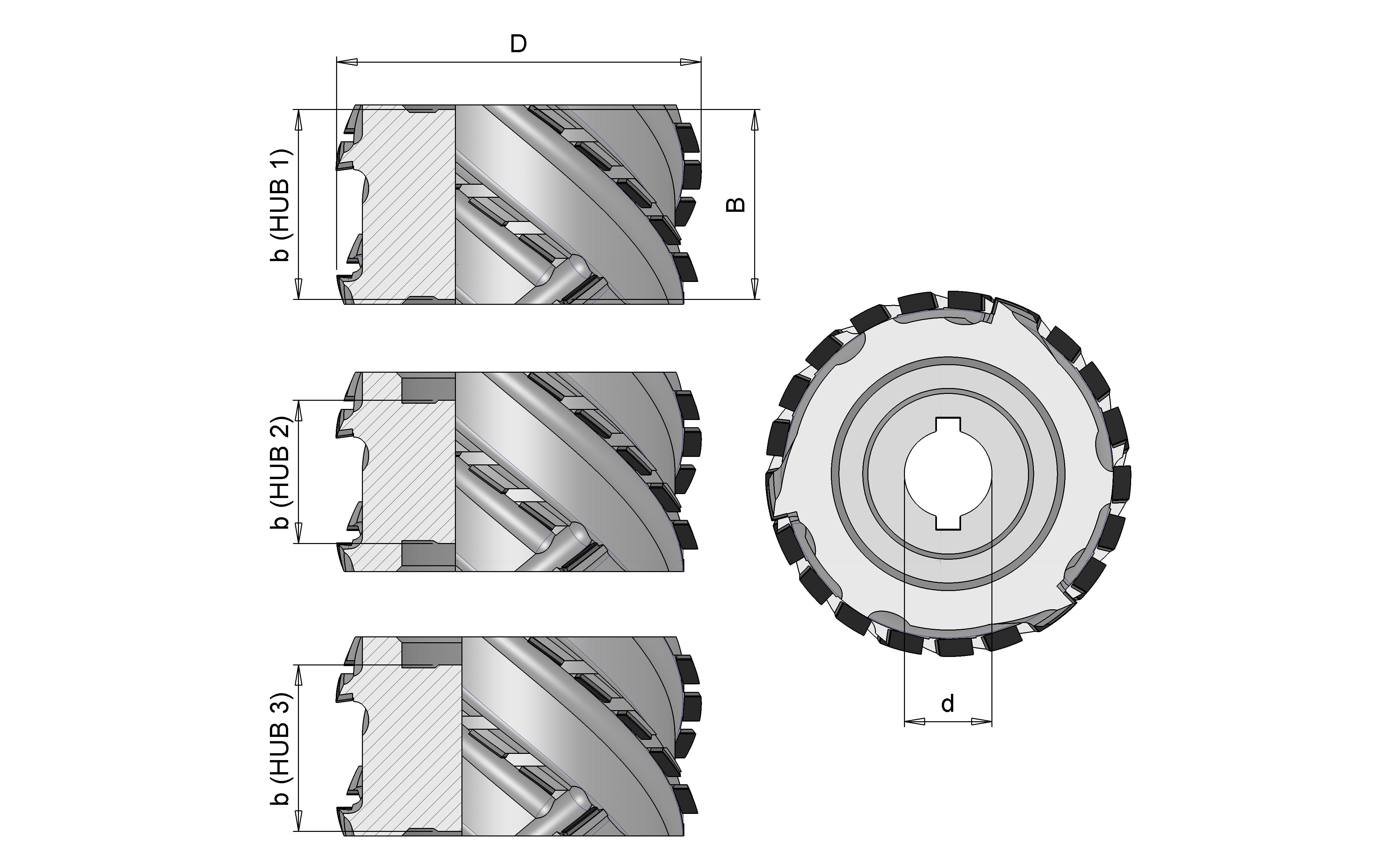

| D | B | b | Z | d | DKN | n.max | AS/S | Hub | Machine | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 45 | 47 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | IMA-BIESSE | LH | Available in 4 weeks | 2.589,60 € | DFA54220S |
| 125 | 45 | 47 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | IMA-BIESSE | LH | Available in 4 weeks | 2.589,60 € | DFA54220D |
| 125 | 45 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 3 | HOMAG-BIESSE | LH | Available in 4 weeks | 2.000,26 € | DFA54225S |
| 125 | 45 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 3 | HOMAG-BIESSE | RH | Available in 4 weeks | 2.000,26 € | DFA54225D |
| 125 | 45 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 3 | HOMAG-BIESSE | LH | Available in 4 weeks | 2.589,60 € | DFA54230S |
| 125 | 45 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 3 | HOMAG-BIESSE | RH | Available in 4 weeks | 2.589,60 € | DFA54230D |
| 125 | 48 | 50 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | BIESSE | LH | Available in 4 weeks | 2.111,20 € | DFA54235S |
| 125 | 48 | 50 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | BIESSE | RH | Available in 4 weeks | 2.111,20 € | DFA54235D |
| 125 | 48 | 50 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | BIESSE | LH | Available in 4 weeks | 2.735,20 € | DFA54240S |
| 125 | 48 | 50 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | BIESSE | RH | Available in 4 weeks | 2.735,20 € | DFA54240D |
| 125 | 48 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.111,20 € | DFA54245S |
| 125 | 48 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.111,20 € | DFA54245D |
| 125 | 48 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.735,20 € | DFA54250S |
| 125 | 48 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.735,20 € | DFA54250D |
| 125 | 65 | 49 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | BIESSE | LH | Available in 4 weeks | 2.444,00 € | DFA54265S |
| 125 | 65 | 49 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | BIESSE | RH | Available in 4 weeks | 2.444,00 € | DFA54265D |
| 125 | 65 | 49 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | BIESSE | LH | Available in 4 weeks | 3.178,94 € | DFA54270S |
| 125 | 65 | 49 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | BIESSE | RH | Available in 4 weeks | 3.178,94 € | DFA54270D |
| 125 | 65 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.444,00 € | DFA54285S |
| 125 | 65 | 40 | 3+3 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.444,00 € | DFA54285D |
| 125 | 65 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 3.178,94 € | DFA54290S |
| 125 | 65 | 40 | 4+4 | 30 | 8x4 | 15000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 3.178,94 € | DFA54290D |
| 125 | 65 | 40,06 | 3+3 | 30 | 8x4 | 15000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 2.444,00 € | DFA54295S |
| 125 | 65 | 40,06 | 3+3 | 30 | 8x4 | 15000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 2.444,00 € | DFA54295D |
| 125 | 65 | 40,06 | 4+4 | 30 | 8x4 | 15000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 3.178,94 € | DFA54300S |
| 125 | 65 | 40,06 | 4+4 | 30 | 8x4 | 15000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 3.178,94 € | DFA54300D |
| 150 | 43 | 40 | 3+3 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.014,14 € | DFA54305S |
| 150 | 43 | 40 | 3+3 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.014,14 € | DFA54305D |
| 150 | 43 | 40 | 4+4 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.600,00 € | DFA54310S |
| 150 | 43 | 40 | 4+4 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.600,00 € | DFA54310D |
| 150 | 65 | 40 | 3+3 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 2.454,40 € | DFA54315S |
| 150 | 65 | 40 | 3+3 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 2.454,40 € | DFA54315D |
| 150 | 65 | 40 | 4+4 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | LH | Available in 4 weeks | 3.189,34 € | DFA54320S |
| 150 | 65 | 40 | 4+4 | 30 | 8x4 | 12000 | AS | 2 | HOMAG | RH | Available in 4 weeks | 3.189,34 € | DFA54320D |
| 100 | 35 | 37 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | IMA-BRANDT | LH | Available in 4 weeks | 1.549,60 € | DFA54010S |
| 100 | 35 | 37 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | IMA-BRANDT | RH | Available in 4 weeks | 1.549,60 € | DFA54010D |
| 100 | 45 | 61 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | HEBROCK-BRANDT | LH | Available in 4 weeks | 1.989,86 € | DFA54050S |
| 100 | 45 | 61 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | HEBROCK-BRANDT | RH | Available in 4 weeks | 1.989,86 € | DFA54050D |
| 100 | 45 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT | LH | Available in 4 weeks | 1.989,86 € | DFA54060S |
| 100 | 45 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT | RH | Available in 4 weeks | 1.989,86 € | DFA54060D |
| 100 | 48 | 40 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 2.100,80 € | DFA54080S |
| 100 | 48 | 40 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 2.100,80 € | DFA54080D |
| 100 | 48 | 25 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | LH | Available in 4 weeks | 2.100,80 € | DFA54090S |
| 100 | 48 | 25 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | RH | Available in 4 weeks | 2.100,80 € | DFA54090D |
| 100 | 48 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 2.100,80 € | DFA54100S |
| 100 | 48 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 2.100,80 € | DFA54100D |
| 100 | 55 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 2.211,74 € | DFA54120S |
| 100 | 55 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 2.211,74 € | DFA54120D |
| 100 | 55 | 25 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | LH | Available in 4 weeks | 2.211,74 € | DFA54130S |
| 100 | 55 | 25 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | RH | Available in 4 weeks | 2.211,74 € | DFA54130D |
| 100 | 65 | 75 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | BIESSE | LH | Available in 4 weeks | 2.430,14 € | DFA54160S |
| 100 | 65 | 75 | 3+3 | 30 | 8x4 | 18000 | AS | 1 | BIESSE | RH | Available in 4 weeks | 2.430,14 € | DFA54160D |
| 100 | 65 | 40 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ-HER | LH | Available in 4 weeks | 2.430,14 € | DFA54170S |
| 100 | 65 | 40 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ-HER | RH | Available in 4 weeks | 2.430,14 € | DFA54170D |
| 100 | 65 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | LH | Available in 4 weeks | 2.430,14 € | DFA54180S | |
| 100 | 65 | 3+3 | 30 | 8x4 | 18000 | AS | 2 | HOLZ HER-SCM | RH | Available in 4 weeks | 2.430,14 € | DFA54180D | |
| 100 | 65 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | LH | Available in 4 weeks | 2.430,14 € | DFA54190S |
| 100 | 65 | 40,06 | 3+3 | 30 | 8x4 | 18000 | AS | 3 | BRANDT-IMA-SCM-IDM-BIESSE | RH | Available in 4 weeks | 2.430,14 € | DFA54190D |
| 125 | 34 | 36 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | IMA-HOMAG | LH | Available in 4 weeks | 1.560,00 € | DFA54195S |
| 125 | 34 | 36 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | IMA-HOMAG | RH | Available in 4 weeks | 1.560,00 € | DFA54195D |
| 125 | 45 | 36 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | IMA-HOMAG | LH | Available in 4 weeks | 2.000,26 € | DFA54200S |
| 125 | 45 | 36 | 4+4 | 30 | 8x4 | 15000 | AS | 1 | IMA-HOMAG | RH | Available in 4 weeks | 2.000,26 € | DFA54200D |
| 125 | 45 | 47 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | IMA-BIESSE | LH | Available in 4 weeks | 2.000,26 € | DFA54215S |
| 125 | 45 | 47 | 3+3 | 30 | 8x4 | 15000 | AS | 1 | IMA-BIESSE | RH | Available in 4 weeks | 2.000,26 € | DFA54215D |
