AES4
Price range: 357,06 € through 367,46 €

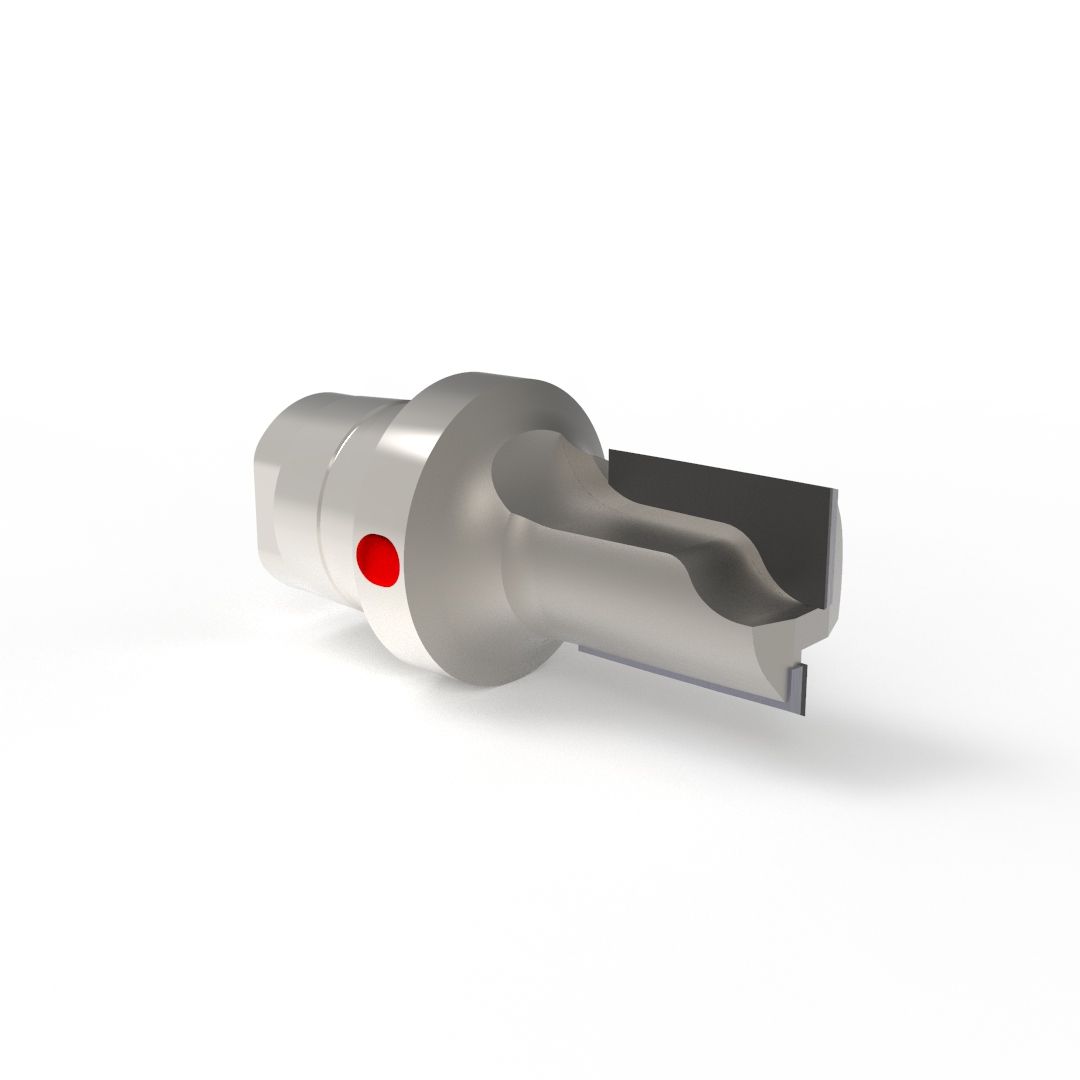

Z2 Straight-edge Cutter with Conical Shank for Aerotech System
ø:16mm
Technical features
- Feed speed: up to 12 mt/min
- Alternate axial angle
- 2 PCD cutting edges
- Design:2 flute
- 2 conical shank types: HSK20E for Aerotech System E; HSK20C for Aerotech System
- High precision and no vibration
- Resharpenable cutter (max 3-4 times)
Applications
- Z2 Straight-edge Cutter with Conical Shank for Aerotech System for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

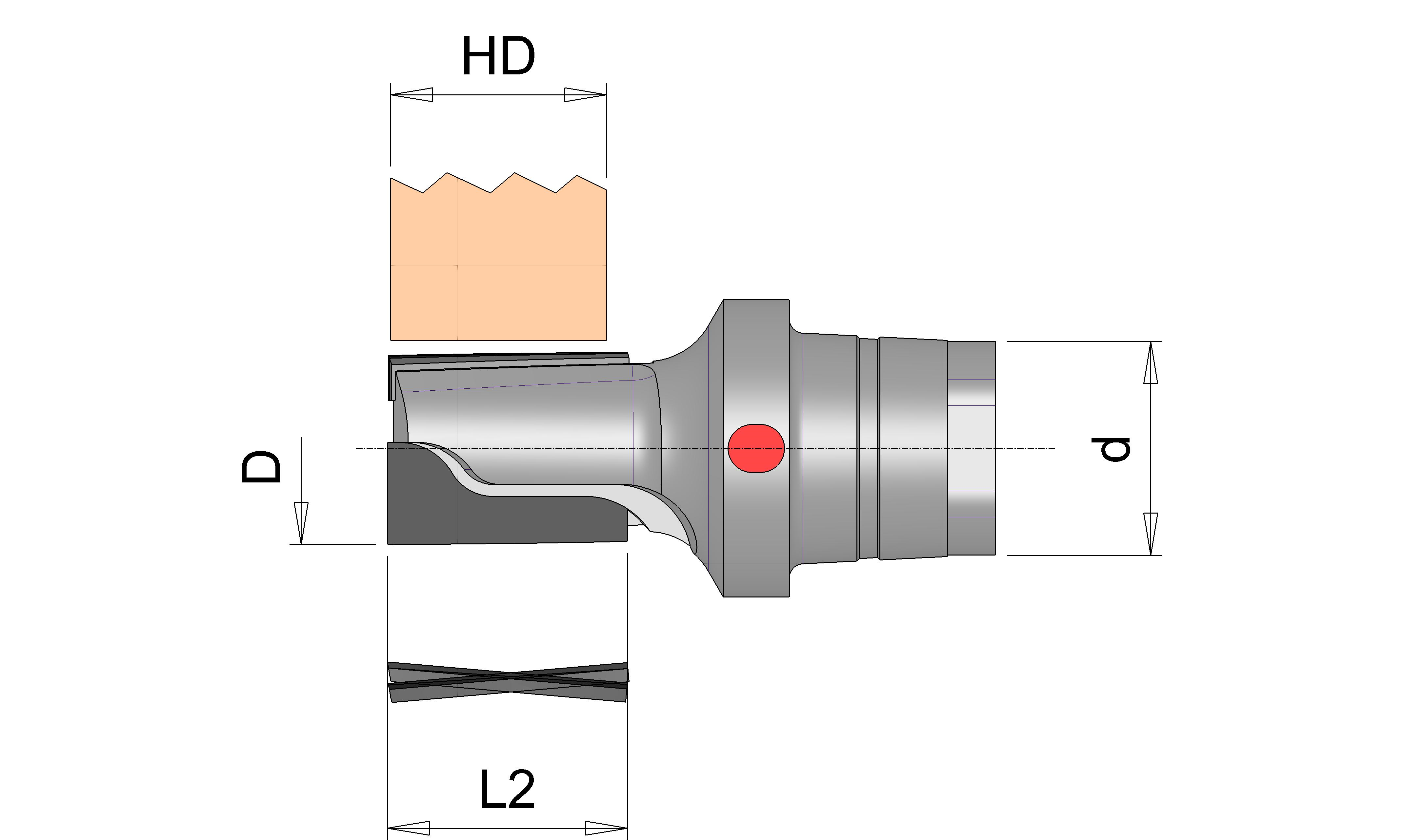

| D | d | HD | L2 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|
| 16 | HSK20E | 15-16-18 | 22 | 2 | Available (1 pcs.) | 357,06 € | AES416 |
| 16 | HSK20C | 15-16-18 | 22 | 2 | Available in 4 weeks | 357,06 € | AES46 |
| 16 | HSK20E | 19-20-22 | 24 | 2 | Available in 4 weeks | 367,46 € | AES41H |
| 16 | HSK20C | 19-20-22 | 24 | 2 | Available (4 pcs.) | 367,46 € | AES4H |
