MACH 2 AES1
Price range: 350,14 € through 613,60 €

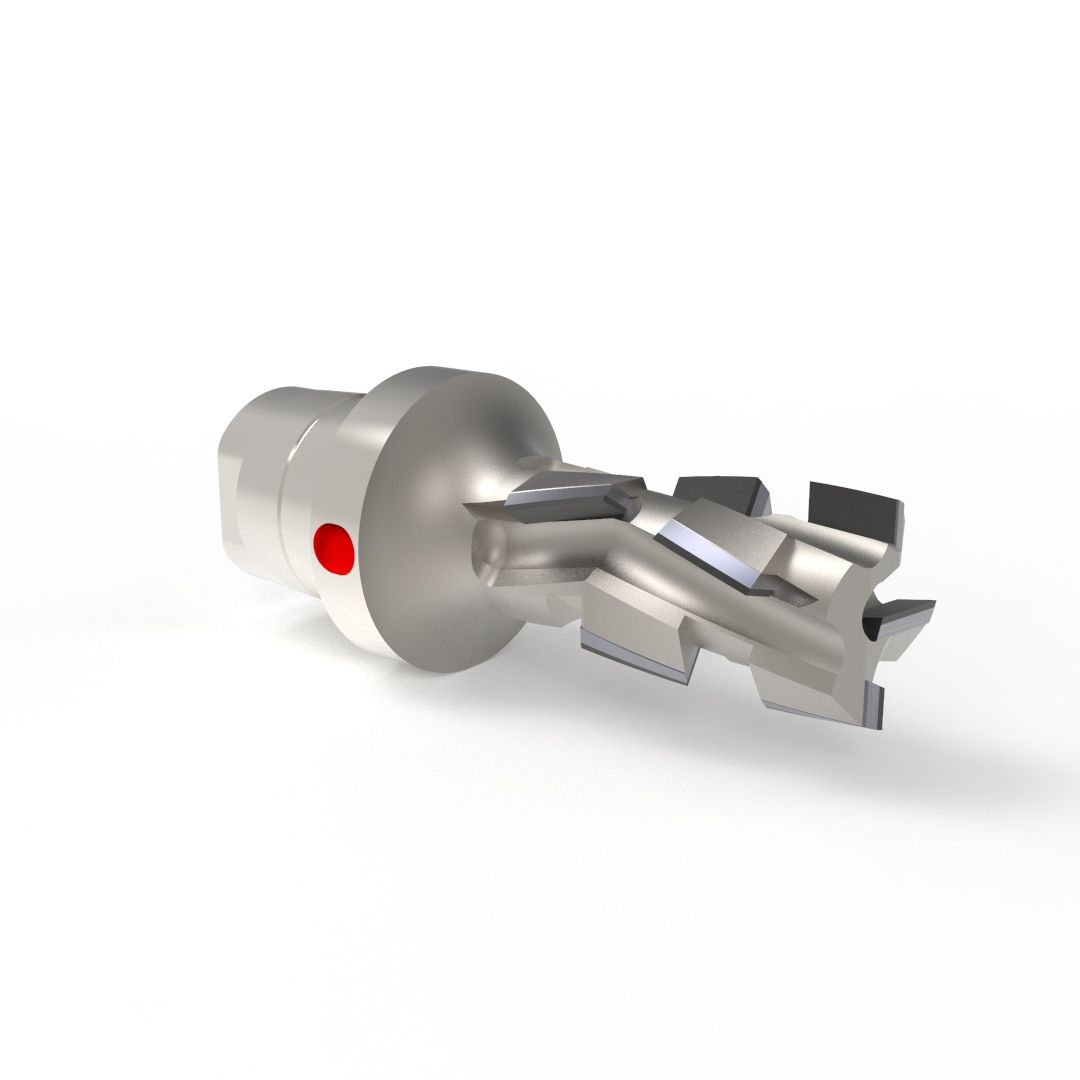

Z2+2 MACH 2 Cutter with Conical Shank for Aerotech System
ø:12-16mm
Technical features
- Feed speed: up to 12 mt/min
- Shear angle:-14° for D 12 mm.-16° for D 16 mm
- 2+2 PCD cutting edges
- Tip mainly positive (L+: 6mm less L2) for better evacuation of wooden chips
- Design: 4 flute
- Steel body; Heavy metal body for D 12 mm
- 2 conical shank types: HSK20E for Aerotech System E; HSK20C for Aerotech System
- High precision and no vibration
- Resharpenable cutter (max 4 times)
Applications
- Z2+2 MACH 2 Cutter with Conical Shank for Aerotech System for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

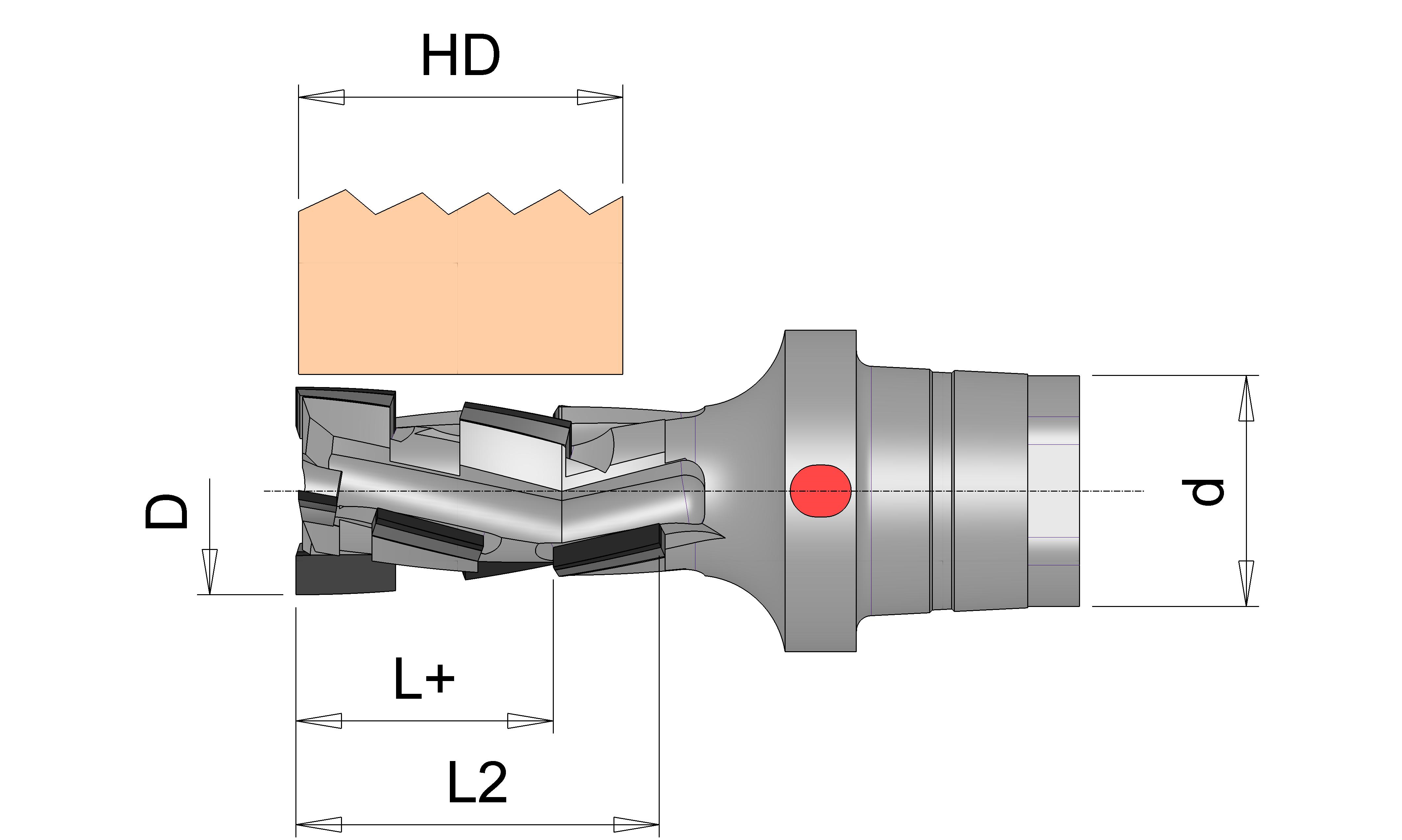

| D | d | Z | HDP | HD | L2 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 16 | HSK20C | 2+2 | 3,0 | 15-16 | 18,5 | Available in 4 weeks | 350,14 € | AES14 |
| 16 | HSK20C | 2+2 | 3,0 | 19-20 | 22,5 | Available in 4 weeks | 391,74 € | AES1F |
| 16 | HSK20E | 2+2 | 3,0 | 22 | 24,5 | Available (2 pcs.) | 391,74 € | AES1014D |
| 16 | HSK20C | 2+2 | 3,0 | 22 | 24,5 | Available (1 pcs.) | 391,74 € | AES1H |
| 16 | HSK20E | 2+2 | 3,0 | 25 | 27,5 | Available in 4 weeks | 450,66 € | AES1015D |
| 16 | HSK20C | 2+2 | 3,0 | 25 | 27,5 | Available (1 pcs.) | 450,66 € | AES1L |
| 12 | HSK20E | 2+2 | 3,0 | 15-16 | 18,5 | Available in 4 weeks | 478,40 € | AES1021D |
| 12 | HSK20E | 2+2 | 3,0 | 18 | 20,5 | Available in 4 weeks | 516,54 € | AES1022D |
| 12 | HSK20E | 2+2 | 3,0 | 19-20 | 22,5 | Available (8 pcs.) | 544,26 € | AES1023D |
| 12 | HSK20E | 2+2 | 3,0 | 22 | 24,5 | Available in 4 weeks | 544,26 € | AES1024D |
| 12 | HSK20E | 2+2 | 3,0 | 25 | 27,5 | Available (4 pcs.) | 613,60 € | AES1025D |
| 16 | HSK20E | 2+2 | 3,0 | 15-16 | 18,5 | Available (1 pcs.) | 350,14 € | AES1011D |
| 16 | HSK20E | 2+2 | 3,0 | 18 | 20,5 | Available (4 pcs.) | 381,34 € | AES1012D |
| 16 | HSK20E | 2+2 | 3,0 | 19-20 | 22,5 | Available in 4 weeks | 391,74 € | AES1013D |
