MACH 3.3 AEH6
Price range: 700,26 € through 1.046,94 €

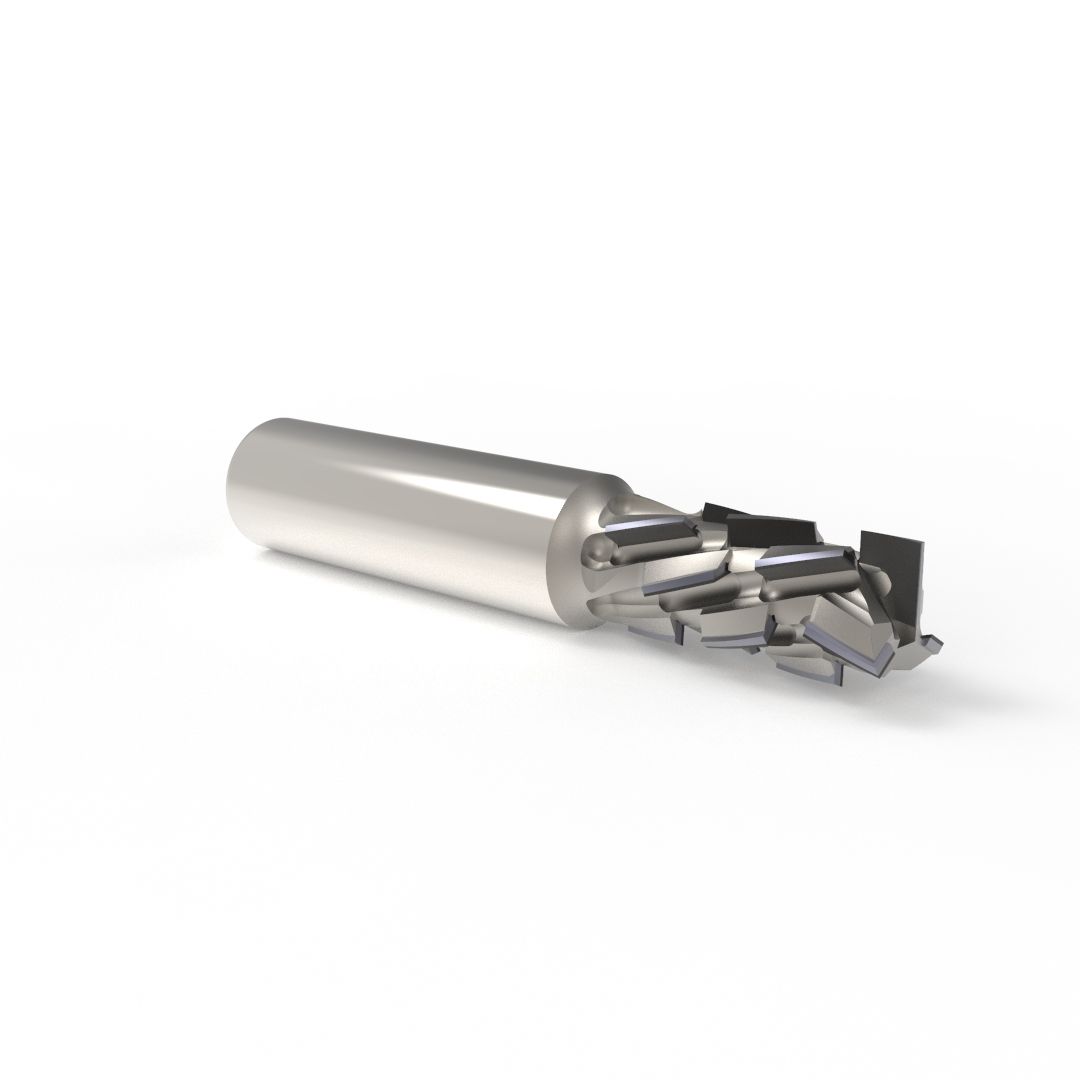

Z3+3 MACH 3.3 Cutter with Cylindrical Shank
ø:12-14mm
Technical features
- Feed speed: up to 25 mt/min
- Shear angle:
-10° for D 12 mm;
-20° for D 14 mm - 3+3 PCD cutting edges
- Design: 6 flute
- First tip positive (L+: 5mm), all the others negative
- Heavy metal body
- Resharpenable cutter (max 4 times)
Applications
- Cutter with Cylindrical Shank for CNC routers for nesting of Particleboards, Laminates, HPL and veneered panels, Plyboards

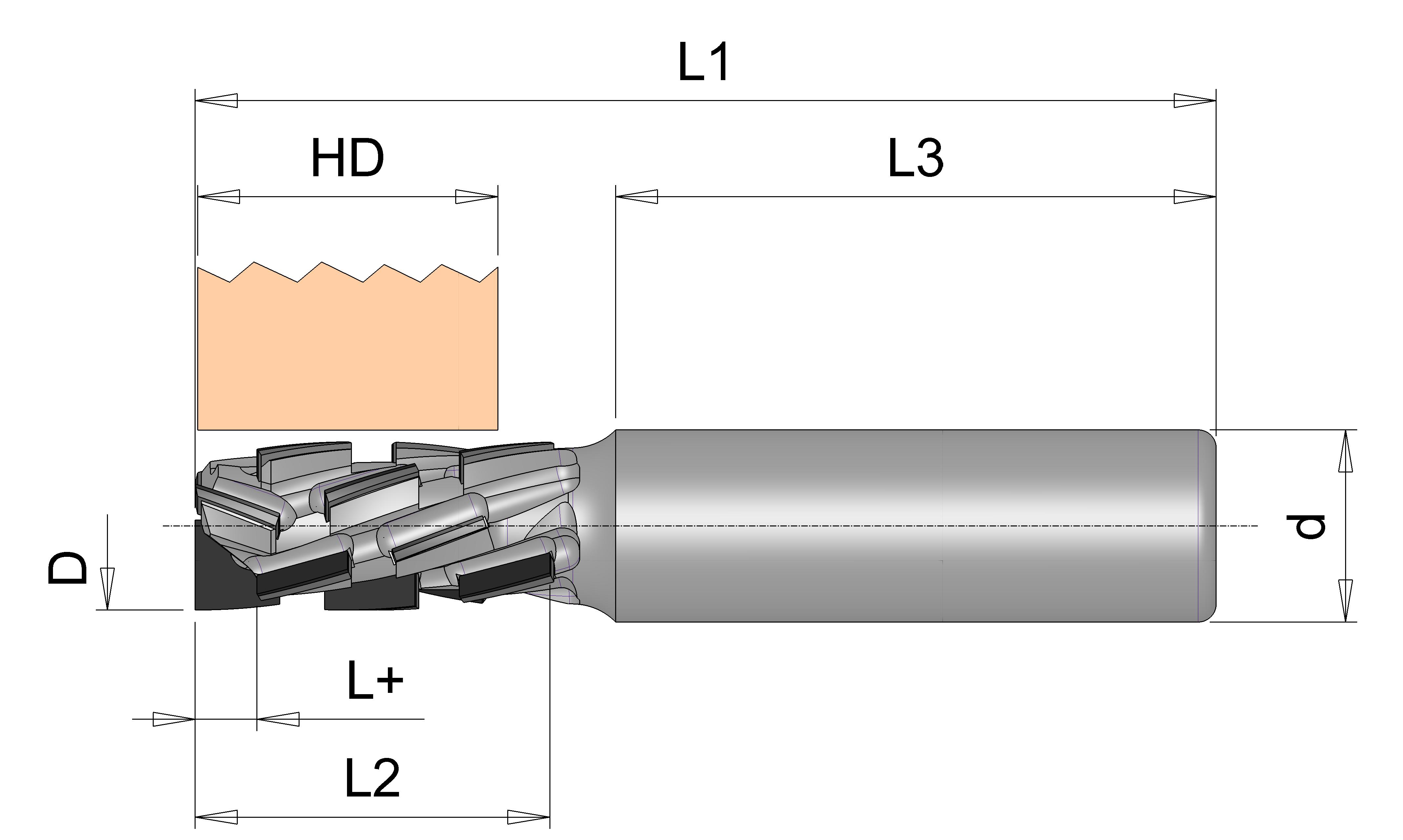

| D | d | L2 | L1 | L3 | Z | HDP | HD | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 12 | 22 | 75 | 40 | 3+3 | 3 | 15-18 | Available (17 pcs.) | 700,26 € | AEH605D |
| 12 | 12 | 28 | 85 | 40 | 3+3 | 3 | 19-25 | Available (2 pcs.) | 845,86 € | AEH610D |
| 14 | 16 | 22 | 75 | 40 | 3+3 | 3 | 15-18 | Available in 4 weeks | 738,40 € | AEH615D |
| 14 | 16 | 28 | 85 | 40 | 3+3 | 3 | 19-25 | Available (2 pcs.) | 894,40 € | AEH620D |
| 14 | 16 | 35 | 95 | 40 | 3+3 | 3 | 25-32 | Available in 4 weeks | 1.046,94 € | AEH625D |
