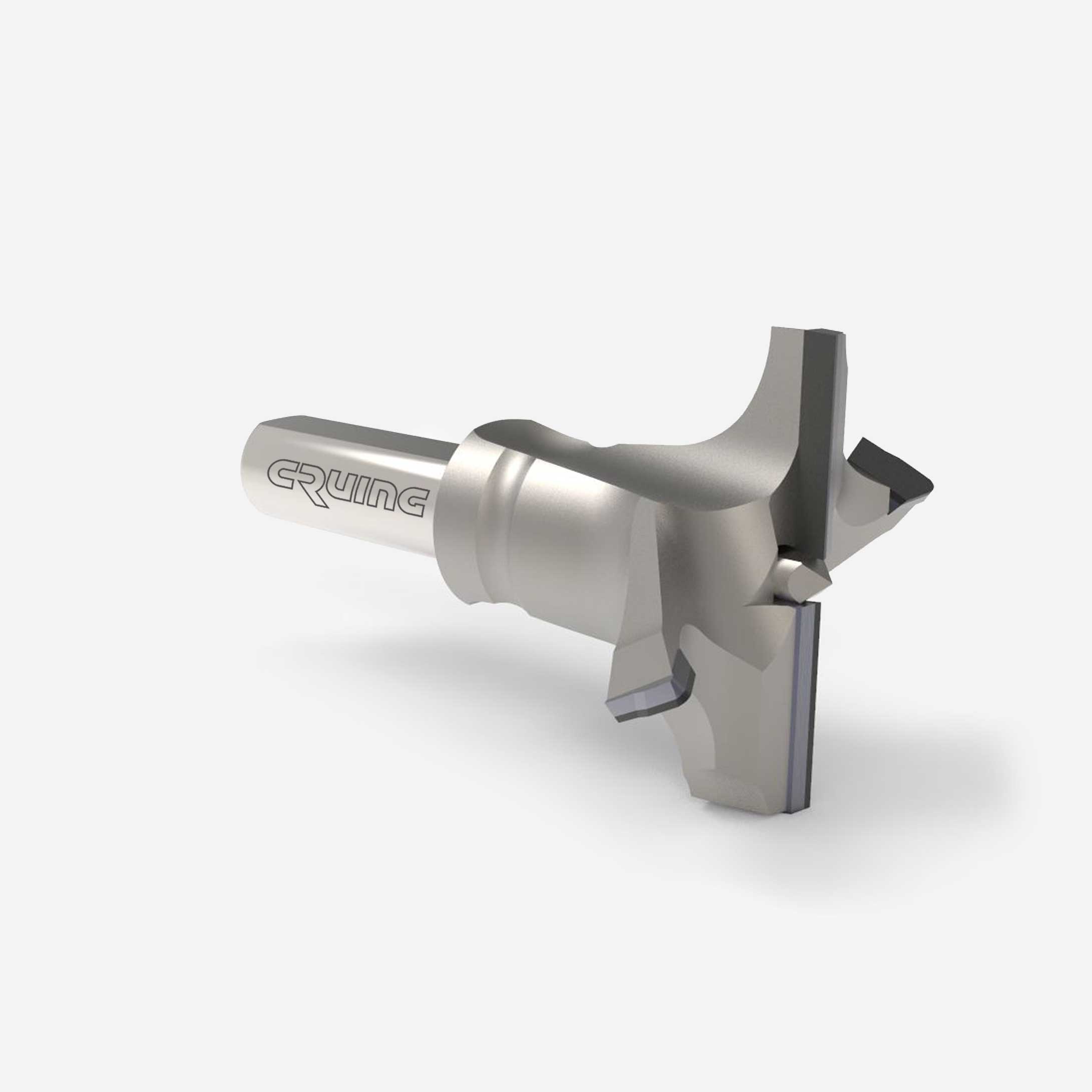

Hinge Bits DCG704
Hinge Bits DCG704 - Image 2

Hinge Bits DCG704

Price range: 334,88 € through 374,40 €

Cylinder Hinge Boring Bits (70mm)

ø: 15-40mm

Technical features
  • 2 PCD precision rakers
  • 2 PCD negative spurs
  • HW head with precision balanced centering point
  • Parallel shank with driving flat and lenght adjusting screw
  • Super strenght steel body
  • Total lenght: 70,0 mm
Applications
  • Sizing:
    PCD cylinder boring bits for chip-free drilling of hinge hardware holes in solid woods and wood-based panels with hardware hinge machines, automatic boring machines and CNC machining centers

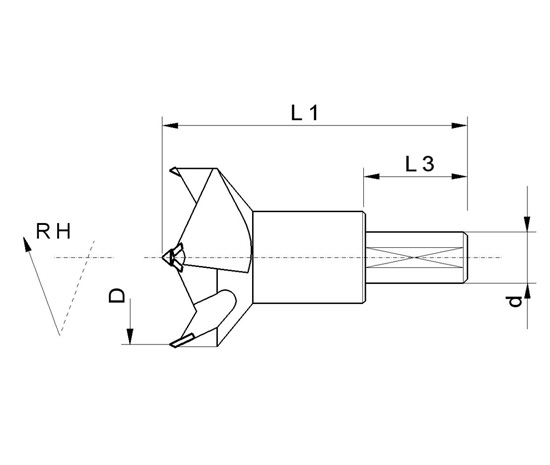

DL1dL3ZVn.maxRotationStockPriceCode
157010262228000LH Available (6 pcs.)334,88 €DCG7041S
157010262228000RH Available (4 pcs.)334,88 €DCG7041D
167010262227000LH Available (3 pcs.)334,88 €DCG7042S
167010262227000RH Available (5 pcs.)334,88 €DCG7042D
187010262225000LH Available (6 pcs.)334,88 €DCG7043S
187010262225000RH Available (8 pcs.)334,88 €DCG7043D
207010262224000LH Available (5 pcs.)334,88 €DCG7044S
207010262224000RH Available (7 pcs.)334,88 €DCG7044D
227010262223000LH Available in 4 weeks334,88 €DCG7045S
227010262223000RH Available in 4 weeks334,88 €DCG7045D
257010262221500LH Available in 4 weeks357,76 €DCG7047S
257010262221500RH Available (2 pcs.)357,76 €DCG7047D
267010262221500LH Available in 4 weeks357,76 €DCG7048S
267010262221500RH Available in 4 weeks357,76 €DCG7048D
307010262219500LH Available in 4 weeks357,76 €DCG704AS
307010262219500RH Available in 4 weeks357,76 €DCG704AD
357010262218500LH Available (5 pcs.)374,40 €DCG704CS
357010262218500RH Available in 4 weeks374,40 €DCG704CD
407010262217000LH Available in 4 weeks374,40 €DCG704ES
407010262217000RH Available in 4 weeks374,40 €DCG704ED
