Hinge Bits DCG574

Name: Hinge Bits DCG574
SKU: DCG574
Availability: OutOfStock

Price range: 334,88 € through 374,40 €

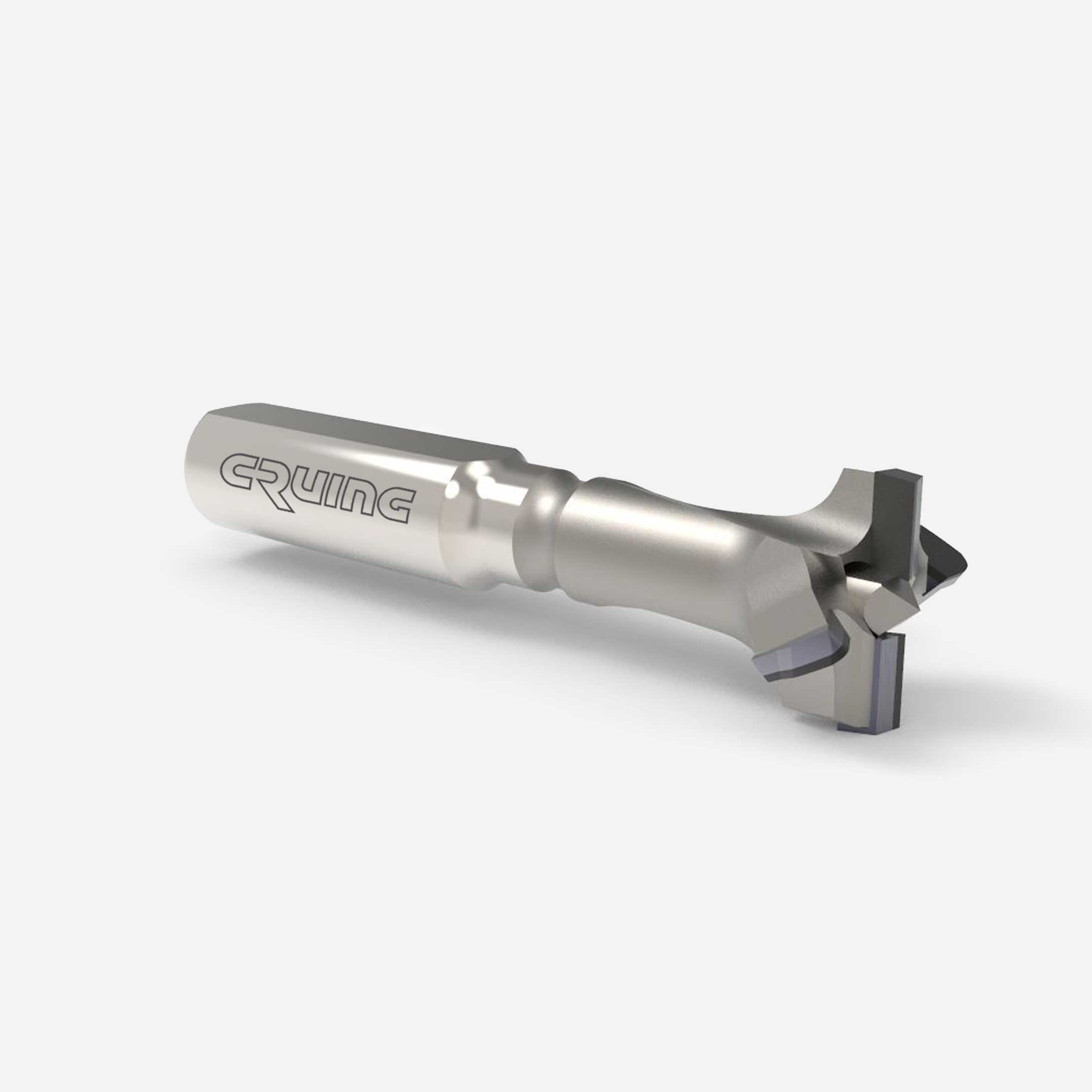

Cylinder Hinge Boring Bits (57mm)
ø: 15-40mm

Technical features

Applications

Sizing:
PCD cylinder boring bits for chip-free drilling of hinge hardware holes in solid woods and wood-based panels with hardware hinge machines, automatic boring machines and CNC machining centers

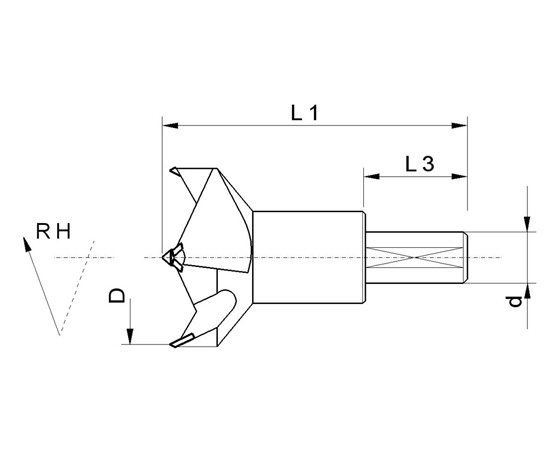

D	L1	d	L3	Z	V	n.max	Rotation	Stock	Price	Code
30	57,5	10	26	2	2	19500	RH	Available (12 pcs.)	357,76 €	DCG574AD
35	57,5	10	26	2	2	18500	LH	Available (9 pcs.)	374,40 €	DCG574CS
35	57,5	10	26	2	2	18500	RH	Available (6 pcs.)	374,40 €	DCG574CD
40	57,5	10	26	2	2	17000	LH	Available in 4 weeks	374,40 €	DCG574ES
40	57,5	10	26	2	2	17000	RH	Available in 4 weeks	374,40 €	DCG574ED
26	57,5	10	26	2	2	21000	LH	Available (6 pcs.)	357,76 €	DCG5748S
26	57,5	10	26	2	2	21000	RH	Available in 4 weeks	357,76 €	DCG5748D
30	57,5	10	26	2	2	19500	LH	Available in 4 weeks	357,76 €	DCG574AS
15	57,5	10	26	2	2	28000	LH	Available (8 pcs.)	334,88 €	DCG5741S
15	57,5	10	26	2	2	28000	RH	Available in 4 weeks	334,88 €	DCG5741D
16	57,5	10	26	2	2	28000	LH	Available in 4 weeks	334,88 €	DCG5742S
16	57,5	10	26	2	2	28000	RH	Available in 4 weeks	334,88 €	DCG5742D
18	57,5	10	26	2	2	25000	LH	Available in 4 weeks	334,88 €	DCG5743S
18	57,5	10	26	2	2	25000	RH	Available in 4 weeks	334,88 €	DCG5743D
20	57,5	10	26	2	2	24000	LH	Available (4 pcs.)	334,88 €	DCG5744S
20	57,5	10	26	2	2	24000	RH	Available (1 pcs.)	334,88 €	DCG5744D
22	57,5	10	26	2	2	23000	LH	Available in 4 weeks	334,88 €	DCG5745S
22	57,5	10	26	2	2	23000	RH	Available in 4 weeks	334,88 €	DCG5745D
25	57,5	10	26	2	2	21500	LH	Available in 4 weeks	357,76 €	DCG5747S
25	57,5	10	26	2	2	21500	RH	Available in 4 weeks	357,76 €	DCG5747D
