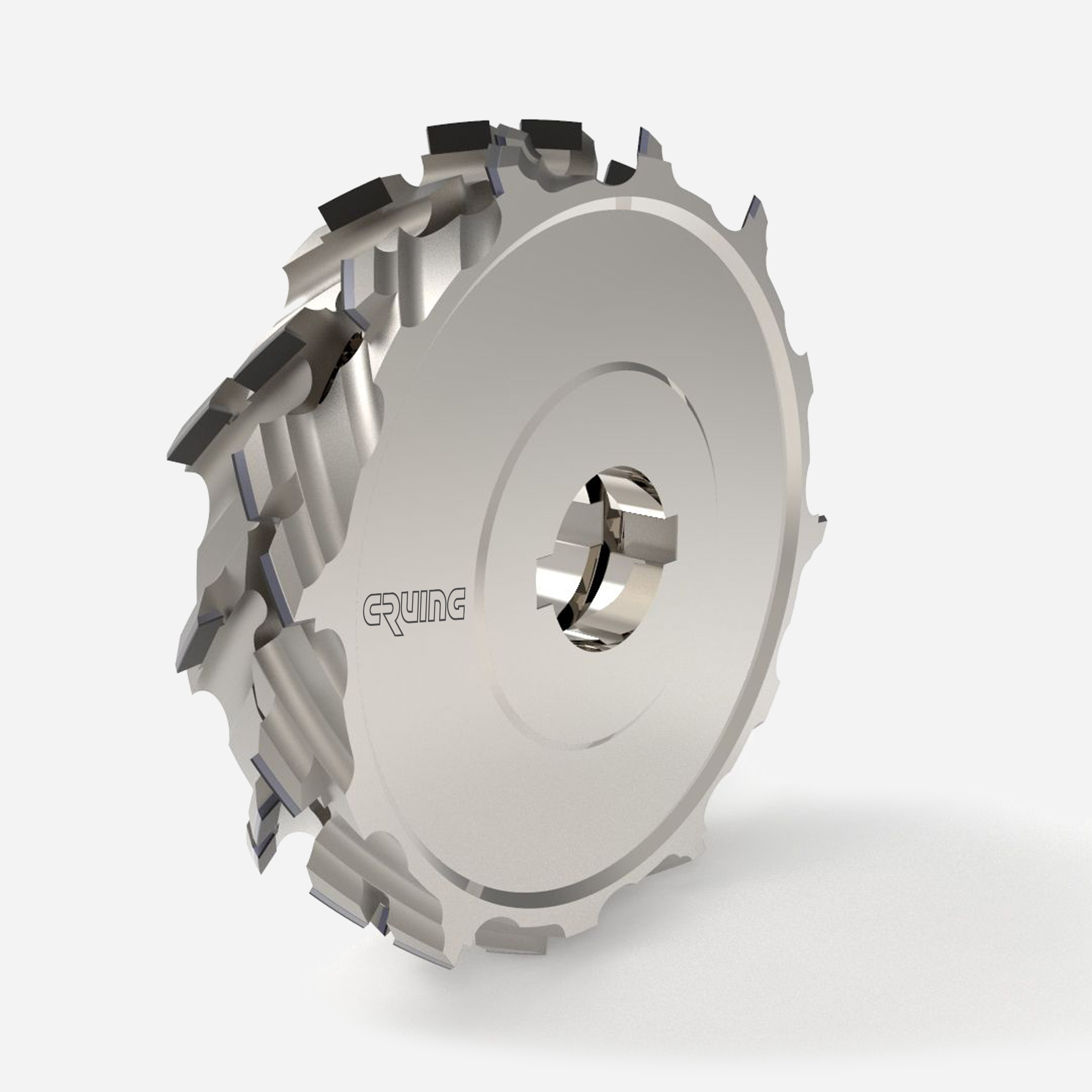

PCD Jointing Cutters 45°
Price range: 1.393,60 € through 6.330,14 €
PCD Jointing cutters progressively adjustable – two-part
ø:80-200mm
Technical features
- 45° shear angle geometry for high quality edge finish, reduced cutting pressure and low noise
- “Easy Flow” gullets for optimized chip removal and reduced machine malfunctions
- Symmetrical designs
- Two-part adjustable via spacers
- Left and Right hand rotations
- Resharpenable cutter (max 6-8 times)
- Diameters: From 80 to 200mm
- d=30 DKN 8×4; d=35 DKN 10×4; d=40 DKN 12×5
- n.max:
-23000 up to D 80
-18000 up to D 100
-15000 up to D 125
-10000 up to D 180
-9000 up to 200
Applications
- PCD Jointing Cutter for chip-free jointing of panels. Perfect edgebanding operations for parts with seamless edge

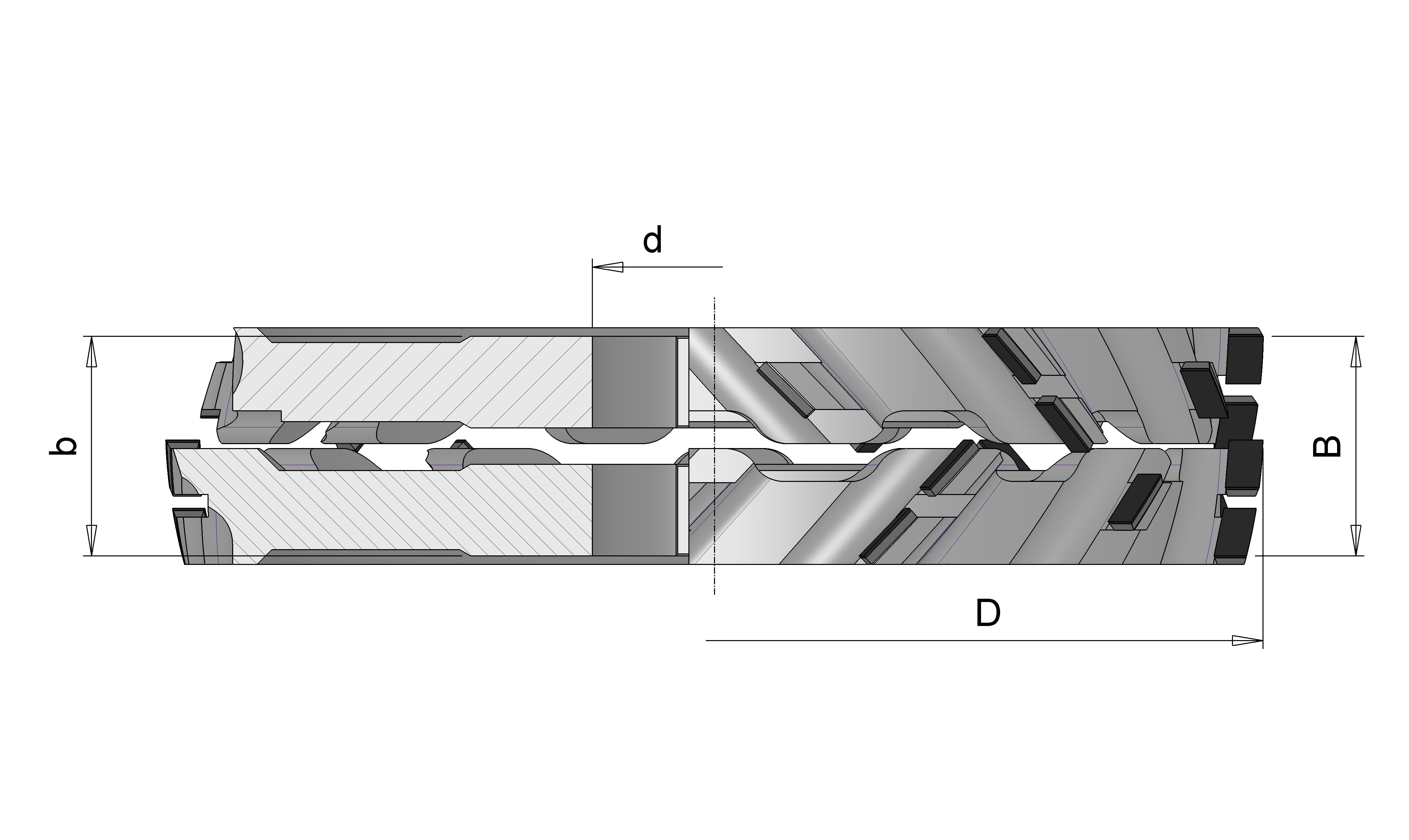

| D | B | b | Z | d | DKN | n.max | HDP | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 1.393,60 € | DSA45005S |
| 80 | 24/30 | 30 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 1.393,60 € | DSA45005D |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 1.816,54 € | DSA45010S |
| 80 | 29/35 | 35 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 1.816,54 € | DSA45010D |
| 80 | 34/40 | 40 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.242,94 € | DSA45015S |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.242,94 € | DSA45015D |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | LH | Available in 4 weeks | 2.665,86 € | DSA45020S |
| 80 | 39/45 | 45 | 3+3 | 30 | 8x4 | 23000 | 5,7 | RH | Available in 4 weeks | 2.665,86 € | DSA45020D |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 1.410,94 € | DSA45025S |
| 100 | 24/30 | 30 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 1.410,94 € | DSA45025D |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 1.837,34 € | DSA45030S |
| 100 | 29/35 | 35 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 1.837,34 € | DSA45030D |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.263,74 € | DSA45035S |
| 100 | 34/40 | 40 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.263,74 € | DSA45035D |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | LH | Available in 4 weeks | 2.686,66 € | DSA45040S |
| 100 | 39/45 | 45 | 3+3 | 30 | 8x4 | 18000 | 5,7 | RH | Available in 4 weeks | 2.686,66 € | DSA45040D |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 1.435,20 € | DSA45045S |
| 125 | 24/30 | 30 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 1.435,20 € | DSA45045D |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 1.861,60 € | DSA45050S |
| 125 | 29/35 | 35 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 1.861,60 € | DSA45050D |
| 125 | 34/40 | 40 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.288,00 € | DSA45055S |
| 125 | 34/40 | 40 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.288,00 € | DSA45055D |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | LH | Available in 4 weeks | 2.710,94 € | DSA45060S |
| 125 | 39/45 | 45 | 3+3 | 30 | 8x4 | 15000 | 5,7 | RH | Available in 4 weeks | 2.710,94 € | DSA45060D |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.336,54 € | DSA45065S |
| 180 | 24/30 | 30 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.336,54 € | DSA45065D |
| 180 | 29/35 | 35 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 3.192,80 € | DSA45070D |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.045,60 € | DSA45075S |
| 180 | 34/40 | 40 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.045,60 € | DSA45075D |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.901,86 € | DSA45080S |
| 180 | 39/45 | 45 | 6+6 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.901,86 € | DSA45080D |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.901,86 € | DSA45085S |
| 180 | 24/30 | 30 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.336,54 € | DSA45085D |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 3.192,80 € | DSA45090S |
| 180 | 29/35 | 35 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 3.192,80 € | DSA45090D |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.045,60 € | DSA45095S |
| 180 | 34/40 | 40 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.045,60 € | DSA45095D |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.901,86 € | DSA45100S |
| 180 | 39/45 | 45 | 6+6 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.901,86 € | DSA45100D |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 2.908,54 € | DSA45105S |
| 180 | 24/30 | 30 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 2.908,54 € | DSA45105D |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 4.042,14 € | DSA45110S |
| 180 | 29/35 | 35 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 4.042,14 € | DSA45110D |
| 180 | 34/40 | 40 | 8+8 | 35 | 10X4 | 10000 | 5,7 | LH | Available in 4 weeks | 5.175,74 € | DSA45115S |
| 180 | 34/40 | 40 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 5.175,74 € | DSA45115D |
| 180 | 39/45 | 45 | 8+8 | 35 | 10X4 | 10000 | 5,7 | RH | Available in 4 weeks | 6.309,34 € | DSA45120D |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 2.908,54 € | DSA45125S |
| 180 | 24/30 | 30 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 2.908,54 € | DSA45125D |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 4.042,14 € | DSA45130S |
| 180 | 29/35 | 35 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 4.042,14 € | DSA45130D |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 5.175,74 € | DSA45135S |
| 180 | 34/40 | 40 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 5.175,74 € | DSA45135D |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | LH | Available in 4 weeks | 6.309,34 € | DSA45140S |
| 180 | 39/45 | 45 | 8+8 | 40 | 12X5 | 10000 | 5,7 | RH | Available in 4 weeks | 6.309,34 € | DSA45140D |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 2.360,80 € | DSA45145S |
| 200 | 24/30 | 30 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 2.360,80 € | DSA45145D |
| 200 | 29/35 | 35 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 3.210,14 € | DSA45150S |
| 200 | 29/35 | 35 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 3.210,14 € | DSA45150D |
| 200 | 34/40 | 40 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.062,94 € | DSA45155S |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.912,26 € | DSA45160S |
| 200 | 39/45 | 45 | 6+6 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.912,26 € | DSA45160D |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.360,80 € | DSA45165S |
| 200 | 24/30 | 30 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.360,80 € | DSA45165D |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 3.210,14 € | DSA45170S |
| 200 | 29/35 | 35 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 3.210,14 € | DSA45170D |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.062,94 € | DSA45175S |
| 200 | 34/40 | 40 | 6+6 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 4.062,94 € | DSA45175D |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.912,26 € | DSA45180S |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.912,26 € | DSA45180D |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 2.929,34 € | DSA45185S |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 2.929,34 € | DSA45185D |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 4.062,94 € | DSA45190S |
| 200 | 24/30 | 30 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 4.062,94 € | DSA45190D |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 5.196,54 € | DSA45195S |
| 200 | 34/40 | 40 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 5.196,54 € | DSA45195D |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | LH | Available in 4 weeks | 6.330,14 € | DSA45200S |
| 200 | 39/45 | 45 | 8+8 | 35 | 10X4 | 9000 | 5,7 | RH | Available in 4 weeks | 6.330,14 € | DSA45200D |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 2.929,34 € | DSA45205S |
| 200 | 24/30 | 30 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 2.929,34 € | DSA45205D |
| 200 | 29/35 | 35 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 4.062,94 € | DSA45210S |
| 200 | 34/40 | 40 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 5.196,54 € | DSA45215D |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | LH | Available in 4 weeks | 6.330,14 € | DSA45220S |
| 200 | 39/45 | 45 | 8+8 | 40 | 12X5 | 9000 | 5,7 | RH | Available in 4 weeks | 6.330,14 € | DSA45220D |
