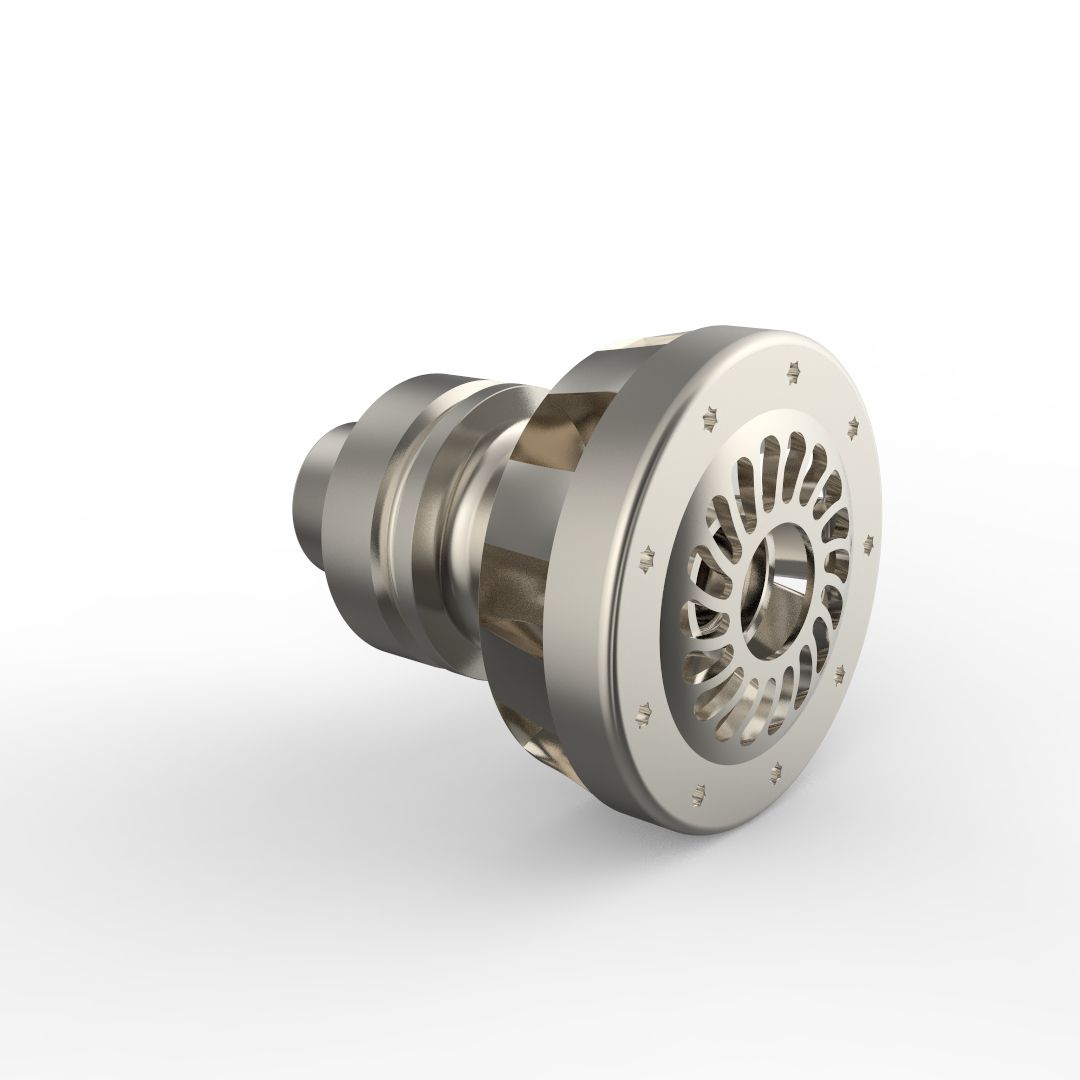

Aerotech System E AER-27F
1,00 €
For Nesting cabinet/MDF with straight and profiled HSK20E inserts.
The Aerotech System E is the best solution for the highest performance and production volume.
Technical features
- Machine interface: HSK-F 63
- Clamping system: HSK20E
- Run-out: <0,003 mm x 2.5 D
- Run-out: <0,003 mm x 2.5 D
- Torque: up to tool failure
- Rpm: max 24.000
- Balance: G<2,5 at 25.000 rpm
- Aerotech diameter: 95 mm
- Weight: 1,9 kg (without tool)
- Flange: Faceplate grill
Applications
- For Nesting with HSK20E straight inserts

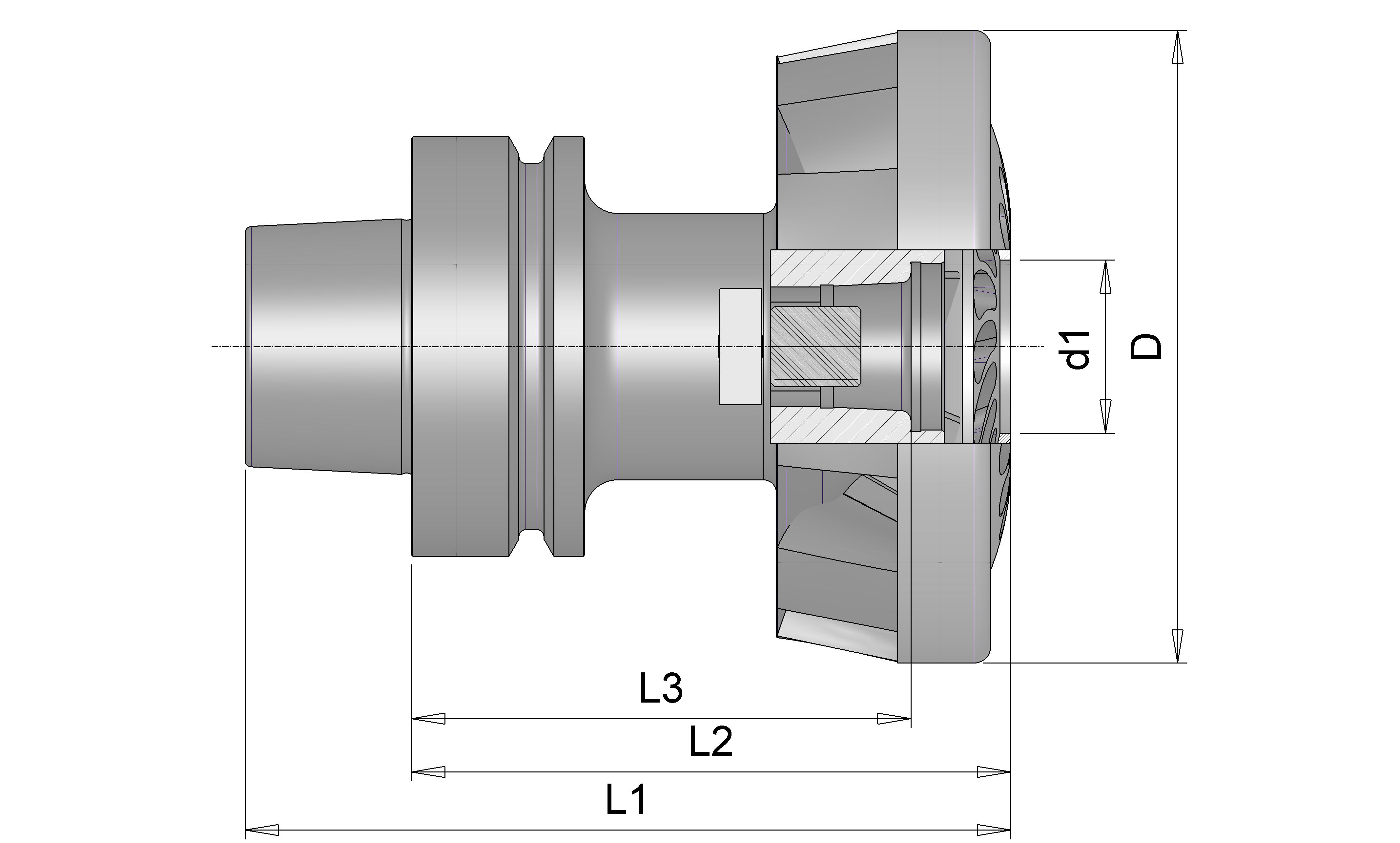

| D | d1 | L1 | L2 | L3 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|
| 95 | 26 | 115 | 90 | 75 | Available (1 pcs.) | 1,00 € | AER-27F |
