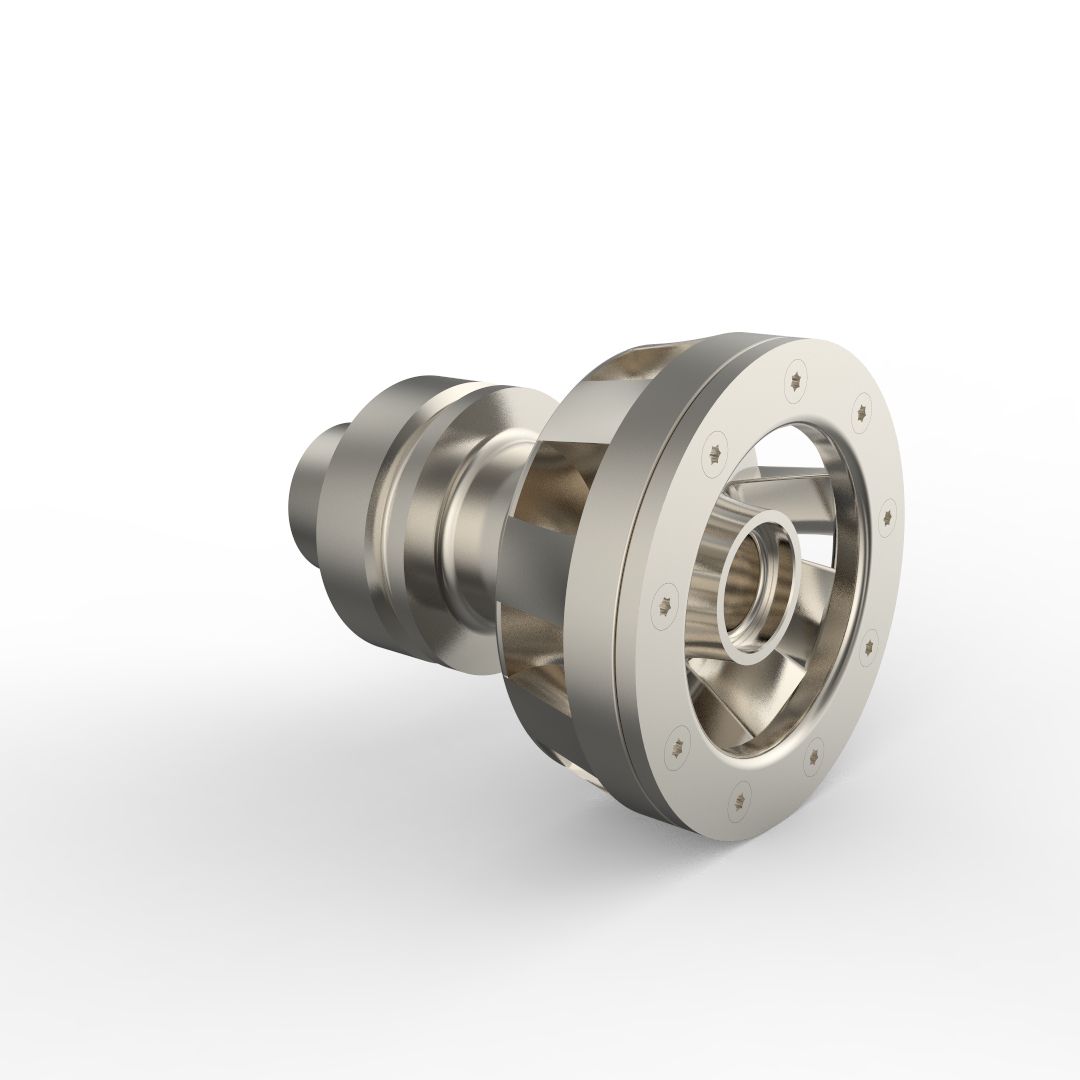

Aerotech Hydro AER-41A
1,00 €
For Nesting cabinet/MDF and Routing with straight and profiled tools.The Aerotech Hydro is recommended for high production and high quality requirements
Advantages
The hydraulic clamping system offers security, precision and high production levels.Ideal for applications demanding high quality at high speed. The Plus version with the patented Faceplate grill is ideal for those cutting operations that produce large pieces of debris and off-cuts.Reduction sleeves available as accessories to adapt tools with different shank size.
Technical features
- Machine interface: HSK-F 63
- Clamping system: Hydraulic (with reduction sleeves)
- Max. tool diameter: 72,5 mm on
- Run-out: <0,003 mm x 2.5 D
- Torque: 250 Nm (AER-41A) / 185 Nm (AER-55F)
- Rpm: max 24.000
- Balance: G<2,5 at 25.000 rpm
- Aerotech diameter: 95 mm
- Weight: 2,3 – 2,5 kg (without tool)
- Flange: Standard flange or patented Faceplate grill
Applications
- Nesting MDF and Routing with straight and profiled tools (AER-41A)
- Nesting cabinet with straight tools (AER-55F)

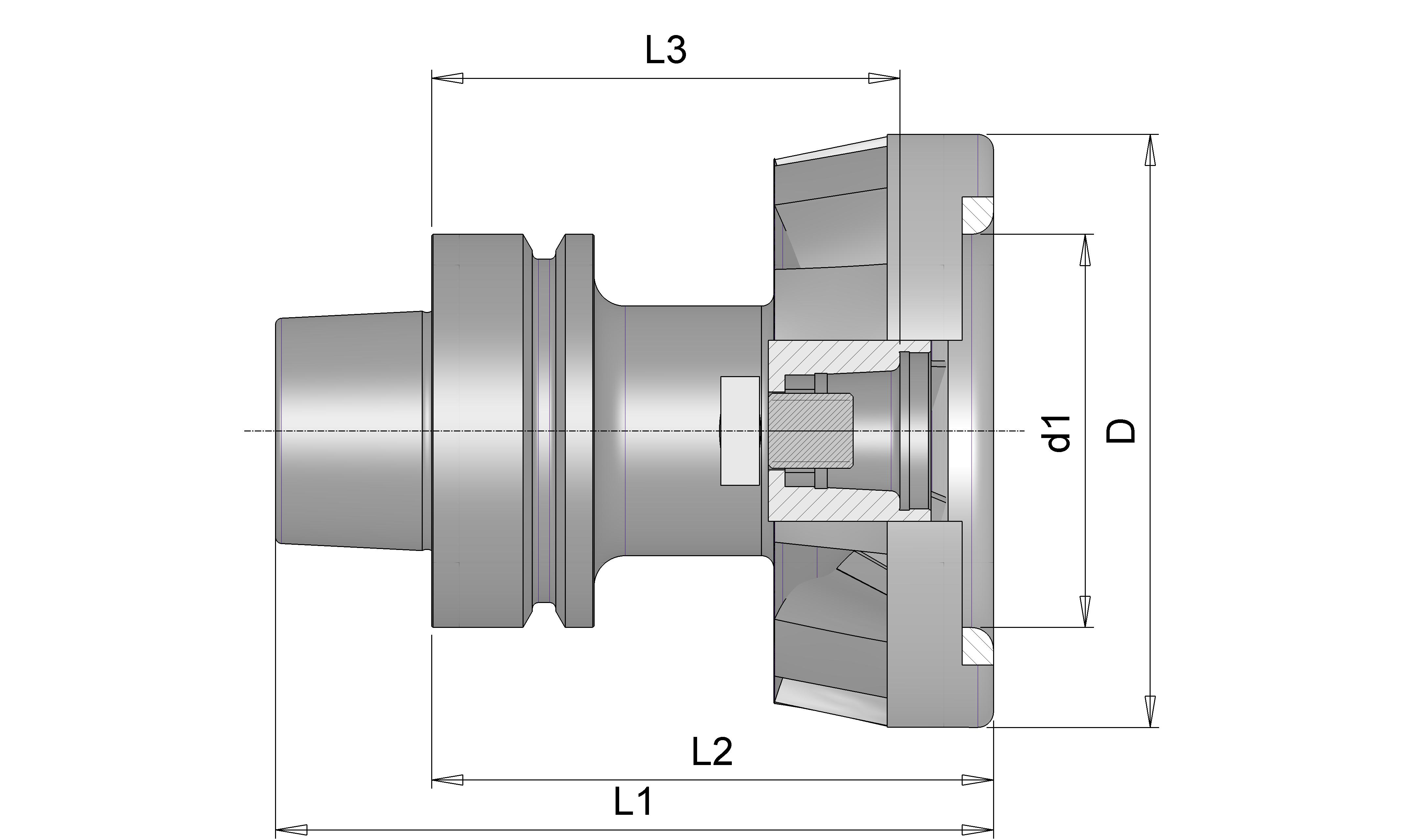

| D | d1 | d2 | L1 | L2 | L3 | L4 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|
| 105 | 73 | 25 | 131 | 106 | 99 | 48-58 | Available (5 pcs.) | 1,00 € | AER-41A |
