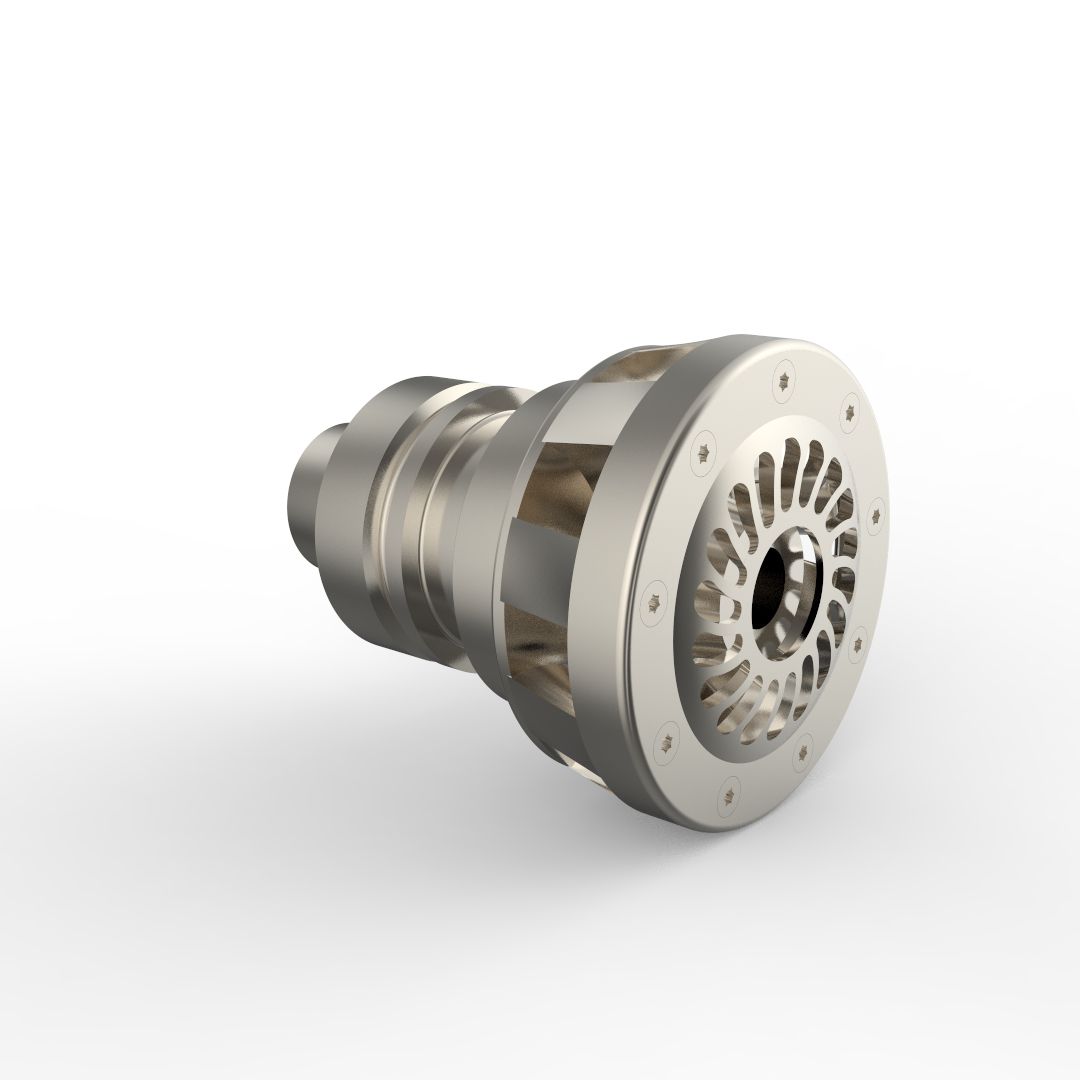

Aerotech Hydro Plus 95 AER-55F
2.440,00 €
For Nesting cabinet/MDF with straight and profiled HSK20E inserts.
The Aerotech System E is the best solution for the highest performance and production volume.
Technical features
- Machine interface: HSK-F 63
- Clamping system: Hidraulic (with reduction sleeves)
- Run-out: <0,003 mm x 2.5 D
- Max. tool diameter: 25,5 mm
- Torque: 185 Nm
- Rpm: max 24.000
- Balance class: G<2,5 at 25.000 rpm
- Aerotech diameter: 95 mm
- Weight: 2,3 kg (without tool)
- Flange: Faceplate grill
Applications
- For Nesting with straight tools
| D | d1 | d2 | L1 | L2 | L3 | L4 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|
| 95 | 26 | 16 | 123 | 98 | 92 | 40-50 | Available in 4 weeks | 2.440,00 € | AER-55F |
