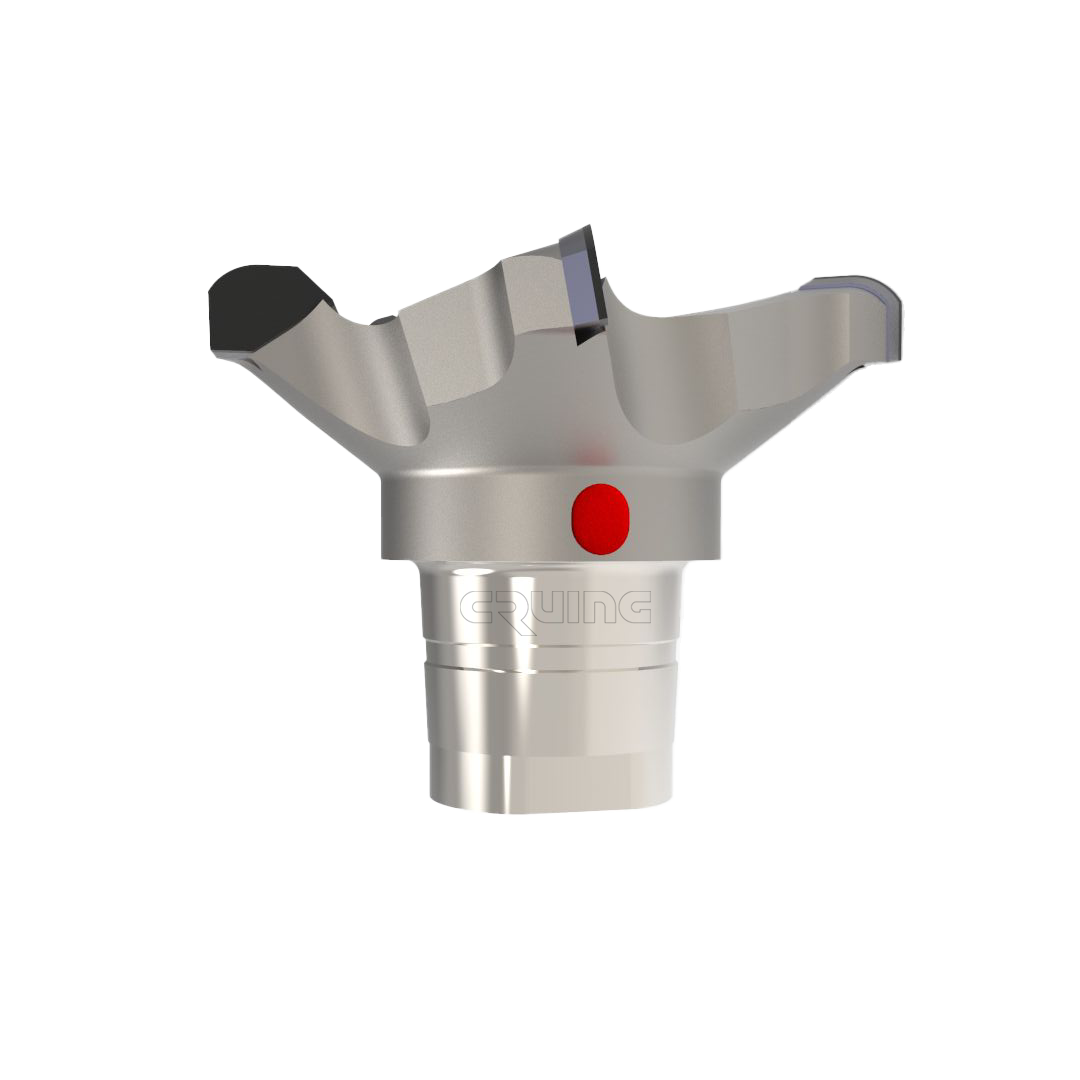

AeroMill M42
Price range: 858,00 € through 925,60 €
Z4/Z5 PCD Face Mill, Aerotech product
ø: 25-50mm
Technical features
- Heavy metal tungsten alloy body (up to 40 mm)
- Case hardened body (over 40 mm)
- High density PCD cutting edges: 4/5
- Helix angle: 0° – 10°
- Cutting tolerance: +/- 0.02
- Balance: G2.5 < 1 gr/mm
- Shank form: HSK20C
- Diameters: from 25.0 to 50.0 mm
- For use with Aerotech System for “Air Cooled Dry Cutting” (see Aerotech section)
- The HSK cone grants exceptional axial and radial accuracy
- “Easy-Flow” design for more efficient dust and chip evacuation
- Profiled “GlideCut” edges to reduce cutting pressure (see Aerotech section)
- End-cut-to-centre design available up to 40 mm diameters
- Customised multi-role cutters on request
Applications
- Heavy metal tungsten alloy face mill with 4 or 5 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for high speed facing operations
Code: HSK20C

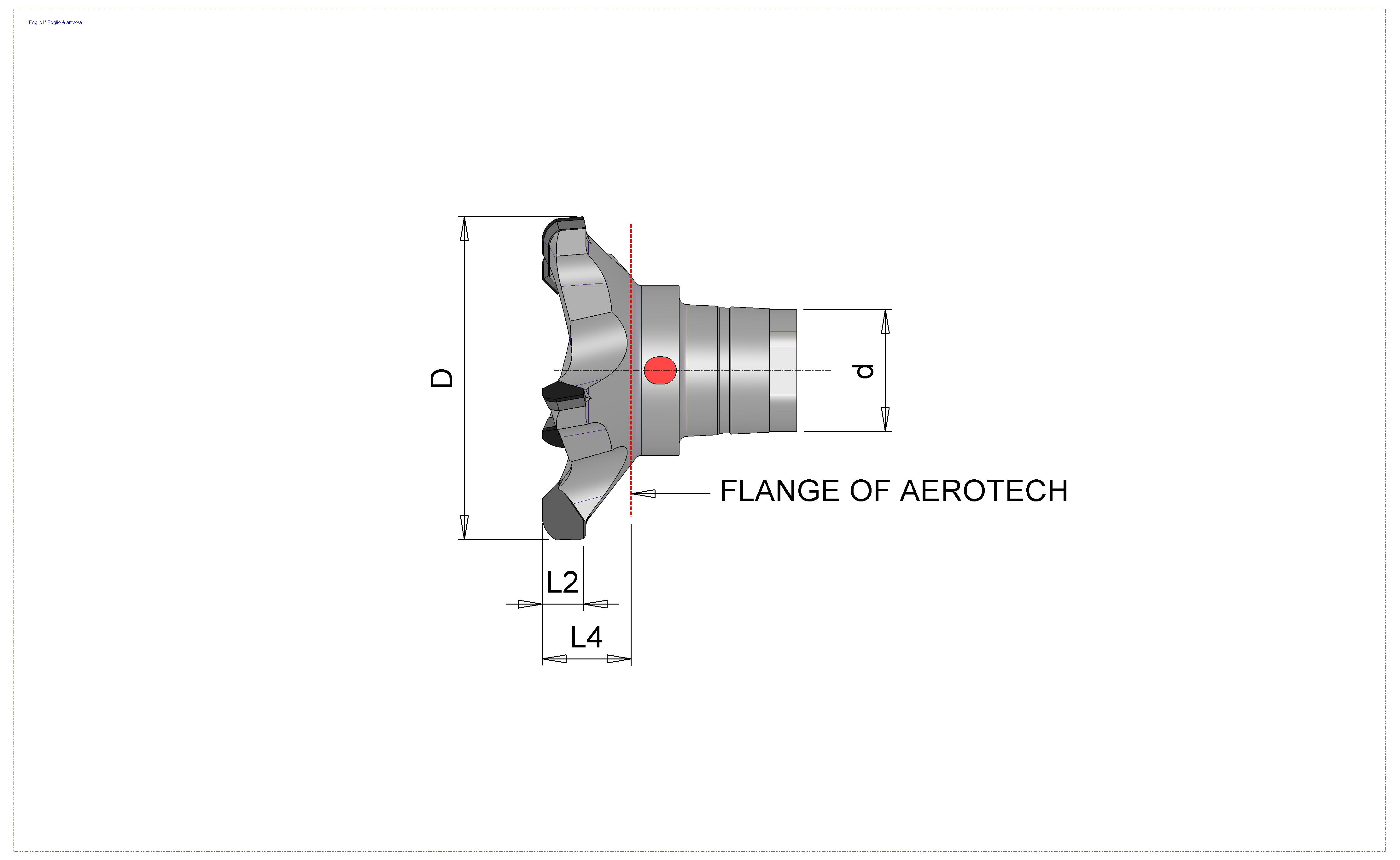

| D | d | L2 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|
| 25,00 | HSK20C | 10,00 | 4 | Available in 4 weeks | 858,00 € | AM42010 |
| 32,00 | HSK20C | 10,00 | 4 | Available in 4 weeks | 925,60 € | AM42015 |
| 40,00 | HSK20C | 10,00 | 5 | Available in 4 weeks | 860,60 € | AM42020 |
| 50 | HSK20C | 10,00 | 5 | Available in 4 weeks | 876,20 € | AM42025 |
