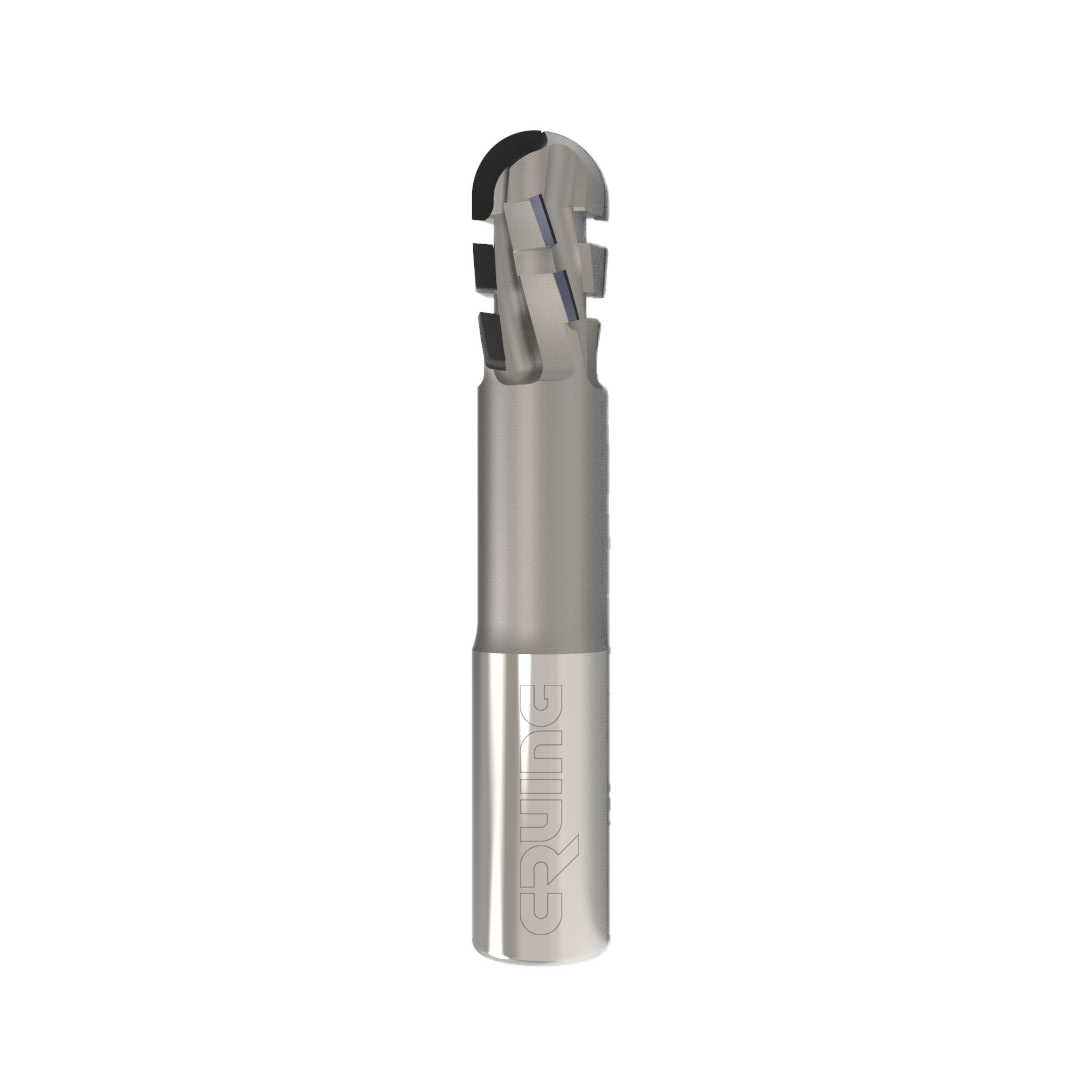

AeroMill M28
Price range: 1.214,20 € through 1.960,40 €
Z2+2 PCD Ball Nose End Mill
ø: 10-16mm
Technical features
- Heavy metal tungsten alloy body
- High density PCD cutting edges: 2+2
- Helix angle: 10° – 25°
- Cutting tolerance: +/- 0.02
- Balance: G2.5 < 1 gr/mm
- Shank form: HA (DIN 6535)
- Diameters: from 19.05 to 32.0 mm on request
- “Easy-Flow” design for more efficient dust and chip evacuation
- Customised multi-role cutters on request
Applications
- Heavy metal tungsten alloy ball nose end mill with 2+2 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for multi-role operations of profiling and pre-finishing (ball nose cutter without axial angle and pre-finishing cutter with converging axial angle).

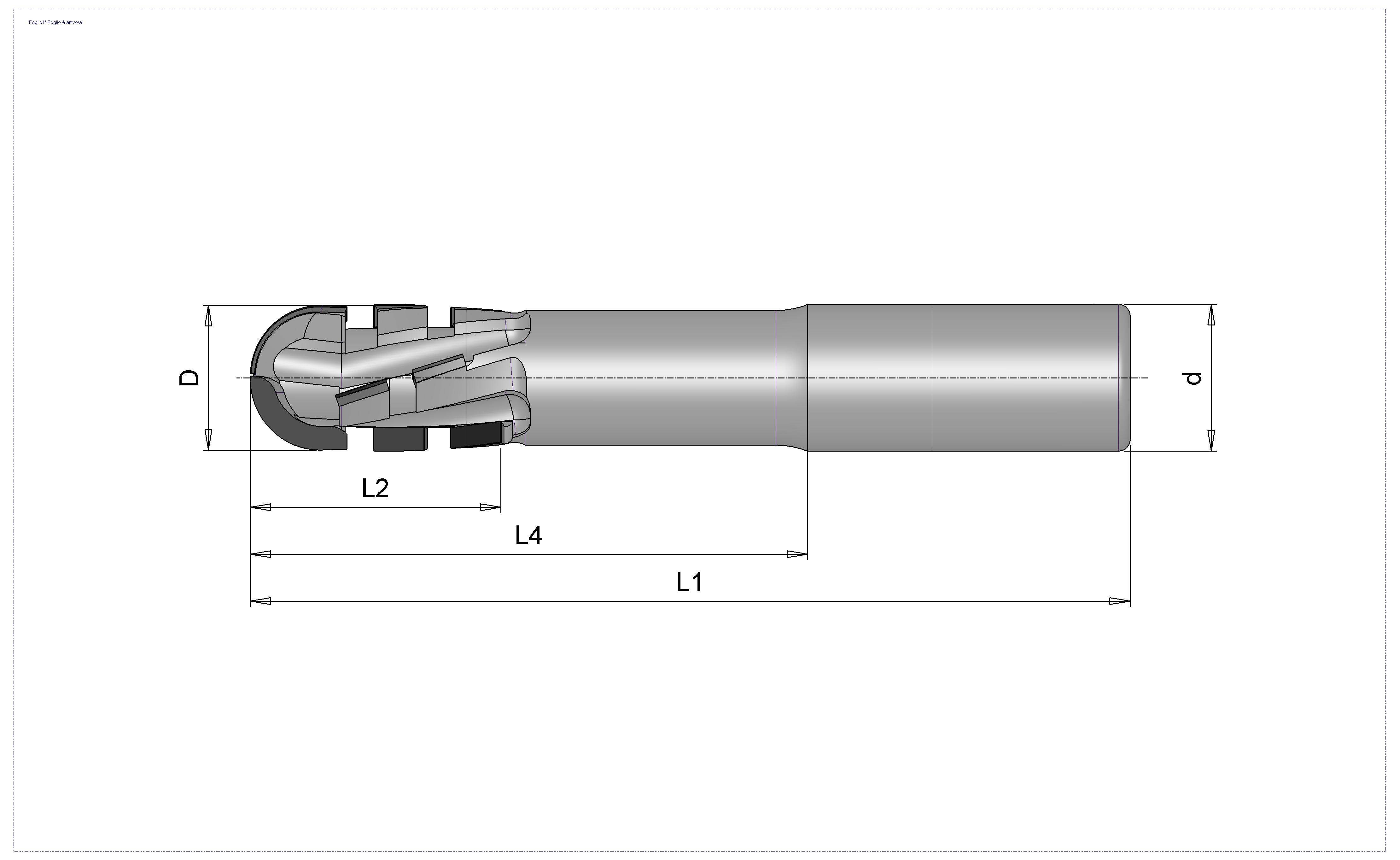

| D | d | L1 | L2 | L3 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 20,00 | 20,00 | 150 | 30,00 | 50,00 | 2+2 | Available in 4 weeks | 1.222,00 € | AM28010 |
| 25,00 | 25,00 | 150 | 50,00 | 50,00 | 2+2 | Available in 4 weeks | 1.752,40 € | AM28015 |
| 32,00 | 25,00 | 150 | 50,00 | 50,00 | 2+2 | Available in 4 weeks | 1.960,40 € | AM28020 |
| 19,05 | 19,05 | 152,40 | 30,00 | 50,80 | 2+2 | Available in 4 weeks | 1.214,20 € | AM28025 |
