AeroDrill 101
Price range: 304,72 € through 549,12 €

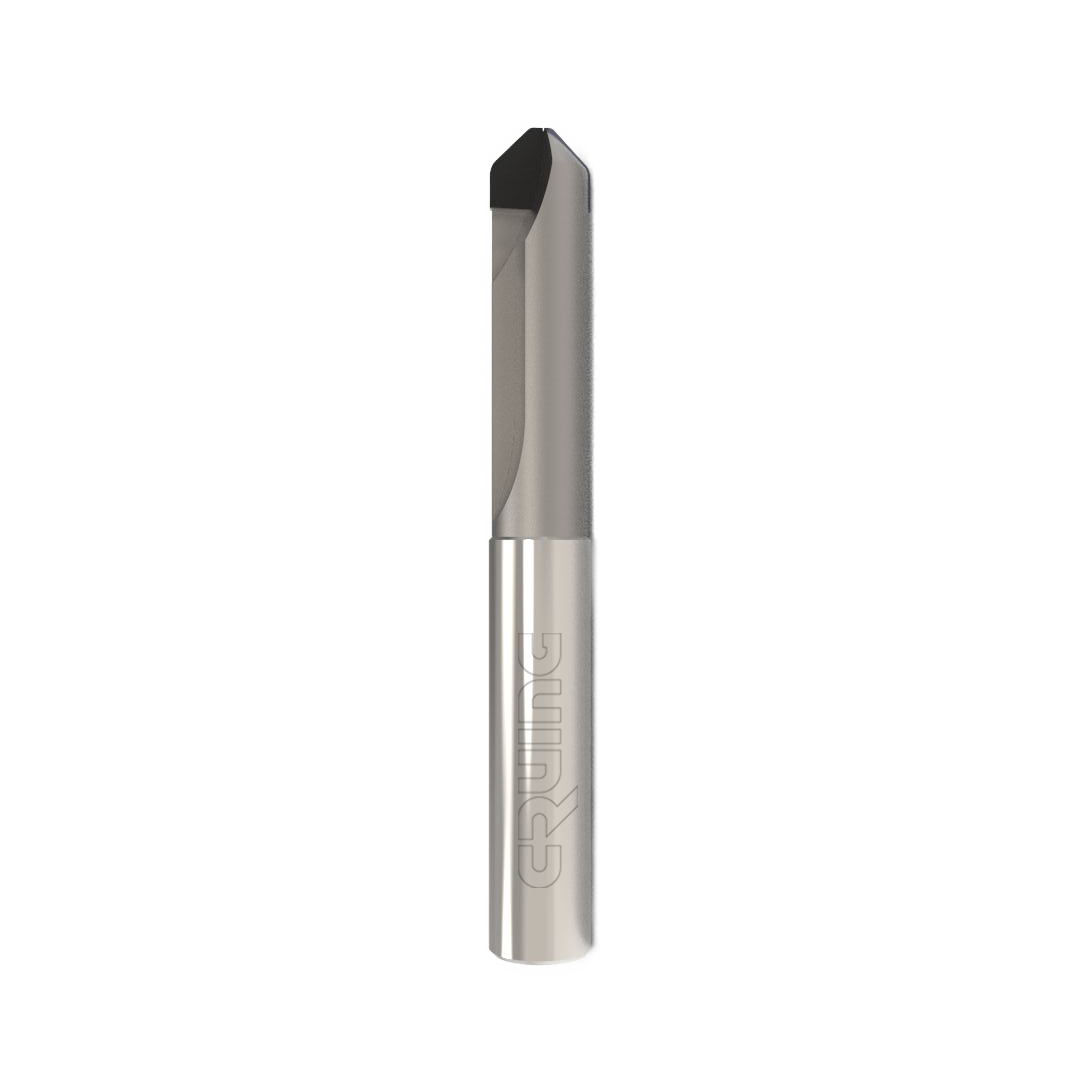

Z2 PCD Straight Drill
ø: 3-16mm
Technical features
- Solid carbide body
- High density PCD cutting edges: 2
- Helix angle: 0°
- Cutting tolerance: +/- 0.01
- Balance: G2.5 < 1 gr/mm
- Shank form: HA (DIN 6535)
- Diameters: from 3.0 to 20.0 mm on request
- With cooling slots on request
Applications
- Solid carbide straight fluted drill with 2 PCD cutting edges for CNC automated drilling of CFRP and hard composite materials

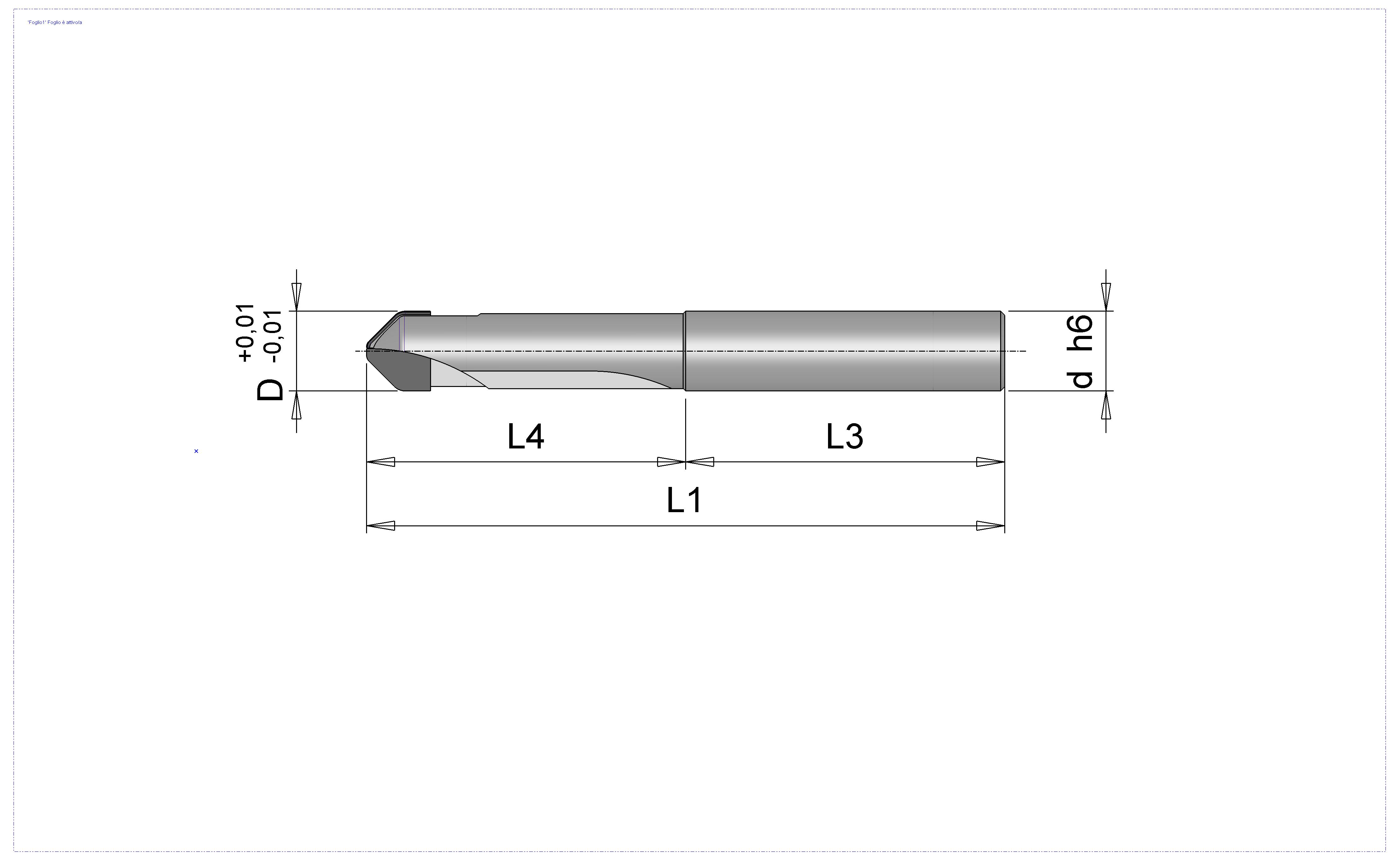

| D | d | L1 | L3 | L4 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 8,80 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 423,28 € | AD101165 |
| 9,00 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 423,28 € | AD101170 |
| 9,00 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 407,68 € | AD101175 |
| 9,50 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 407,68 € | AD101180 |
| 9,53 | 9,53 | 82,55 | 44,45 | 38,10 | 2 | Available in 4 weeks | 401,44 € | AD101185 |
| 10,00 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 407,68 € | AD101190 |
| 10,20 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 461,76 € | AD101195 |
| 10,50 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 461,76 € | AD101200 |
| 10,80 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 461,76 € | AD101205 |
| 11,00 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 461,76 € | AD101210 |
| 11,20 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 455,52 € | AD101215 |
| 11,50 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 455,52 € | AD101220 |
| 11,80 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 455,52 € | AD101225 |
| 12,00 | 12,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 455,52 € | AD101230 |
| 12,20 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 504,40 € | AD101235 |
| 12,70 | 12,70 | 82,55 | 44,45 | 38,10 | 2 | Available in 4 weeks | 452,40 € | AD101245 |
| 12,80 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 504,40 € | AD101250 |
| 13,00 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 504,40 € | AD101255 |
| 13,20 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 498,16 € | AD101260 |
| 13,50 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 498,16 € | AD101265 |
| 13,80 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 498,16 € | AD101270 |
| 14 | 14,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 498,16 € | AD101275 |
| 14,20 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 549,12 € | AD101280 |
| 14,50 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 549,12 € | AD101285 |
| 14,80 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 549,12 € | AD101290 |
| 15,00 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 549,12 € | AD101295 |
| 15,20 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 542,88 € | AD101300 |
| 15,50 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 542,88 € | AD101305 |
| 15,80 | 16,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 542,88 € | AD101310 |
| 15,88 | 15,88 | 82,55 | 44,45 | 38,10 | 2 | Available in 4 weeks | 504,40 € | AD101315 |
| 7,93 | 7,93 | 82,55 | 44,45 | 38,10 | 2 | Available in 4 weeks | 378,56 € | AD101145 |
| 8,00 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 381,68 € | AD101150 |
| 8,10 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 423,28 € | AD101155 |
| 8,50 | 10,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 423,28 € | AD101160 |
| 7,80 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 381,68 € | AD101140 |
| 5,10 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 342,16 € | AD101075 |
| 5,20 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 342,16 € | AD101080 |
| 5,50 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 342,16 € | AD101085 |
| 5,55 | 6,35 | 76,20 | 44,45 | 31,75 | 2 | Available in 4 weeks | 346,32 € | AD101090 |
| 5,80 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 342,16 € | AD101095 |
| 6,00 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 342,16 € | AD101100 |
| 6,10 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 397,28 € | AD101105 |
| 6,35 | 6,35 | 82,55 | 44,45 | 38,10 | 2 | Available in 4 weeks | 359,84 € | AD101110 |
| 6,50 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 397,28 € | AD101115 |
| 6,80 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 397,28 € | AD101120 |
| 7,00 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 397,28 € | AD101125 |
| 7,10 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 381,68 € | AD101130 |
| 7,50 | 8,00 | 80 | 40,00 | 40 | 2 | Available in 4 weeks | 381,68 € | AD101135 |
| 3,30 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101025 |
| 3,50 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available (3 pcs.) | 320,32 € | AD101030 |
| 3,80 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101035 |
| 3,96 | 4,76 | 38,10 | 25,40 | 2 | Available in 4 weeks | 317,20 € | AD101040 | |
| 4,00 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101045 |
| 4,10 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 352,56 € | AD101050 |
| 4,20 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 352,56 € | AD101055 |
| 4,50 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 352,56 € | AD101060 |
| 4,76 | 4,76 | 76,20 | 44,45 | 31,75 | 2 | Available in 4 weeks | 330,72 € | AD101065 |
| 5,00 | 6,00 | 70,00 | 40,00 | 30 | 2 | Available in 4 weeks | 352,56 € | AD101070 |
| 3 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101005 |
| 3,10 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101010 |
| 3,18 | 3,18 | 38,10 | 25,40 | 2 | Available in 4 weeks | 304,72 € | AD101015 | |
| 3,20 | 4,00 | 60,00 | 30,00 | 30 | 2 | Available in 4 weeks | 320,32 € | AD101020 |
