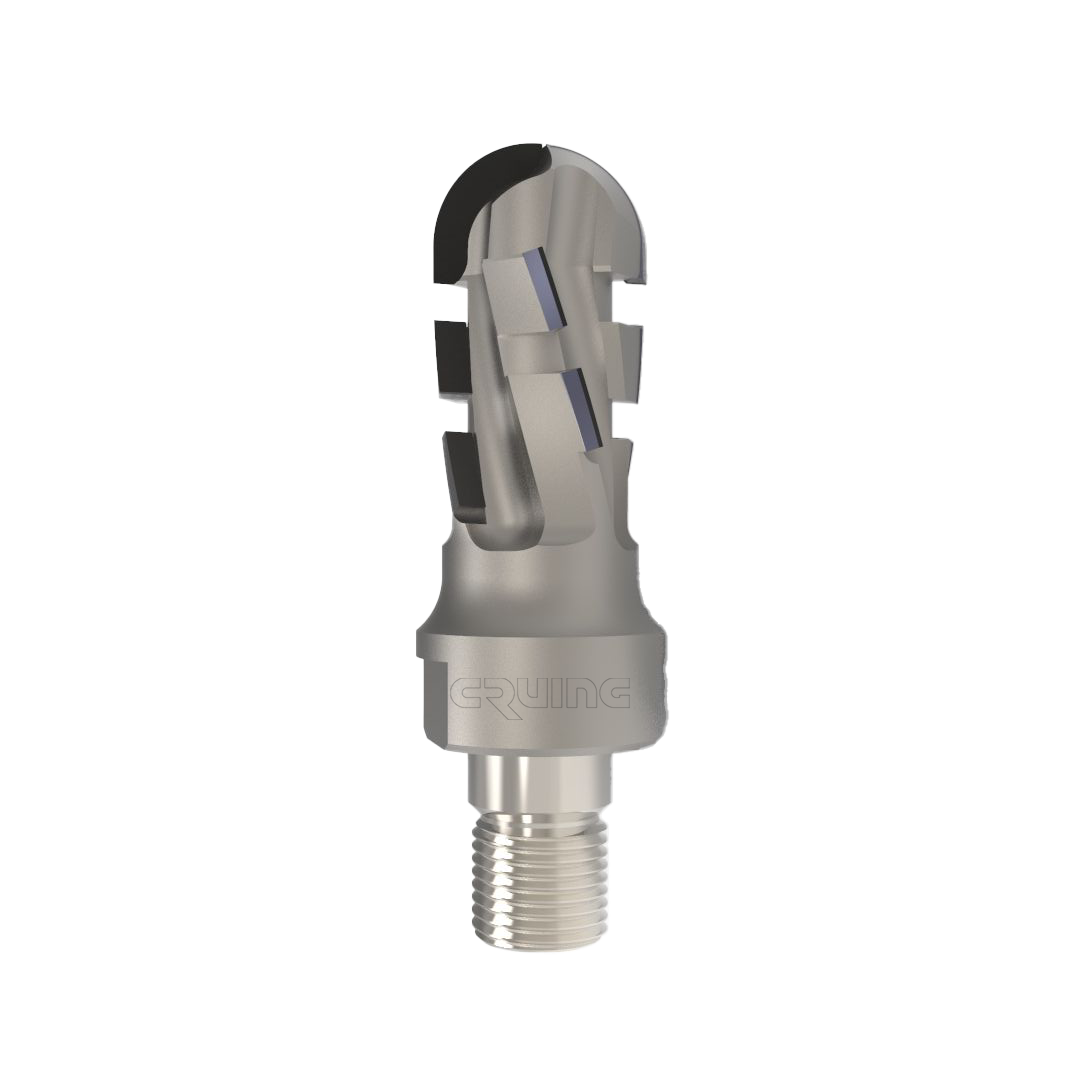

AeroMill M29
Price range: 852,80 € through 1.565,20 €
Z2+2 PCD Ball Nose End Mill
ø: 25-40mm
Technical features
- Heavy metal tungsten alloy body
- High density PCD cutting edges: 2+2
- Helix angle: 10° – 25°
- Cutting tolerance: +/- 0.02
- Balance: G2.5 < 1 gr/mm
- Shank form: thread
- Diameters: from 25.0 to 40.0 mm
- “Easy-Flow” design for more efficient dust and chip evacuation
- Customised multi-role cutters on request
Applications
- Heavy metal tungsten alloy ball nose end mill with 2+2 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for multi-role operations of profiling and pre-finishing (ball nose cutter without axial angle and pre-finishing cutter with converging axial angle).

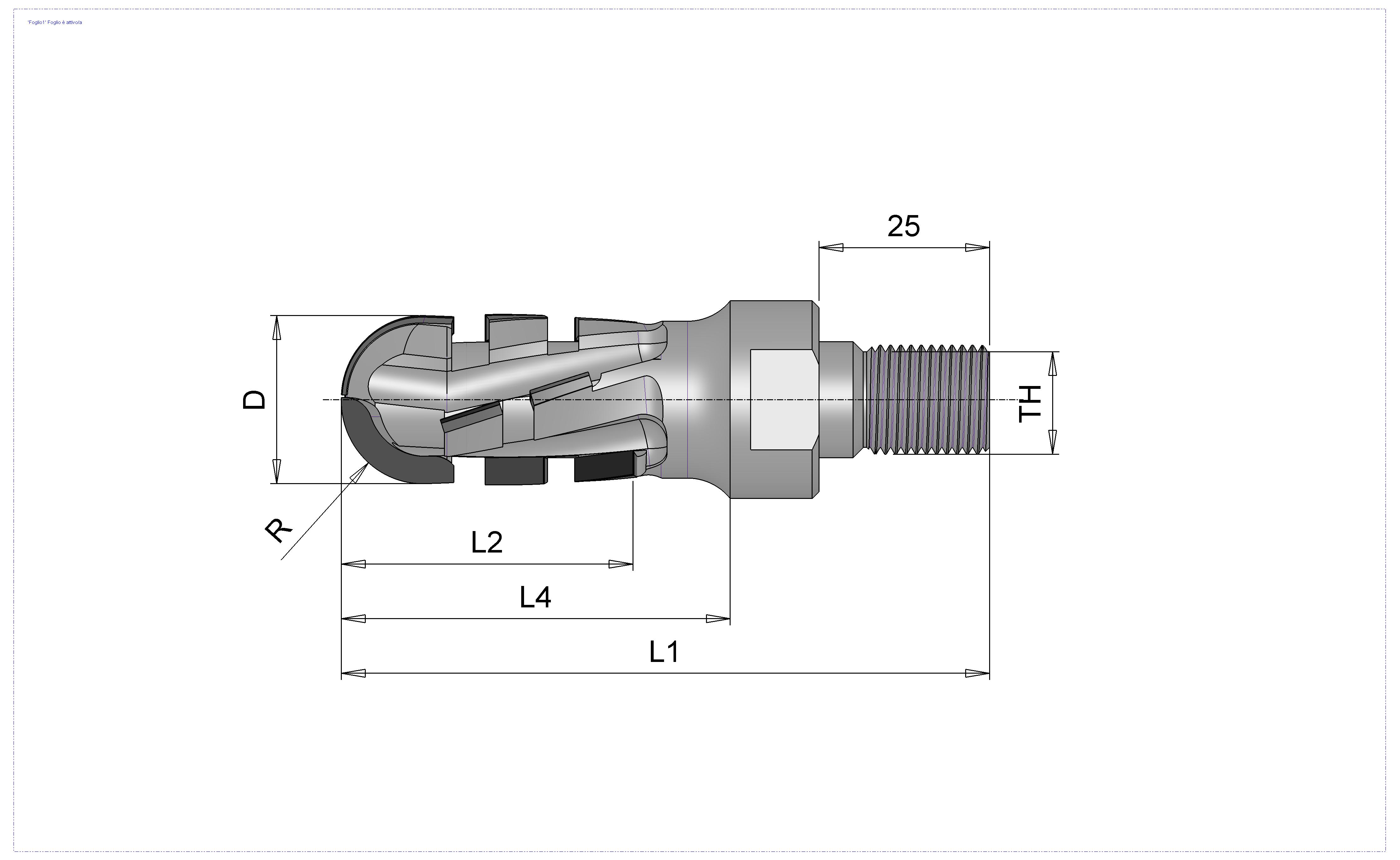

| D | d | L1 | L2 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|
| 40,00 | M16 | 90,00 | 30,00 | 2+2 | Available in 4 weeks | 852,80 € | AM29020 |
| 25,00 | M16 | 90,00 | 50,00 | 2+2 | Available in 4 weeks | 1.432,60 € | AM29010 |
| 32,00 | M16 | 90,00 | 50,00 | 2+2 | Available in 4 weeks | 1.565,20 € | AM29015 |
