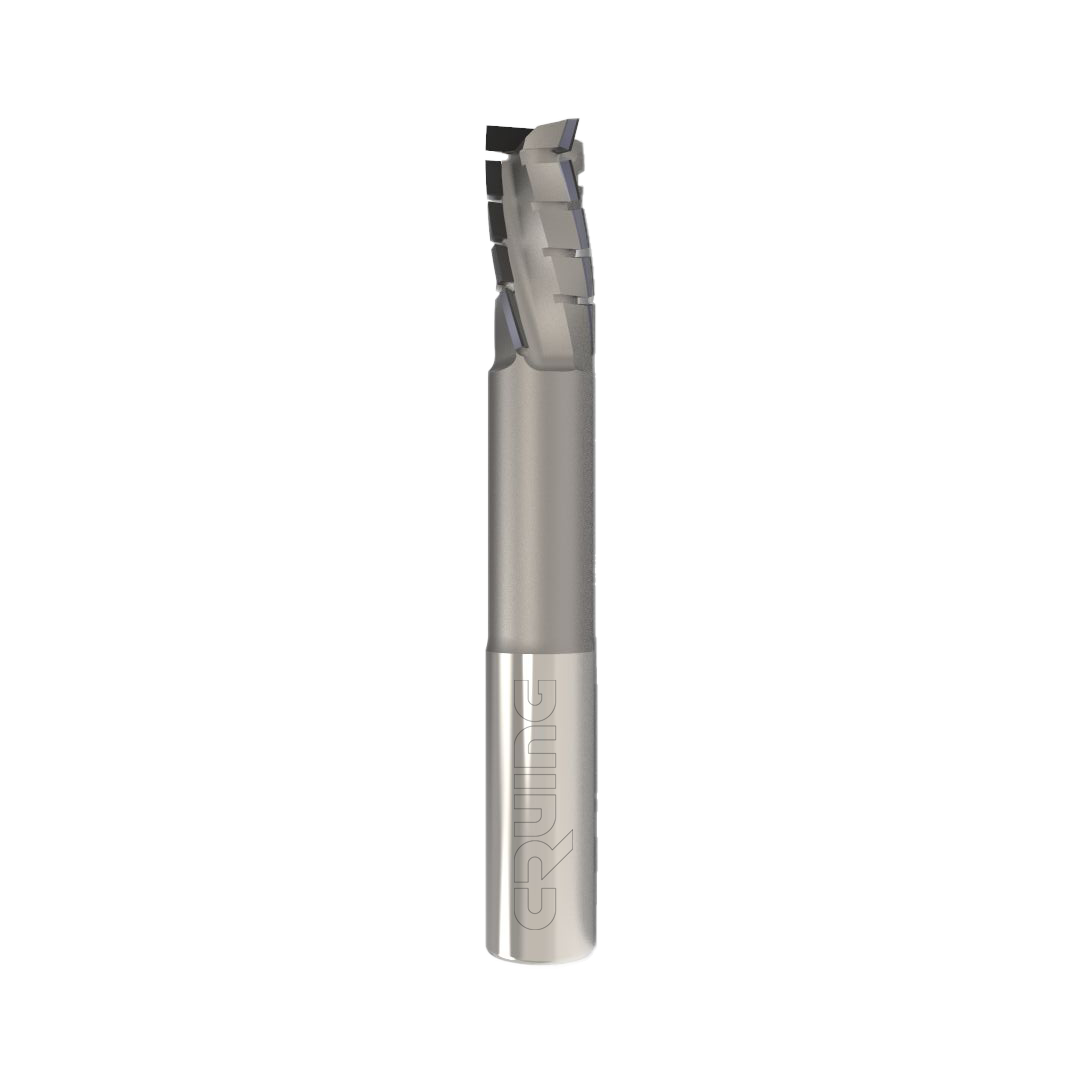

AeroMill M18
Price range: 751,40 € through 759,20 €
Z3 PCD End Mill
ø: 12.0-12.7mm
Technical features
- Heavy metal tungsten alloy body
- High density PCD cutting edges: 3
- Helix angle: 0° – 25°
- Cutting tolerance: +/- 0.01
- Balance: G2.5 < 1 gr/mm
- Shank form: HA (DIN 6535)
- Diameters: from 12.0 to 12.7 mm
- “Easy-Flow” design for more efficient dust and chip evacuation
- Available with through coolant, if operating with Basic and Reach tool-holders
- Customised pre-finishing cutters on request
Applications
- Heavy metal tungsten alloy end mill with 3 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for pre-finishing and large volume removal operations.

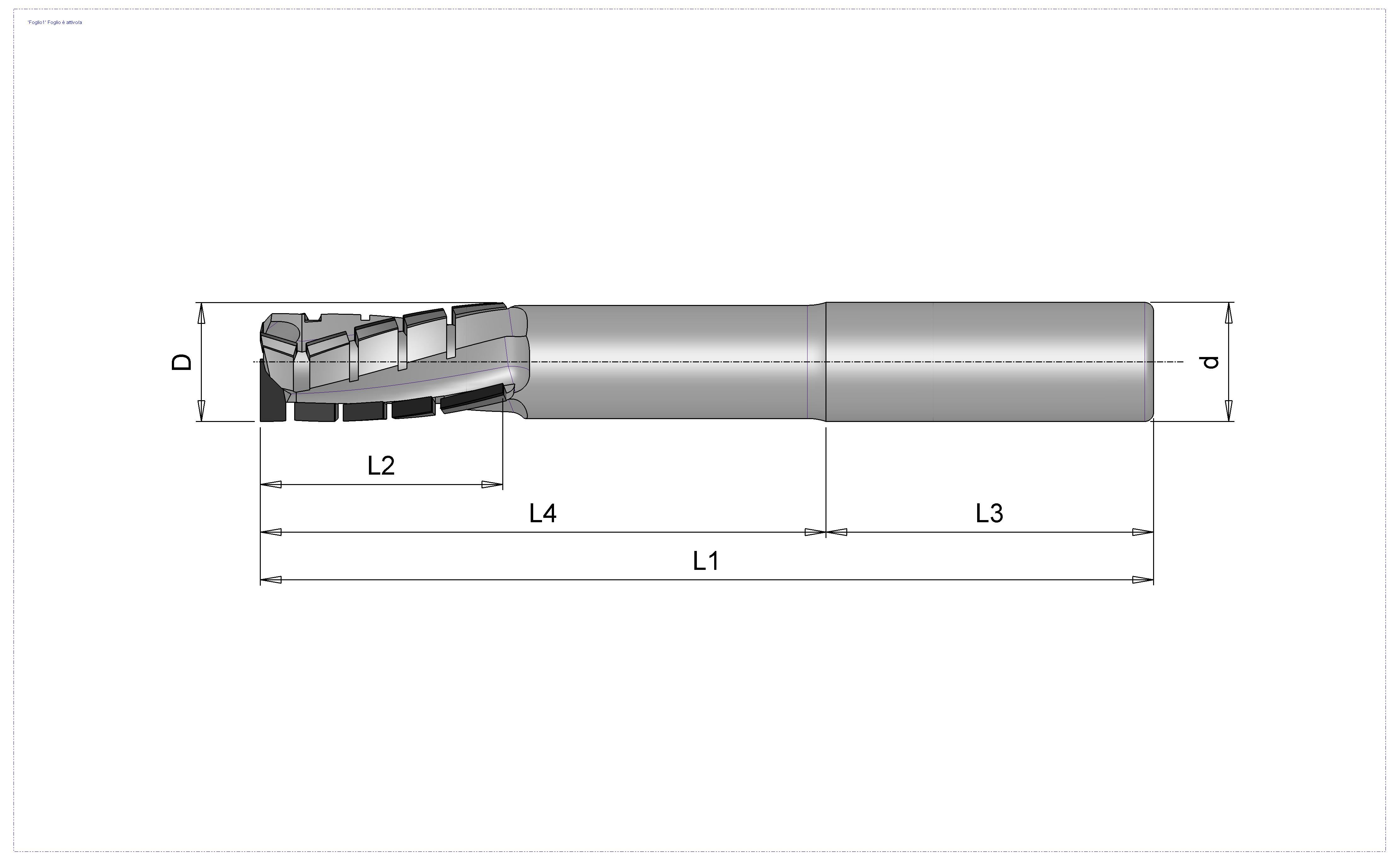

| D | d | L1 | L2 | L3 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 12,00 | 12,00 | 75,00 | 15,00 | 40,00 | 3 | Available in 4 weeks | 751,40 € | AM18010 |
| 12,70 | 12,70 | 76,20 | 15,875 | 44,45 | 3 | Available in 4 weeks | 759,20 € | AM18015 |
