AeroMill M32

Name: AeroMill M32
SKU: AM32
Availability: OutOfStock

Price range: 626,60 € through 785,20 €

Z2/Z3 PCD End Mil

ø: 12-12.7mm

Technical features

Heavy metal tungsten alloy body
High density PCD cutting edges: 2/3
Helix angle: 0° – 5°
Cutting tolerance: +/- 0.01
Balance: G2.5 < 1 gr/mm
Shank form: HSK20C
Diameters: from 12.0 to 12.7 mm on request
For use with Aerotech System for “Air Cooled Dry Cutting” (see Aerotech section)
Customised “bull nose” finishing cutters on request

Applications

Heavy metal tungsten alloy end mill with 2 or 3 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for simultaneous edge finishing and inside corner rounding operations.

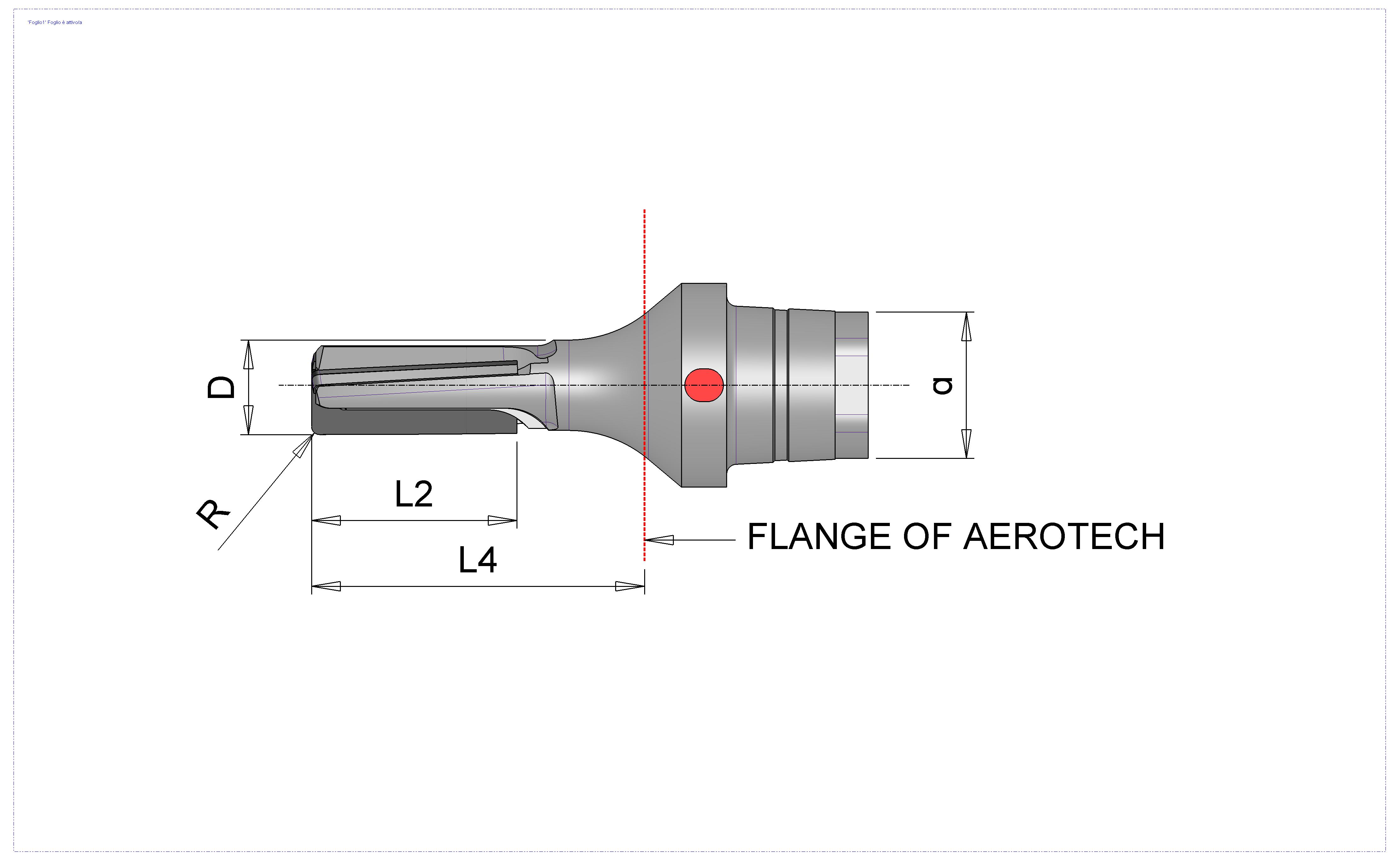

D	d	L2	L4	Z	R	Stock	Price	Code
12,70	HSK20C	19,05	24,05	3	0,76	Available in 4 weeks	772,20 €	AM32155
12	HSK20C	15,00	20,00	2	0,75	Available in 4 weeks	626,60 €	AM32015
12	HSK20C	15,00	20,00	3	0,75	Available in 4 weeks	707,20 €	AM32035
12	HSK20C	20,00	25,00	2	0,75	Available in 4 weeks	681,20 €	AM32055
12	HSK20C	20,00	25,00	3	0,75	Available in 4 weeks	785,20 €	AM32075
12,70	HSK20C	15,875	20,875	2	0,76	Available in 4 weeks	637,00 €	AM32095
12,70	HSK20C	15,875	20,875	3	0,76	Available in 4 weeks	720,20 €	AM32115
12,70	HSK20C	15,875	20,875	3	0,76	Available in 4 weeks	670,80 €	AM32135
