AeroMill M21
Price range: 442,00 € through 938,60 €

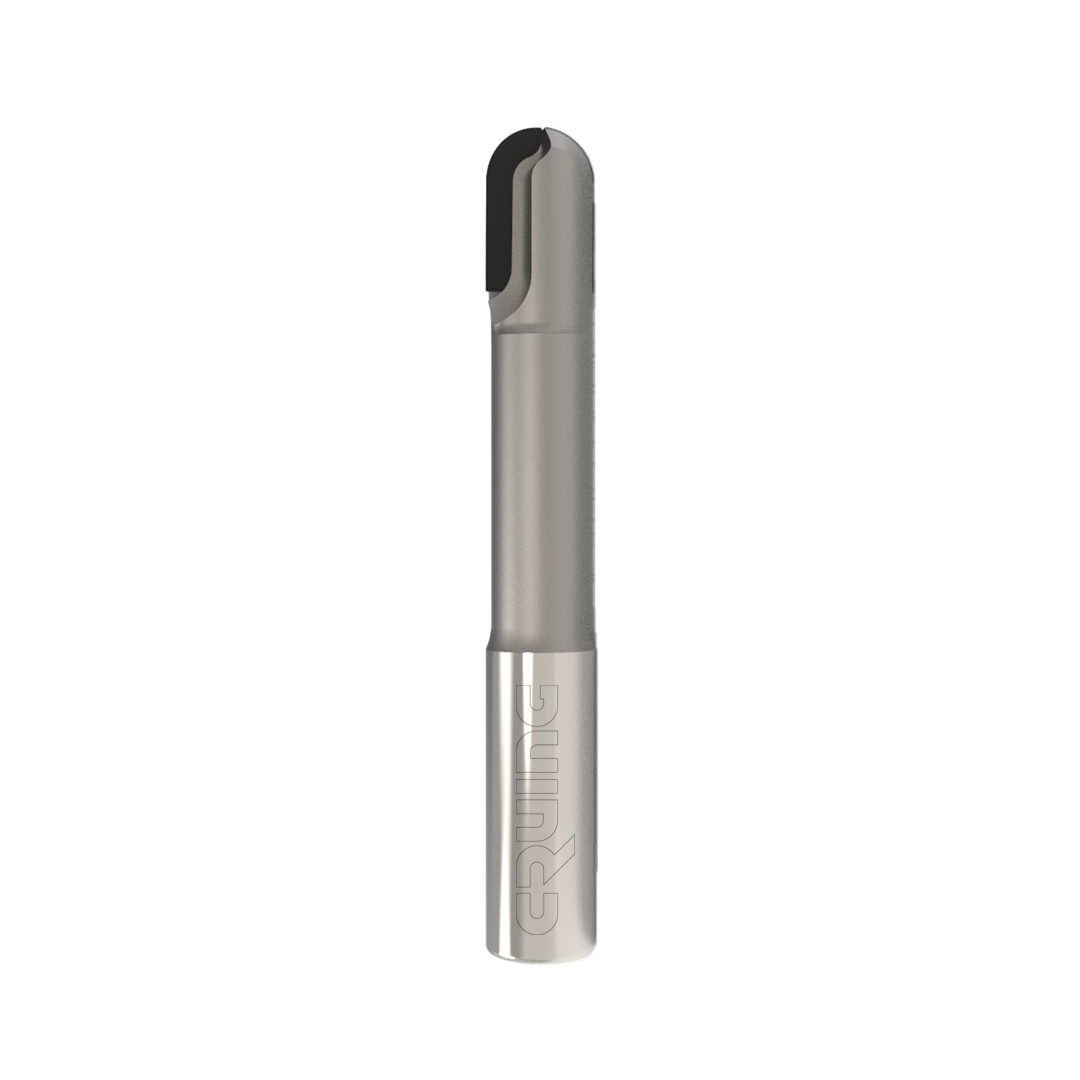

Z2/Z3 PCD Ball Nose (HMTA body)
ø: 10-20mm
Technical features
- Heavy metal tungsten alloy body
- High density PCD cutting edges: 2/3
- Helix angle: 0° – 5°
- Cutting tolerance: +/- 0.01
- Balance: G2.5 < 1 gr/mm
- Shank form: HA (DIN 6535)
- Diameters: from 10.0 to 20.0 mm on request
- Customised ball nose cutters on request
Applications
- Heavy metal tungsten alloy ball nose end mill with 2 or 3 PCD cutting edges for CNC automated cutting of CFRP, aluminium and lightweight metals Particularly indicated for high speed precision machining of 3-dimensional contoured shaped components (slotting & profiling).

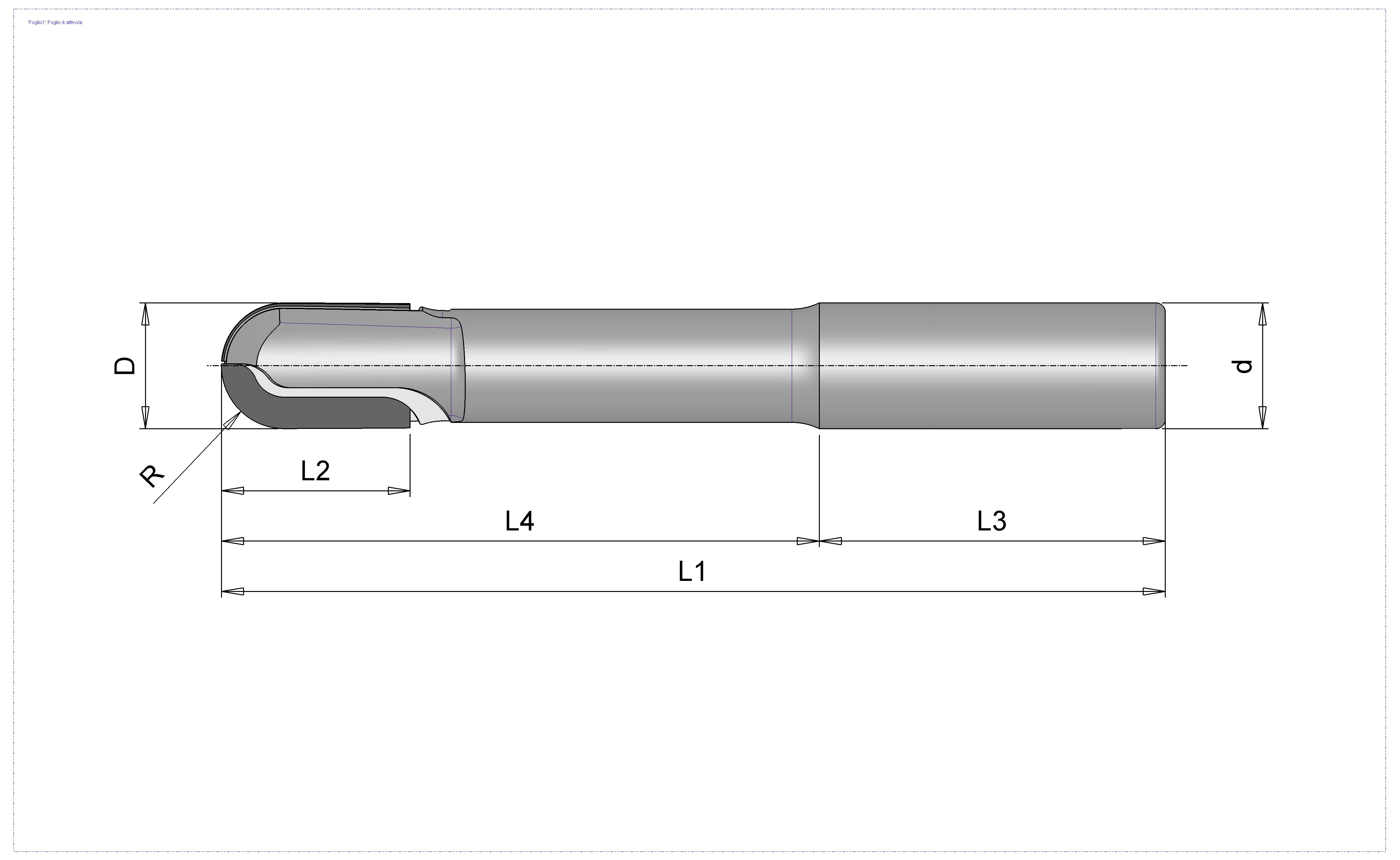

| D | d | L1 | L2 | L3 | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|
| 10,00 | 10,00 | 100 | 8,00 | 45,00 | 2 | Available in 4 weeks | 442,00 € | AM21020 |
| 12,00 | 12,00 | 100 | 9,00 | 50,00 | 2 | Available in 4 weeks | 455,00 € | AM21030 |
| 12,00 | 12,00 | 100 | 9,00 | 50,00 | 3 | Available in 4 weeks | 517,40 € | AM21040 |
| 16,00 | 16,00 | 100 | 10,00 | 50,00 | 2 | Available in 4 weeks | 533,00 € | AM21050 |
| 16,00 | 16,00 | 100 | 10,00 | 50,00 | 3 | Available in 4 weeks | 608,40 € | AM21060 |
| 20,00 | 20,00 | 100 | 12,00 | 50,00 | 2 | Available (6 pcs.) | 826,80 € | AM21070 |
| 20,00 | 20,00 | 100 | 12,00 | 50,00 | 3 | Available in 4 weeks | 938,60 € | AM21080 |
