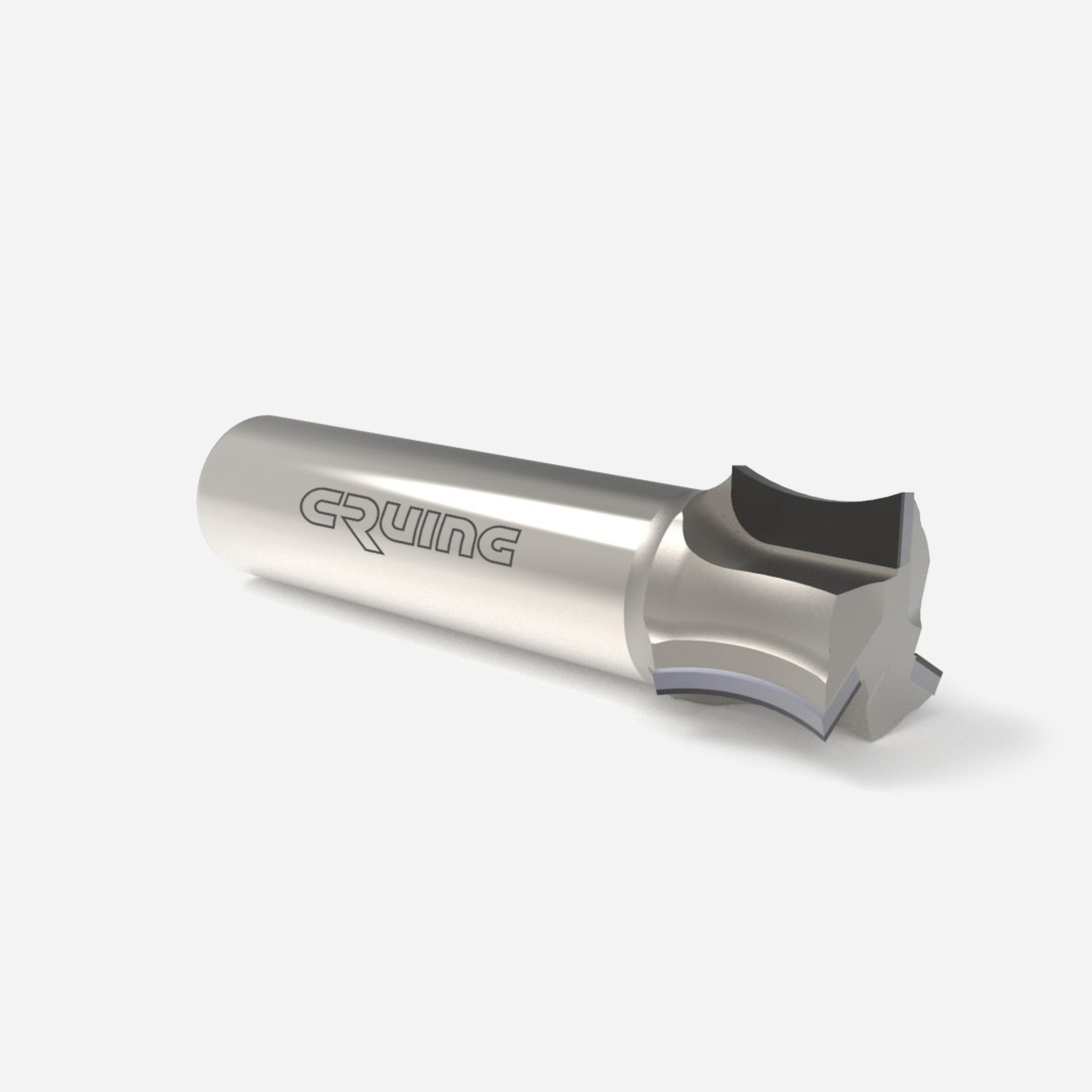

Z3 Radius Cutter
419,46 €
Z3 Radius Cutter for solid core panels with Cylindrical Shank
ø:16mm
Technical features
- Neutral shear angle
- 3 PCD cutting edges
- Polished face
- Steel body
- Resharpenable cutter (max 4 times)
- 90° V-Groove to 90° fold
- 135° V-Groove to 45° fold
- 90° D1: 3mm; 135° D1: 2mm
Applications
- Groove Cutter 90°-135° with Cylindrical Shank for CNC routers for V-grooves in aluminium composite materials (Alucobond®, Dibond®, etc.)

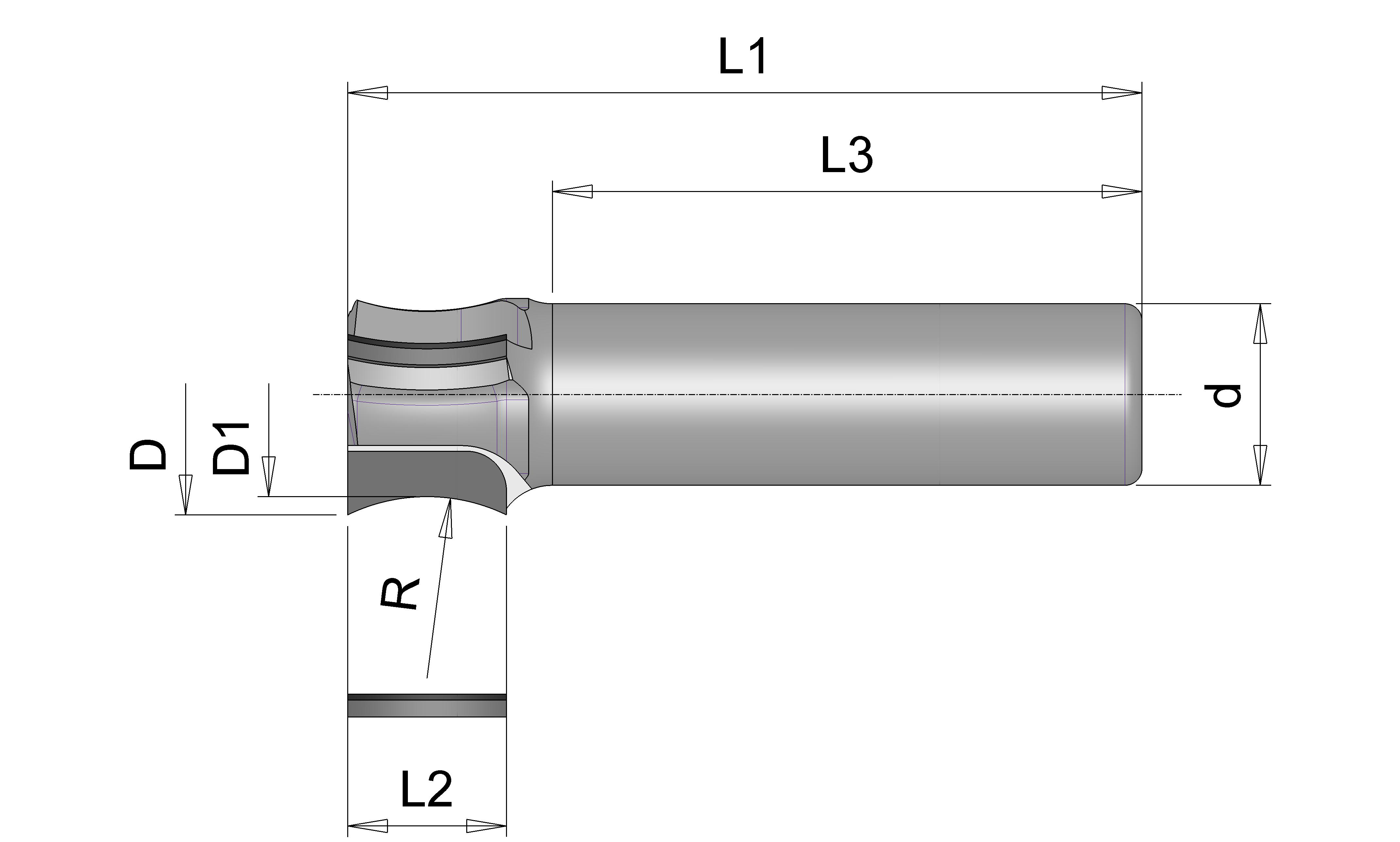

| R | D | D1 | L2 | d | L3 | L1 | Z | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 21,3 | 18 | 14 | 16 | 45 | 65 | 3 | RH | Available in 4 weeks | 419,46 € | DPSC305D |
