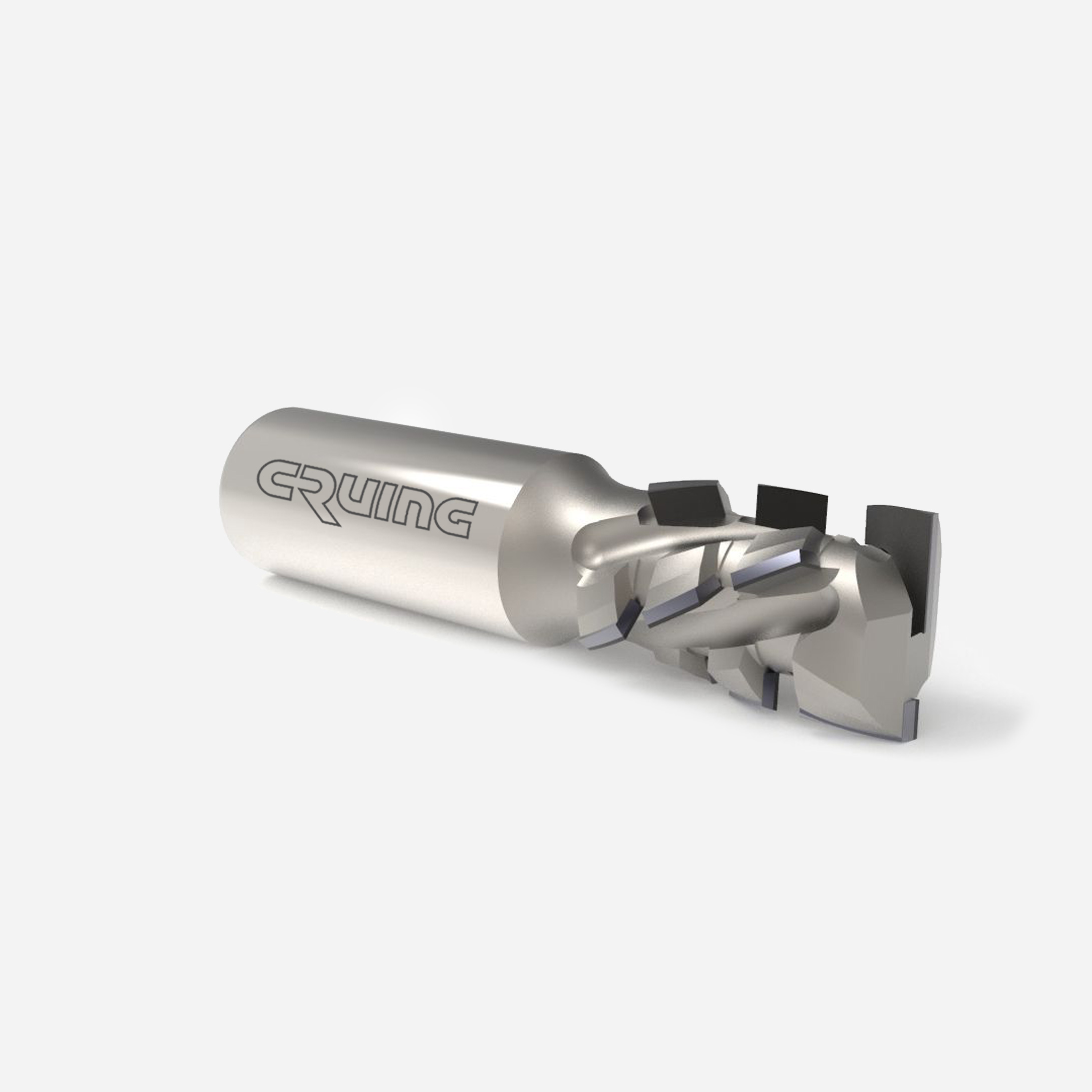

Mach 2 30° Neg
Price range: 405,60 € through 1.216,80 €
Z2+2 PCD Router
ø:16-25mm
Technical features
- feed speed: up to 15 mt/min
- shear angle: 30°
- 2+2 PCD cutting edges
- design: 4 flute
- Steel body
- DP plunge tip for diagonal plunge-cutting
- High performance
- First tip positive (L+: 11mm), all the others negative
- Resharpenable router (max 8 times)
Applications
- Cutter with Cylindrical Shank, first tip positive all the others negative, cutting angle 30° steel body, for CNC routers for jointing, rabbeting and copying in Particleboards, MDF boards, Laminates, HPL and veneered panels, Solid hard woods

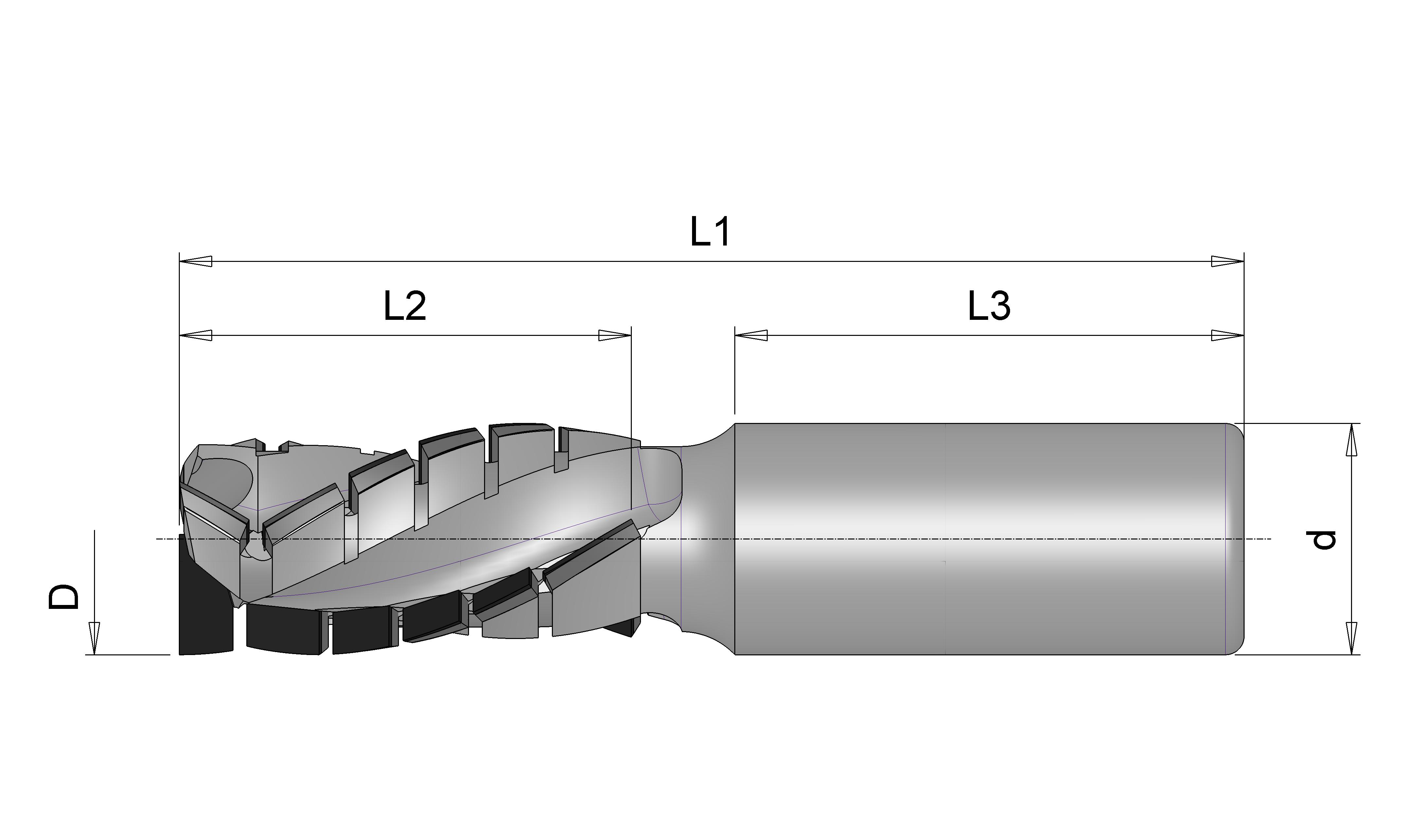

| D | d | Z | L2 | L1 | L3 | L+ | Rotation | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 25 | 2+2 | 57 | 122 | 55 | 11 | LH | Available (1 pcs.) | 946,40 € | DP230N090S |
| 25 | 25 | 2+2 | 57 | 122 | 55 | 11 | RH | Available (3 pcs.) | 946,40 € | DP230N090D |
| 25 | 25 | 2+2 | 63 | 128 | 55 | 11 | LH | Available (2 pcs.) | 1.036,54 € | DP230N095S |
| 25 | 25 | 2+2 | 63 | 128 | 55 | 11 | RH | Available (4 pcs.) | 1.036,54 € | DP230N095D |
| 25 | 25 | 2+2 | 68 | 133 | 55 | 11 | LH | Available (1 pcs.) | 1.126,00 € | DP230N100S |
| 25 | 25 | 2+2 | 68 | 133 | 55 | 11 | RH | Available (1 pcs.) | 1.126,00 € | DP230N100D |
| 25 | 25 | 2+2 | 72 | 133 | 55 | 11 | LH | Available in 4 weeks | 1.216,80 € | DP230N105S |
| 25 | 20 | 2+2 | 72 | 133 | 55 | 11 | RH | Available in 4 weeks | 1.216,80 € | DP230N105D |
| 25 | 25 | 2+2 | 52 | 117 | 55 | 11 | LH | Available in 4 weeks | 856,26 € | DP230N085S |
| 25 | 25 | 2+2 | 52 | 117 | 55 | 11 | RH | Available (2 pcs.) | 856,26 € | DP230N085D |
| 20 | 20 | 2+2 | 31 | 91 | 50 | 11 | LH | Available (6 pcs.) | 495,74 € | DP230N030S |
| 20 | 20 | 2+2 | 31 | 91 | 50 | 11 | RH | Available (2 pcs.) | 495,74 € | DP230N030D |
| 20 | 20 | 2+2 | 43 | 101 | 50 | 11 | LH | Available (1 pcs.) | 676,00 € | DP230N040S |
| 20 | 20 | 2+2 | 43 | 101 | 50 | 11 | RH | Available (5 pcs.) | 676,00 € | DP230N040D |
| 22 | 20 | 2+2 | 36 | 96 | 55 | 11 | LH | Available in 4 weeks | 585,86 € | DP230N055S |
| 22 | 20 | 2+2 | 36 | 96 | 55 | 11 | RH | Available (3 pcs.) | 585,86 € | DP230N055D |
| 22 | 20 | 2+2 | 43 | 101 | 55 | 11 | LH | Available in 4 weeks | 676,00 € | DP230N060S |
| 22 | 20 | 2+2 | 43 | 101 | 55 | 11 | RH | Available in 4 weeks | 676,00 € | DP230N060D |
| 22 | 20 | 2+2 | 47 | 107 | 55 | 11 | LH | Available in 4 weeks | 766,14 € | DP230N065S |
| 22 | 20 | 2+2 | 47 | 107 | 55 | 11 | RH | Available in 4 weeks | 766,14 € | DP230N065D |
| 22 | 20 | 2+2 | 57 | 117 | 55 | 11 | LH | Available in 4 weeks | 946,40 € | DP230N070S |
| 22 | 20 | 2+2 | 57 | 117 | 55 | 11 | RH | Available (1 pcs.) | 946,40 € | DP230N070D |
| 22 | 25 | 2+2 | 43 | 106 | 55 | 11 | LH | Available in 4 weeks | 676,00 € | DP230N075S |
| 22 | 25 | 2+2 | 43 | 106 | 55 | 11 | RH | Available in 4 weeks | 676,00 € | DP230N075D |
| 25 | 25 | 2+2 | 47 | 112 | 55 | 11 | LH | Available in 4 weeks | 766,14 € | DP230N080S |
| 25 | 25 | 2+2 | 47 | 112 | 50 | 11 | RH | Available in 4 weeks | 766,14 € | DP230N080D |
| 16 | 16 | 2+2 | 26 | 85 | 50 | 11 | LH | Available in 4 weeks | 405,60 € | DP230N005S |
| 16 | 16 | 2+2 | 26 | 85 | 50 | 11 | RH | Available (2 pcs.) | 405,60 € | DP230N005D |
| 16 | 16 | 2+2 | 36 | 96 | 50 | 11 | LH | Available in 4 weeks | 585,86 € | DP230N015S |
| 16 | 16 | 2+2 | 36 | 96 | 50 | 11 | RH | Available in 4 weeks | 585,86 € | DP230N015D |
| 20 | 20 | 2+2 | 26 | 85 | 50 | 11 | LH | Available in 4 weeks | 405,60 € | DP230N025S |
| 20 | 20 | 2+2 | 26 | 85 | 50 | 11 | RH | Available in 4 weeks | 405,60 € | DP230N025D |
