Aeromill AM20
Price range: 82,42 € through 244,85 €

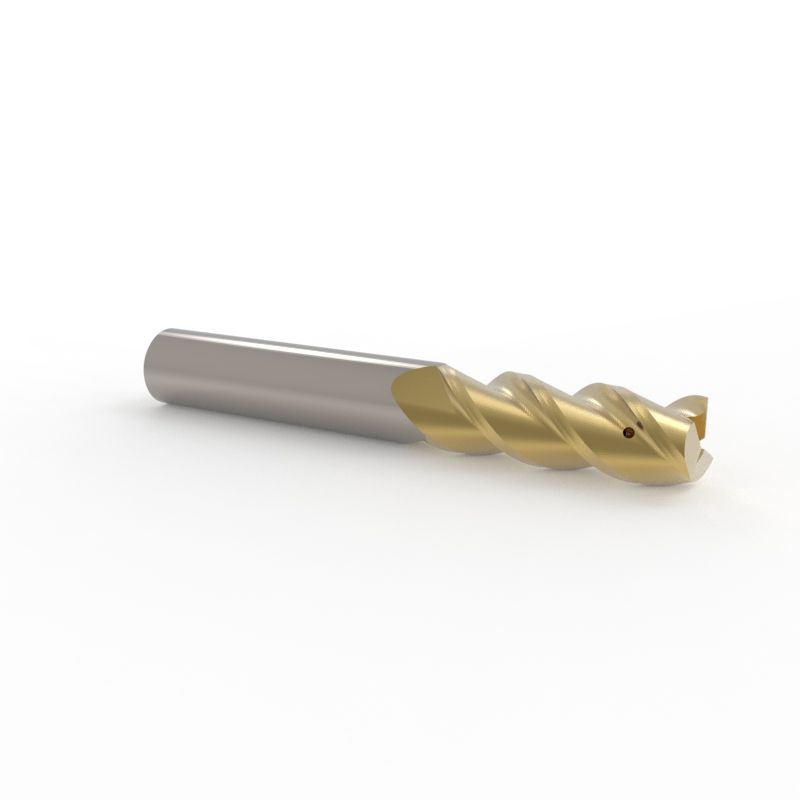

Z3 Toroidal Endmill with coolant slots
ø: 6-20mm
Technical features
- Solid carbide micro grain
- Diameter tolerance: h10
- Diameters: from 6.0 to 20.0 mm on request
- Shank form: HA (DIN 6535)
- With colling slots
Applications
- For aluminium and die-cast aluminium
- For plastic
- For aircraft aluminium
- For non ferrous metals

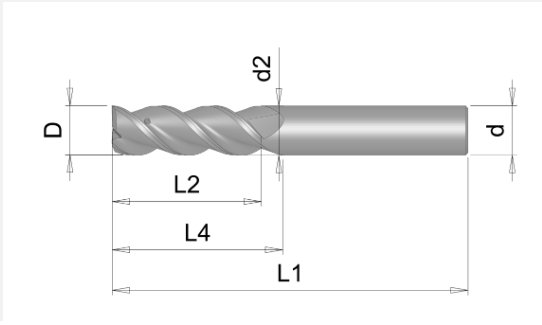

| D | d | L4 | L1 | L2 | Z | d2 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 21 | 57 | 13 | 3 | 5,50 | Available in 4 weeks | 82,42 € | AM20010 |
| 8,00 | 8,00 | 26 | 63 | 19 | 3 | 7,40 | Available in 4 weeks | 96,97 € | AM20015 |
| 10,00 | 8,00 | 30 | 72 | 22 | 3 | 9,20 | Available in 4 weeks | 123,64 € | AM20020 |
| 12,00 | 12,00 | 37 | 83 | 26 | 3 | 11,00 | Available in 4 weeks | 141,81 € | AM20025 |
| 16,00 | 16,00 | 42 | 92 | 32 | 3 | 15,00 | Available in 4 weeks | 193,94 € | AM20030 |
| 20,00 | 20,00 | 50 | 104 | 38 | 3 | 19,00 | Available in 4 weeks | 244,85 € | AM20035 |
