AeroDrill 801
Price range: 200,20 € through 416,00 €

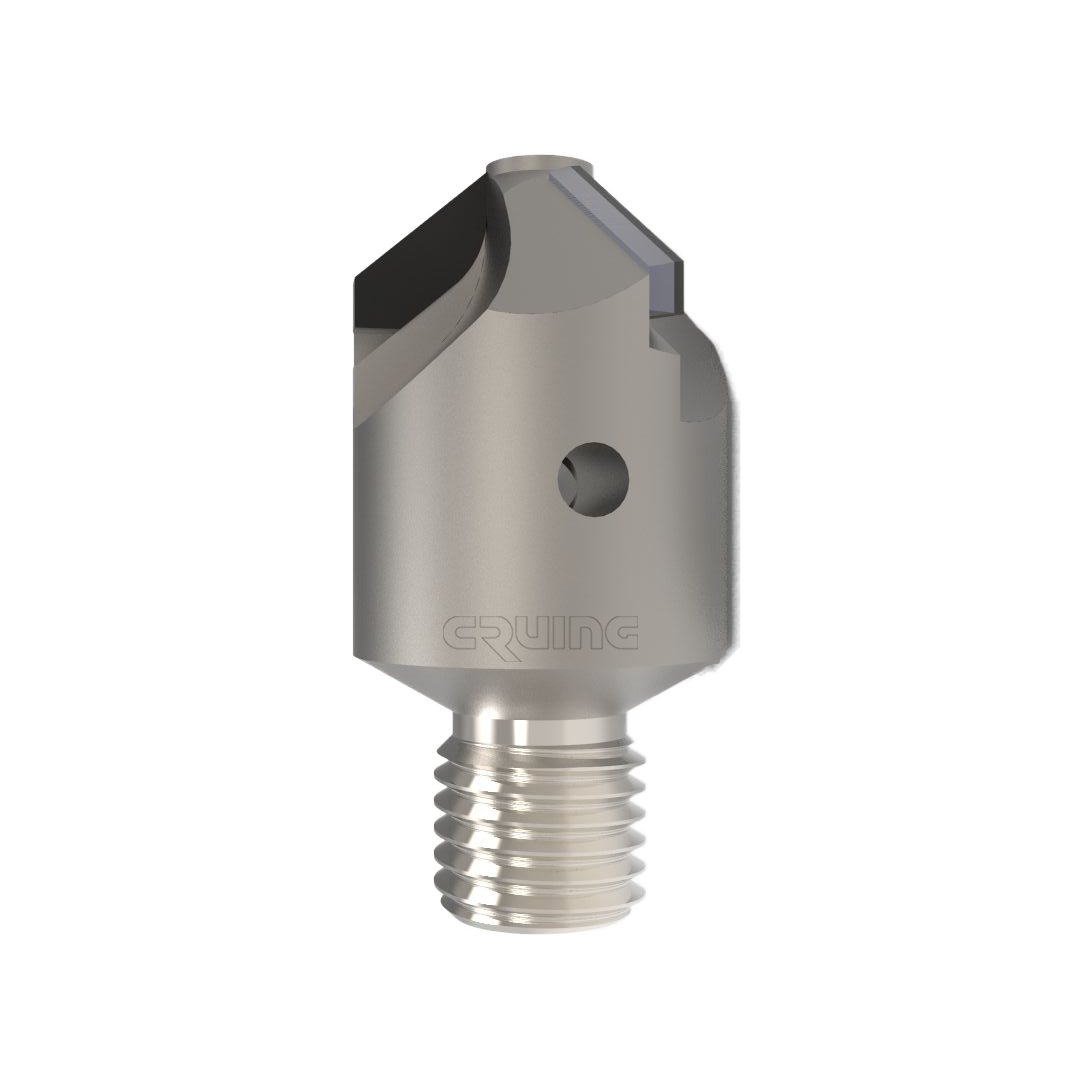

Z2/Z3 PCD Countersink with integral pilot
ø: 10-31.7mm
Technical features
- HSS body
- High density PCD cutting edges: 2/3
- Helix angle: 0°
- Cutting tolerance: +/- 0.05
- Balance: G2.5 < 1 gr/mm < 1 gr/mm
- Shank form: thread (metric or imperial)
- Pilot diameters: from 2.0 to 20.0 mm on request
- Countersink diameters: from 6.0 to 30.0 mm on request
- Available for 100° and 130° countersinking
- Available with customized pilot
Applications
- Countersink with integral pilot for hand-held drilling of CFRP and hard composite/metallic stack materials.

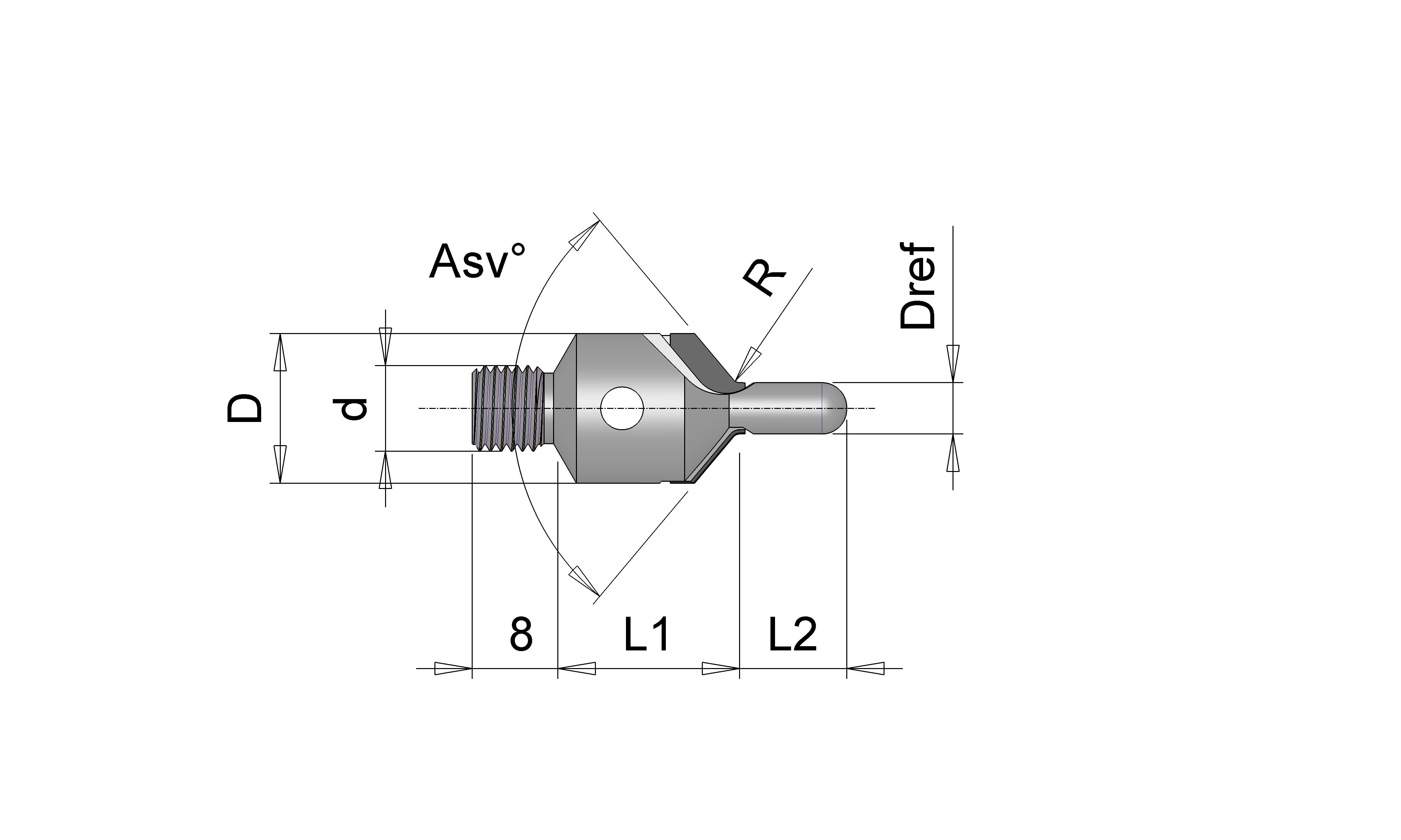

| D | Dref | ASV | L1 | R | L2 | d | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 15,87 | 6,35 | 130 | 20,32 | 0,762 | 7,62 | 1/4-28 | 3 | Available in 4 weeks | 265,20 € | AD801380 |
| 19,05 | 7,92 | 130 | 25,4 | 0,762 | 7,62 | 3/8-24 | 3 | Available in 4 weeks | 265,20 € | AD801385 |
| 22,22 | 7,92 | 130 | 25,4 | 1,016 | 9,525 | 3/8-24 | 3 | Available in 4 weeks | 286,00 € | AD801390 |
| 25,4 | 7,92 | 130 | 25,4 | 1,016 | 9,525 | 7/16-20 | 3 | Available in 4 weeks | 309,40 € | AD801395 |
| 31,7 | 7,92 | 130 | 31 | 1,27 | 9,525 | 7/16-20 | 3 | Available in 4 weeks | 379,60 € | AD801400 |
| 22,22 | 7,92 | 130 | 25,4 | 1,016 | 9,525 | 3/8-24 | 2 | Available in 4 weeks | 231,40 € | AD801325 |
| 25,4 | 7,92 | 130 | 25,4 | 1,016 | 9,525 | 7/16-20 | 2 | Available in 4 weeks | 247,00 € | AD801330 |
| 9,52 | 3,17 | 130 | 19,05 | 0,254 | 5,33 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801340 |
| 9,52 | 3,25 | 130 | 19,05 | 0,254 | 5,33 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801345 |
| 11,1 | 3,96 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801350 |
| 11,1 | 4,75 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801355 |
| 12,7 | 3,17 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 249,60 € | AD801360 |
| 12,7 | 3,25 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 249,60 € | AD801365 |
| 12,7 | 6,07 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801370 |
| 15,87 | 4,85 | 130 | 20,32 | 0,762 | 7,62 | 1/4-28 | 3 | Available in 4 weeks | 275,60 € | AD801375 |
| 19,05 | 7,92 | 130 | 25,4 | 0,762 | 7,62 | 3/8-24 | 2 | Available in 4 weeks | 215,80 € | AD801320 |
| 9,52 | 3,25 | 100 | 19,05 | 0,254 | 5,33 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801150 |
| 11,1 | 3,96 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 208,00 € | AD801155 |
| 11,1 | 4,75 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801160 |
| 12,7 | 3,17 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 215,80 € | AD801165 |
| 12,7 | 3,25 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 215,80 € | AD801170 |
| 12,7 | 6,07 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801175 |
| 15,87 | 4,85 | 100 | 20,32 | 0,762 | 7,62 | 1/4-28 | 2 | Available in 4 weeks | 223,60 € | AD801180 |
| 15,87 | 6,35 | 100 | 20,32 | 0,762 | 7,62 | 1/4-28 | 2 | Available in 4 weeks | 215,80 € | AD801185 |
| 19,05 | 7,92 | 100 | 25,4 | 0,762 | 7,62 | 3/8-24 | 2 | Available in 4 weeks | 223,60 € | AD801190 |
| 22,22 | 7,92 | 100 | 25,4 | 1,016 | 9,525 | 3/8-24 | 2 | Available in 4 weeks | 239,20 € | AD801195 |
| 25,4 | 7,92 | 100 | 25,4 | 1,016 | 9,525 | 7/16-20 | 2 | Available in 4 weeks | 295,20 € | AD801200 |
| 31,7 | 7,92 | 100 | 31 | 1,27 | 9,525 | 7/16-20 | 2 | Available in 4 weeks | 327,60 € | AD801205 |
| 9,52 | 3,17 | 100 | 19,05 | 0,254 | 5,33 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801210 |
| 9,52 | 3,25 | 100 | 19,05 | 0,254 | 5,33 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801215 |
| 11,1 | 3,96 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 249,60 € | AD801220 |
| 11,1 | 4,75 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801225 |
| 12,7 | 3,17 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 265,20 € | AD801230 |
| 12,7 | 3,25 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 265,20 € | AD801235 |
| 12,7 | 6,07 | 100 | 19,05 | 0,508 | 6,35 | 1/4-28 | 3 | Available in 4 weeks | 239,20 € | AD801240 |
| 15,87 | 4,85 | 100 | 20,32 | 0,762 | 7,62 | 1/4-28 | 3 | Available in 4 weeks | 275,60 € | AD801245 |
| 15,87 | 6,35 | 100 | 20,32 | 0,762 | 7,62 | 1/4-28 | 3 | Available in 4 weeks | 265,20 € | AD801250 |
| 19,05 | 7,92 | 100 | 25,4 | 0,762 | 7,62 | 3/8-24 | 3 | Available in 4 weeks | 275,60 € | AD801255 |
| 22,22 | 7,92 | 100 | 25,4 | 1,016 | 9,525 | 3/8-24 | 3 | Available in 4 weeks | 296,40 € | AD801260 |
| 25,4 | 7,92 | 100 | 25,4 | 1,016 | 9,525 | 7/16-20 | 3 | Available in 4 weeks | 335,40 € | AD801265 |
| 31,7 | 7,92 | 100 | 31 | 1,27 | 9,525 | 7/16-20 | 3 | Available in 4 weeks | 416,00 € | AD801270 |
| 9,52 | 3,17 | 130 | 19,05 | 0,254 | 5,33 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801275 |
| 9,52 | 3,25 | 130 | 19,05 | 0,254 | 5,33 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801280 |
| 11,1 | 3,96 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801285 |
| 11,1 | 4,75 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801290 |
| 12,7 | 3,17 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 208,00 € | AD801295 |
| 12,7 | 3,25 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 208,00 € | AD8012300 |
| 12,7 | 6,07 | 130 | 19,05 | 0,508 | 6,35 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801305 |
| 15,87 | 4,85 | 130 | 20,32 | 0,762 | 7,62 | 1/4-28 | 2 | Available in 4 weeks | 223,60 € | AD801310 |
| 15,87 | 6,35 | 130 | 20,32 | 0,762 | 7,62 | 1/4-28 | 2 | Available in 4 weeks | 215,80 € | AD801315 |
| 14 | 3 | 100 | 19 | 0,5 | 6 | M8x1,0 | 3 | Available in 4 weeks | 275,60 € | AD801050 |
| 10 | 3 | 130 | 19 | 0,25 | 5 | M6x1,0 | 2 | Available in 4 weeks | 200,20 € | AD801075 |
| 17 | 4 | 100 | 20 | 0,75 | 7 | M8x1,0 | 3 | Available in 4 weeks | 296,40 € | AD801055 |
| 12 | 3 | 130 | 19 | 0,5 | 6 | M6x1,0 | 2 | Available in 4 weeks | 208,00 € | AD801080 |
| 19 | 6 | 100 | 25 | 0,75 | 7 | M8x1,0 | 3 | Available in 4 weeks | 296,40 € | AD801060 |
| 14 | 3 | 130 | 19 | 0,5 | 6 | M8x1,0 | 2 | Available in 4 weeks | 215,80 € | AD801085 |
| 22 | 8 | 100 | 25 | 1 | 10 | M8x1,0 | 3 | Available in 4 weeks | 296,40 € | AD801065 |
| 17 | 4 | 130 | 20 | 0,75 | 7 | M8x1,0 | 2 | Available in 4 weeks | 223,60 € | AD801090 |
| 25 | 8 | 100 | 25 | 0,25 | 10 | M8x1,0 | 3 | Available in 4 weeks | 325,00 € | AD801070 |
| 19 | 6 | 130 | 25 | 0,75 | 7 | M8x1,0 | 2 | Available in 4 weeks | 231,40 € | AD801095 |
| 22 | 8 | 130 | 25 | 1 | 10 | M8x1,0 | 2 | Available in 4 weeks | 231,40 € | AD801100 |
| 25 | 8 | 130 | 25 | 0,25 | 10 | M8x1,0 | 2 | Available in 4 weeks | 239,20 € | AD801105 |
| 10 | 3 | 130 | 19 | 0,254 | 5 | M6x1,0 | 3 | Available in 4 weeks | 239,20 € | AD801110 |
| 12 | 3 | 130 | 19 | 0,5 | 6 | M6x1,0 | 3 | Available in 4 weeks | 249,60 € | AD801115 |
| 14 | 3 | 130 | 19 | 0,5 | 6 | M8x1,0 | 3 | Available in 4 weeks | 265,20 € | AD801120 |
| 17 | 4 | 130 | 20 | 0,75 | 7 | M8x1,0 | 3 | Available in 4 weeks | 275,60 € | AD801125 |
| 19 | 6 | 130 | 25 | 0,75 | 7 | M8x1,0 | 3 | Available in 4 weeks | 286,00 € | AD801130 |
| 22 | 8 | 130 | 25 | 1 | 10 | M8x1,0 | 3 | Available in 4 weeks | 286,00 € | AD801135 |
| 25 | 8 | 130 | 25 | 0,25 | 10 | M8x1,0 | 3 | Available in 4 weeks | 299,00 € | AD801140 |
| 9,52 | 3,17 | 100 | 19,05 | 0,254 | 5,33 | 1/4-28 | 2 | Available in 4 weeks | 200,20 € | AD801145 |
| 10 | 3 | 100 | 19 | 0,25 | 5 | M6x1,0 | 2 | Available (2 pcs.) | 208,00 € | AD801005 |
| 12 | 3 | 100 | 19 | 0,5 | 6 | M6x1,0 | 2 | Available in 4 weeks | 215,80 € | AD801010 |
| 14 | 3 | 100 | 19 | 0,5 | 6 | M8x1,0 | 2 | Available in 4 weeks | 223,60 € | AD801015 |
| 17 | 4 | 100 | 20 | 0,75 | 7 | M8x1,0 | 2 | Available in 4 weeks | 236,60 € | AD801020 |
| 19 | 4,85 | 100 | 25 | 0,75 | 7 | M8x1,0 | 2 | Available (1 pcs.) | 236,60 € | AD801025 |
| 22 | 8 | 100 | 25 | 1 | 10 | M8x1,0 | 2 | Available in 4 weeks | 239,20 € | AD801030 |
| 25 | 8 | 100 | 25 | 0,25 | 10 | M8x1,0 | 2 | Available in 4 weeks | 257,40 € | AD801035 |
| 10 | 3 | 100 | 19 | 0,25 | 5 | M6x1,0 | 3 | Available (2 pcs.) | 249,60 € | AD801040 |
| 12 | 3 | 100 | 19 | 0,5 | 6 | M6x1,0 | 3 | Available in 4 weeks | 265,20 € | AD801045 |
