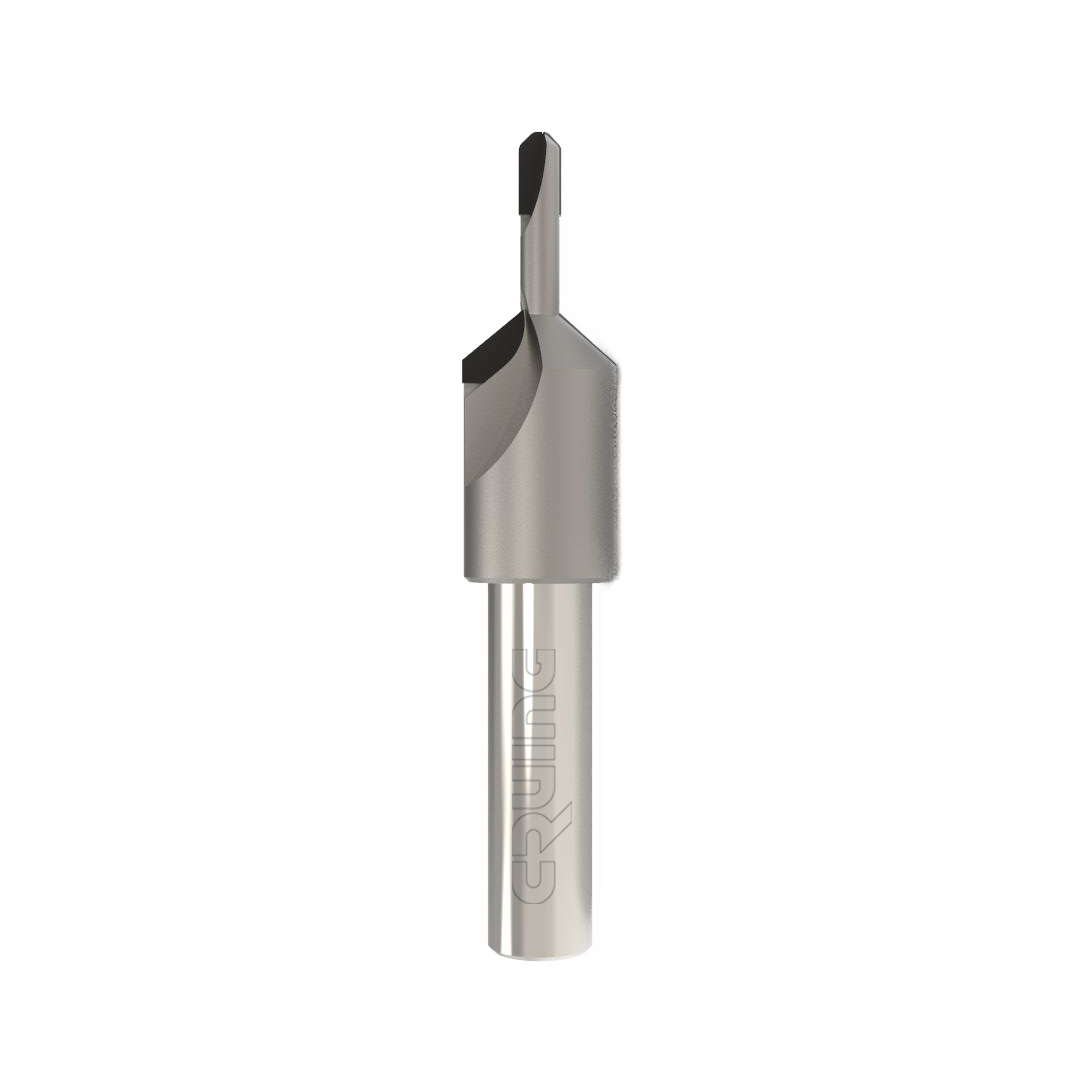

AeroDrill 101-V
1,00 €
Z2+2 PCD One-shot Drill & Countersink
ø: 3-16mm
Technical features
- Solid carbide body
- High density PCD cutting edges: 2+2
- Helix angle: 0°
- Cutting tolerance: +/- 0.01
- Balance: G2.5 < 1 gr/mm
- SShank form: HA (DIN 6535)
- Diameters: from 3.0 to 16.0 mm
- Available for 100° and 130° countersinking
- Through coolant from 4.0 mm
Applications
- Solid carbide straight fluted drill and countersink with 2 PCD cutting edges for CNC automated one-shot drilling and countersinking of CFRP and hard composite materials.

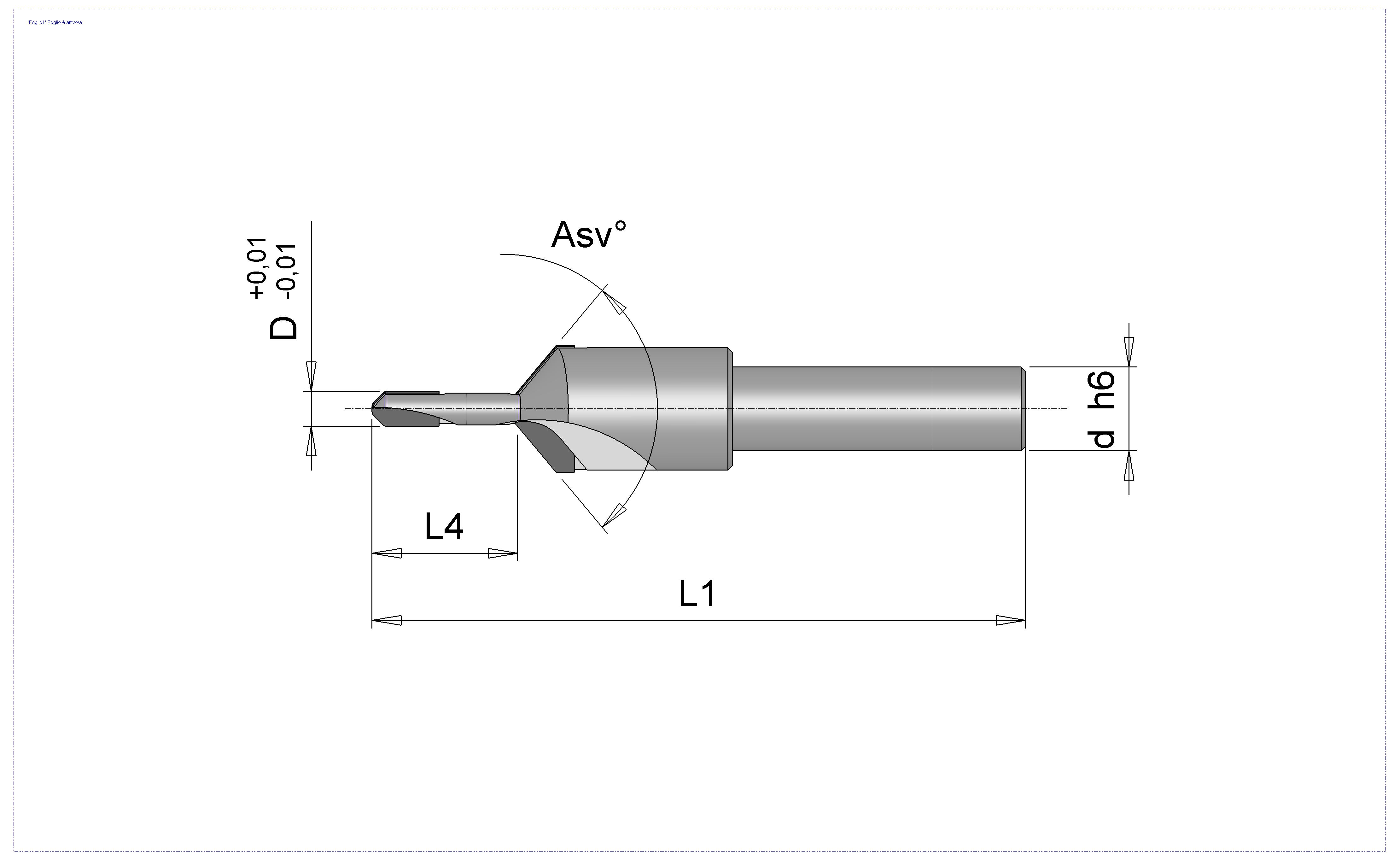

| D | L1 | L4 | ASV | Z | Stock | Price | Code |
|---|---|---|---|---|---|---|---|
| 3.00 - 4.00 | 80 | 30 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 4.01 - 6.00 | 90 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 6.01 - 8.00 | 100 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 8.01 - 10.00 | 100 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 10.01 - 12.00 | 100 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 12.01 - 14.00 | 100 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € | |
| 14.01 - 16.00 | 100 | 40 | 100° - 130° | 2+2 | Available in 4 weeks | 1,00 € |
