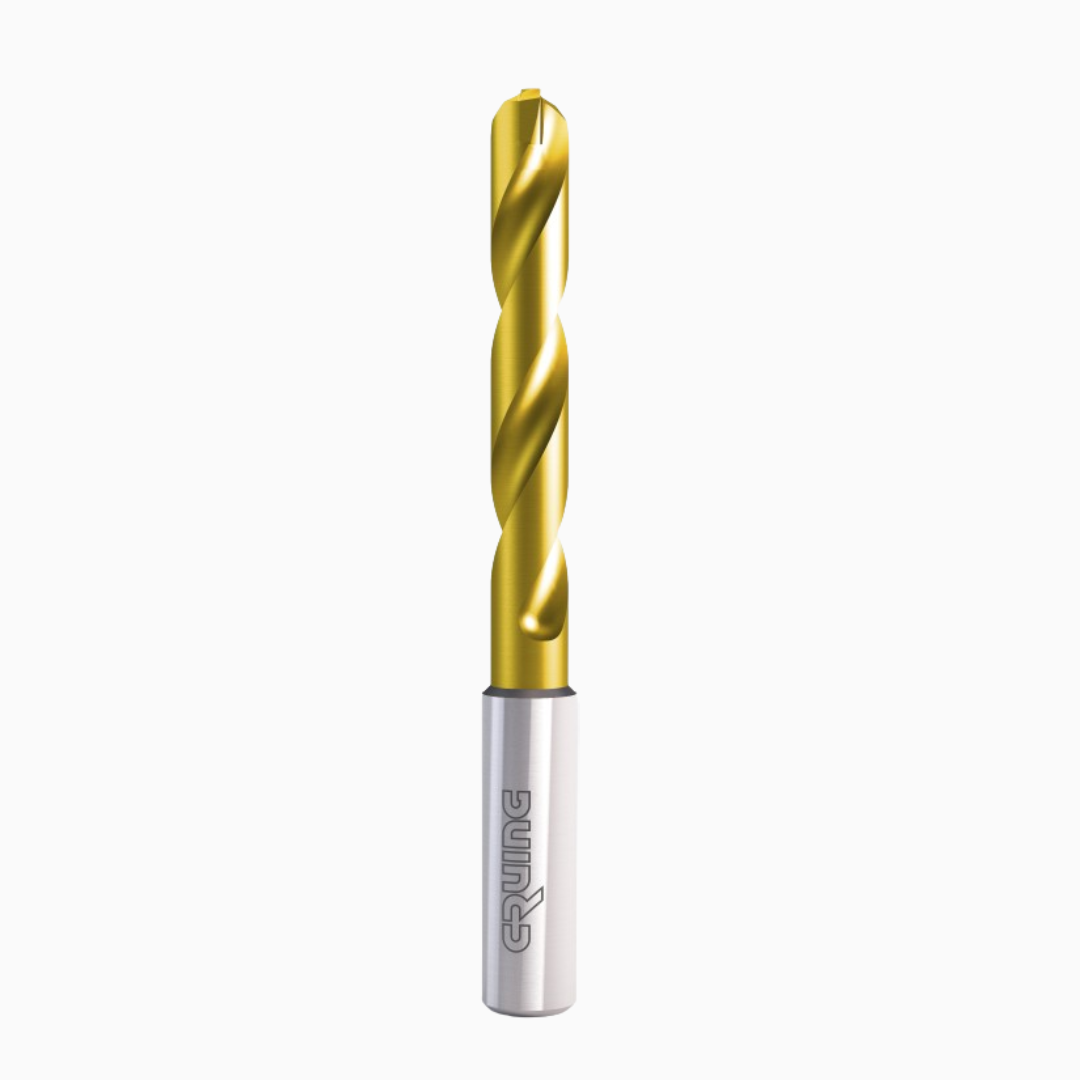

HSM-4xD
Price range: 6,10 € through 44,00 €
Suitable for general metalworking and critical cutting conditions
Technical features
- Hybrid drill
- Helix angle:25°
- Diameter range from 4.0 to 20.00 mm
- Steel body (HSS)
- Shank shape: DIN 6535 HA
- Coating: TIN
- Resharpenable: 2-3 times
Diameter Shank
-
- d6: from 9.0 mm to 8.0 mm
- d8: from 8.1 mm to 10.0 mm
- d10: from 10.1 mm to 12.0 mm
- d12: from 12.1 mm to 14.0 mm
- d14: from 16.2 mm to 18.0 mm
- d16: from 16.2 mm to 18.0 mm
- d18: from 18.2 mm to 20.0 mm

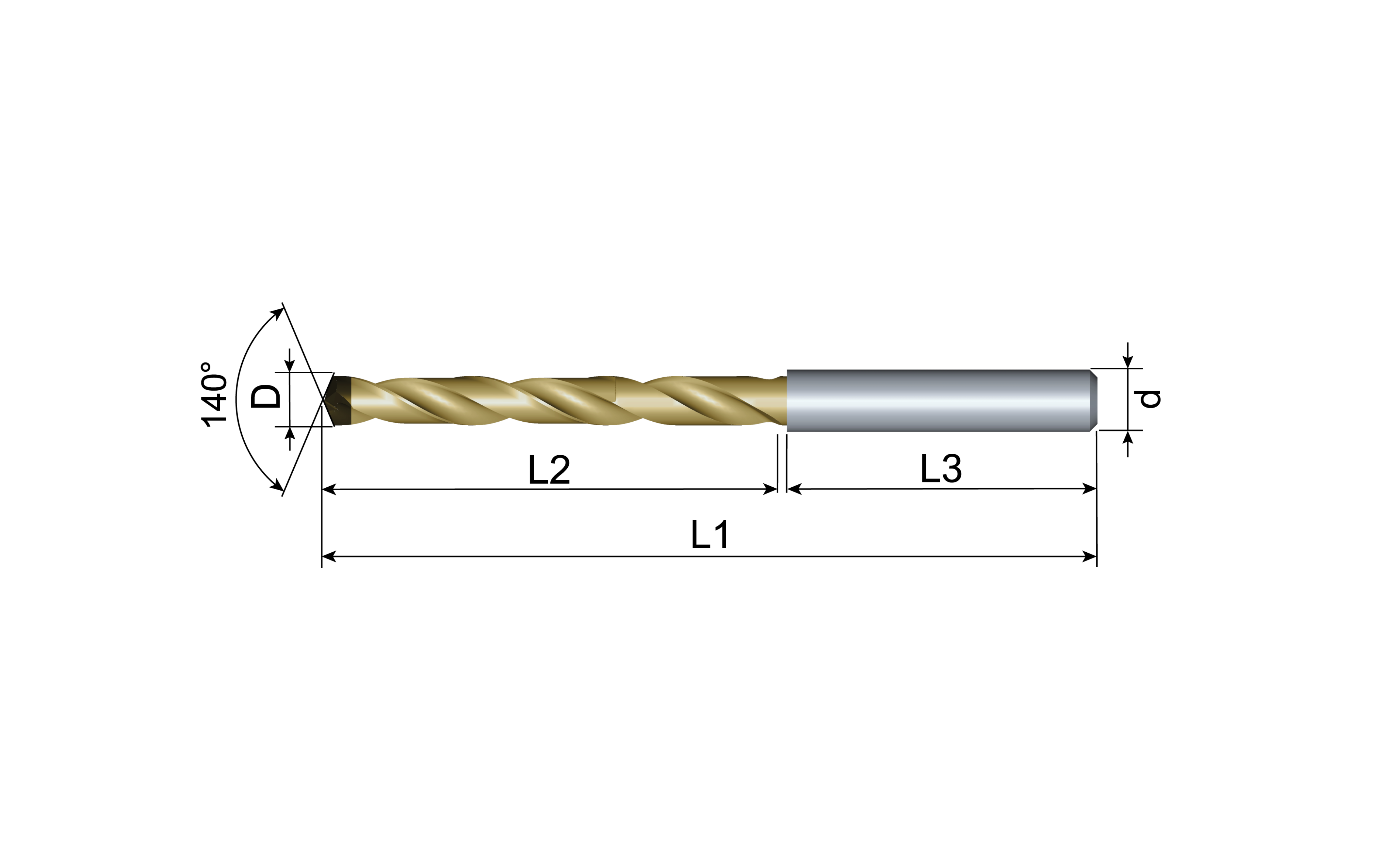

| d | D | L1 | L2 | L3 | Stock | Price | Code |
|---|---|---|---|---|---|---|---|
| d6 | 8 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0800-04D |
| d6 | 7,9 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0790-04D |
| d6 | 7,8 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0780-04D |
| d6 | 7,7 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0770-04D |
| d6 | 7,5 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0760-04D |
| d6 | 7,4 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0750-04D |
| d6 | 7,4 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0740-04D |
| d6 | 7,3 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0730-04D |
| d6 | 7,2 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0720-04D |
| d6 | 7,1 | 76 | 32 | 35 | Available in 4 weeks | 14,80 € | HSM400-0710-04D |
| d6 | 7 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0690-04D |
| d6 | 6,9 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400 |
| d6 | 6,8 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0680-04D |
| d6 | 6,7 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0670-04D |
| d6 | 6,6 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0660-04D |
| d6 | 6,5 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0650-04D |
| d6 | 6,4 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0640-04D |
| d6 | 6,3 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0630-04D |
| d6 | 6,2 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0620-04D |
| d6 | 6,1 | 76 | 32 | 35 | Available in 4 weeks | 13,50 € | HSM400-0610-04D |
| d6 | 6 | 66 | 24 | 35 | Available in 4 weeks | 10,10 € | HSM400-0600-04D |
| d6 | 5,9 | 66 | 24 | 35 | Available in 4 weeks | 10,10 € | HSM400-0590-04D |
| d6 | 5,8 | 66 | 24 | 35 | Available in 4 weeks | 10,10 € | HSM400-0580-04D |
| d6 | 5,7 | 66 | 24 | 35 | Available in 4 weeks | 10,10 € | HSM400-0570-04D |
| d6 | 5,6 | 66 | 24 | 35 | Available in 4 weeks | 10,10 € | HSM400-0560-04D |
| d6 | 5,5 | 66 | 24 | 35 | Available in 4 weeks | 9,40 € | HSM400-0550-04D |
| d6 | 5,4 | 66 | 24 | 35 | Available in 4 weeks | 9,40 € | HSM400-0540-04D |
| d6 | 5,3 | 66 | 24 | 35 | Available in 4 weeks | 9,40 € | HSM400-0530-04D |
| d6 | 5,2 | 66 | 24 | 35 | Available in 4 weeks | 9,40 € | HSM400-0520-04D |
| d6 | 5,1 | 66 | 24 | 35 | Available in 4 weeks | 9,40 € | HSM400-0510-04D |
| d6 | 5 | 66 | 24 | 35 | Available in 4 weeks | 8,10 € | HSM400-0500-04D |
| d6 | 4,9 | 66 | 24 | 35 | Available in 4 weeks | 8,10 € | HSM400-0490-04D |
| d6 | 4,8 | 66 | 24 | 35 | Available in 4 weeks | 8,10 € | HSM400-0480-04D |
| d6 | 4,7 | 66 | 24 | 35 | Available in 4 weeks | 8,10 € | HSM400-0470-04D |
| d6 | 4,6 | 66 | 24 | 35 | Available in 4 weeks | 7,80 € | HSM400-0460-04D |
| d6 | 4,5 | 66 | 24 | 35 | Available in 4 weeks | 7,80 € | HSM400-0450-04D |
| d6 | 4,4 | 66 | 24 | 35 | Available in 4 weeks | 6,80 € | HSM400-0440-04D |
| d6 | 4,3 | 66 | 24 | 35 | Available in 4 weeks | 6,80 € | HSM400-0430-04D |
| d6 | 4,2 | 66 | 24 | 35 | Available in 4 weeks | 6,10 € | HSM400-0420-04D |
| d6 | 4,1 | 66 | 24 | 35 | Available in 4 weeks | 6,10 € | HSM400-0410-04D |
| d6 | 4 | 66 | 24 | 35 | Available in 4 weeks | 6,10 € | HSM400-0400-04D |
| d8 | 10 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-1000-04D |
| d8 | 9,9 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0990-04D |
| d8 | 9,8 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0980-04D |
| d8 | 9,7 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0970-04D |
| d8 | 9,6 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0960-04D |
| d8 | 9,5 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0950-04D |
| d8 | 9,4 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400 |
| d8 | 9,3 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0930-04D |
| d8 | 9,2 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0920-04D |
| d8 | 9,1 | 89 | 40 | 40 | Available in 4 weeks | 19,90 € | HSM400-0910-04D |
| d8 | 9 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0900-04D |
| d8 | 8,9 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0890-04D |
| d8 | 8,8 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0880-04D |
| d8 | 8,6 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0860-04D |
| d8 | 8,5 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0850-04D |
| d8 | 8,4 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0840-04D |
| d8 | 8,3 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0830-04D |
| d8 | 8,2 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0820-04D |
| d8 | 8,1 | 89 | 40 | 40 | Available in 4 weeks | 18,20 € | HSM400-0810-04D |
| d10 | 10,5 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1070-04D |
| d10 | 10,9 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1090-04D |
| d10 | 10,8 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1080-04D |
| d10 | 10,6 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1060-04D |
| d10 | 10,5 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1050-04D |
| d10 | 10,4 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1040-04D |
| d10 | 10,3 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1030-04D | |
| d10 | 10,2 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1020-04D |
| d10 | 10,1 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1010-04D |
| d12 | 14 | 115 | 56 | 50 | Available in 4 weeks | 33,00 € | HSM400-1400-04D |
| d12 | 13,8 | 115 | 56 | 50 | Available in 4 weeks | 33,00 € | HSM400-1380-04D |
| d12 | 13,5 | 115 | 56 | 50 | Available in 4 weeks | 33,00 € | HSM400-1350-04D |
| d12 | 13,2 | 115 | 56 | 50 | Available in 4 weeks | 33,00 € | HSM400-1320-04D |
| d12 | 13 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1300-04D |
| d12 | 12,9 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1290-04D |
| d12 | 12,8 | 115 | 56 | 50 | Available in 4 weeks | 21,00 € | HSM400-1280-04D |
| d12 | 12,7 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1270-04D |
| d12 | 12,6 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1260-04D |
| d12 | 12,5 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1250-04D |
| d12 | 12,4 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1240-04D |
| d12 | 12,3 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1230-04D |
| d12 | 12,2 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1220-04D |
| d12 | 12,1 | 115 | 56 | 50 | Available in 4 weeks | 31,00 € | HSM400-1210-04D |
| d10 | 12 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1200-04D |
| d10 | 11,9 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1190-04D |
| d10 | 11,8 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1180-04D |
| d10 | 11,7 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1170-04D |
| d10 | 11,6 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1160-04D |
| d10 | 11,5 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1150-04D |
| d10 | 11,4 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1140-04D |
| d10 | 11,3 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1130-04D |
| d10 | 11,2 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1120-04D |
| d10 | 11,1 | 102 | 48 | 45 | Available in 4 weeks | 27,40 € | HSM400-1110-04D |
| d10 | 11 | 102 | 48 | 45 | Available in 4 weeks | 25,00 € | HSM400-1100-04D |
| d14 | 16 | 123 | 64 | 50 | Available in 4 weeks | 44,00 € | HSM400-1600-04D |
| d14 | 15,8 | 123 | 64 | 50 | Available in 4 weeks | 44,00 € | HSM400-1580-04D |
| d14 | 15,5 | 123 | 64 | 50 | Available in 4 weeks | 44,00 € | HSM400-1550-04D |
| d14 | 15,2 | 123 | 64 | 50 | Available in 4 weeks | 44,00 € | HSM400-1520-04D |
| d14 | 15 | 123 | 64 | 50 | Available in 4 weeks | 39,00 € | HSM400-1500-04D |
| d14 | 14,8 | 123 | 64 | 50 | Available in 4 weeks | 39,00 € | HSM400-1480-04D |
| d14 | 14,5 | 123 | 64 | 50 | Available in 4 weeks | 39,00 € | HSM400-1450-04D |
| d14 | 14,2 | 123 | 64 | 50 | Available in 4 weeks | 39,00 € | HSM400-1420-04D |
